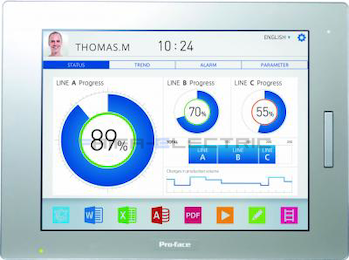

PFXSP5600TAD Graphic panel Pro-face by Schneider

PFXSP5600TAD

แบรนด์ : Pro-face สินค้า HMI ซีรีย์ : SP5000 Series

฿ 0

อัตราค่าจัดส่ง

จำนวน / Quantity

รายละเอียดสินค้า

Display Specifications

Display Type		TFT Color LCD
Display Size		12.1”
Resolution		1,024 x 768 pixels (XGA)
Effective Display Area		W245.8 x H184.3 mm (W9.68 x H7.26 in.)
Display Colors		262,144 colors
Backlight		White LED (Not user replaceable. When replacement is required, contact your local distributor.)
Backlight Service Life		50,000 hours or more (continuos operation at 25 °C [77 °F] before backlight brightness decreases to 50%
Brightness Control		0...100 (Adjusted with touch panel or software)
Touch Panel	Type	Resistive Film (analog)
	Resolution	1,024 x 1,024
	Service Life	1 million times or more

Electrical Specifications

Power Supply	Rated Input Voltage	12...24 Vdc
	Input Voltage Limits	10.8...28.8 Vdc
	Voltage Drop	12 Vdc: 1.25 ms or less 24 Vdc: 5 ms or less
	Power Consumption (Primary Power Supply [including power loss])	35W or less (display module with box module) 10W or less (display module only)
	In-Rush Current	30 A or less
Voltage Endurance		1,000 Vac, 20 mA for 1 minute (between charging and FG terminals)
Insulation Resistance		500 Vdc, 10 MΩ or more (between charging and FG terminals)

Environmental Specifications

International Safety Standard
Physical Environmen	Surrounding Air Temperature	0...60 °C (32...140 °F)
	Storage Temperature	-20...60 °C (-4...140 °F)
	Surrounding Air and Storage Humidity	10%...90% RH (Non condensing, wet bulb temperature 39 °C [102.2 °F] or less)
	Dust	0.1 mg/m3 (10-7 oz/ft3) or less (non-conductive levels)
	Pollution Degree	For use in Pollution Degree 2 environment
	Corrosive Gases	Free of corrosive gases
	Atmospheric Pressure (Operating Altitude)	800...1,114 hPa (2,000 m [6,561 ft] or lower)
Mechanical Environment	Vibration Resistance	IEC/EN 61131-2 compliant 5...9 Hz Single amplitude 3.5 mm (0.14 in.) 9...150 Hz Fixed acceleration: 9.8 m/s² X, Y, Z directions for 10 cycles (approx. 100 min.)
Mechanical Environment	Shock Resistance	IEC/EN 61131-2 compliant 147 m/s2, X, Y, Z directions for 3 times
Electrical Environment	Noise Immunity	Noise Voltage: 1,000 Vp-p Pulse Duration: 1 μs Rise Time: 1 ns (via noise simulator)
Electrical Environment	Electrostatic Discharge Immunity	Contact Discharge Method: 6 kV (IEC/EN 61000-4-2 Level 3)

NOTE: When using any of the options for this product, make sure to check the specifications for any special conditions or cautions that may apply to this product.

Memory

Application Memory	Screen Size: 64MB *SD card
Application Memory	Free Space: None
Backup Memory	NVRAM 320 KB
Control Memory	64KB

Interface Specifications(Box Module)

Serial Interface COM1	Asynchronous Transmission	RS-232C/422/485
	Data Length	7 or 8 bits
	Stop Bit	1 or 2 bits
	Parity	None, odd, or even
	Data Transmission Speed	2,400(1,200)...115,200 bps
	Connector	D-Sub 9 pin (plug)
Serial Interface COM2	Asynchronous Transmission	RS-232C/422/485
	Data Length	7 or 8 bits
	Stop Bit	1 or 2 bits
	Parity	None, odd, or even
	Data Transmission Speed	2,400(1,200)...115,200 bps, 187,500 bps(MPI)
	Connector	D-Sub 9 pin (plug)
USB (Type A) Interface	Connector	B 2.0 (Type A) x 2
	Power Supply Voltage	5 Vdc ±5%
	Maximum Current Supplied	500 mA/port
	Maximum Transmission Distance	5 m (16.4 ft)
USB (mini-B) Interface	Connector	USB 2.0 (mini-B) x 1
USB (mini-B) Interface	Maximum Transmission Distance	5 m (16.4 ft)
Ethernet Interface	Standard	IEEE802.3i/IEEE802.3u/IEEE802.3ab, 10BASE-T/100BASE-TX/1000BASE-T
Ethernet Interface	Connector	Modular jack (RJ-45) x 2
SD Card Interface	SD Card	SD Card Slot(System) x 1 SD Card Slot(Storage) x 1
CFast Card Interface	CFast Card	-
Expansion Unit Interface	Expansion Unit	Fieldbus Unit x 1
Video Interface	DVI-D	-
Video Interface	Connector	-
Sound Input Interface	Sound Input	-
Sound Input Interface	Connector	-
Sound Output Interface	Speaker Output	300 mW (Rated Load: 8 Ω, Frequency: 1 kHz)
	LINE Output	Rated load: 10 kΩ or more
	Connector	2-piece terminal block (AUX) x 1
AUX Output Interface	AUX Output	Alarm Output/Buzzer Output
	Rated Voltage	24 Vdc
	Rated Current	50 mA or less
	Connector	2-piece terminal block (AUX) x 1

Structural Specifications

Grounding	Functional grounding: Grounding resistance of 100 Ω, 2 mm² (AWG 14) or thicker wire, or your country’s applicable standard (same for FG and SG terminals).
Cooling Method	Natural air circulation
Structure *1	IP66F, IP67F, TYPE 4X (Indoor Use Only)/13 NOTE: The option is a front USB cover with screw manufactured by Pro-face (Model Number PFXZCDCVUS1).
External Dimensions(Display)	W315 x H241 x D67 mm (W12.4 x H9.49 x D2.64 in.)
External Dimensions(Box Module)	W188 x H131 x D45 mm (W7.4 x H5.16 x D1.77 in.)
Panel Cut Dimensions	W301.5 x H227.5 mm (W11.87 x H8.96 in.)2 Panel thickness area:1.6...5 mm (0.06...0.2 in.)3
Weight	3.2 kg (7.1 lb) or less (display) 0.9 kg [1.98 lb] or less (box)

The front face of this product, installed in a solid panel, has been tested using conditions equivalent to the standards shown in the specification.
For dimensional tolerance, everything +1/-0 mm (+0.04/-0 in.) and R in angle are below R3 (R0.12 in.)
Even if the installation wall thickness is within the recommended range for the “Panel Cut Dimensions”, depending on wall’s material, size, and installation location of this product and other devices, the installation wall could warp. To prevent warping, the installation surface may need to be strengthened.

External Dimensions

SP-5600TA

SP-5B10

Panel Cut-out

Note: Even if the installation wall thickness is within the recommended range for the “Panel Cut Dimensions”, depending on wall’s material, size, and installation location of this product and other devices, the installation wall could warp. To prevent warping, the installation surface may need to be strengthened.

ข้อมูลสินค้า

SP5000 Series Lineup / Specifications

Module Configuration

Premium Display	Advanced Display	Open Box	Power Box	Standard Box
Industry's top-class display with high display quality and versatile functions	Sophisticated display with high display quality	Enable to use Windows Applications via HMI	Reliable real-time OS installed in HMI High performance & Extended HMI	Reliable real-time OS installed in HMI High performance HMI
SP-5800WC, SP-5700WC, SP-5700TP, SP-5660TP, SP-5600TP, SP-5500TP	SP-5600TA, SP-5600WA, SP-5500WA, SP-5400WA	SP-5B41 (End of Sale: Apr 30, 2025) SP-5B411 SP-5B412	SP-5B10	SP-5B00
Specifications about Display Module		Specifications about Box Module

Display Module

Display Type	Product Name	Model No.	Display Size	Display Colors	Touch Panel Type	Front USB	Brightness Sensor	Auto Scaling	Details
Premium	SP-5800WC ^*1	PFXSP5800WCD	19" Wide (FWXGA)	16 million	Projected Capacitive (multi-touch)	Yes	Yes	Yes	Datasheet （PDF）
	SP-5700WC ^*1	PFXSP5700WCD	15" Wide (FWXGA)		Projected Capacitive (multi-touch)
	SP-5700TP	PFXSP5700TPD	15" (XGA)		Analog Resistive Film (multi-touch)
	SP-5660TP ^*2	PFXSP5660TPD	12" (XGA)
	SP-5600TP	PFXSP5600TPD	12" (XGA)
	SP-5500TP	PFXSP5500TPD	10" (SVGA)
Advanced	SP-5600TA	PFXSP5600TAD	12" (XGA)	262,144	Analog Resistive Film	No	No	No
	SP-5600WA	PFXSP5600WAD	12" Wide (WXGA)
	SP-5500WA	PFXSP5500WAD	10" Wide (WXGA)
	SP-5400WA	PFXSP5400WAD	7" Wide (WVGA)

*1SP-5800WC, SP-5700WC and SP-5600TA are not compatible with SP-5B40 (End of Sale: Mar. 30, 2018).

*2SP-5660TP is not compatible with SP-5B10 (Power Box) and SP-5B00 (Standard Box).

Box Module

Box Type		Product Name	Model No.	Windows Application	Expansion Unit	Sound Output	AUX Output	Details
Open	WES 7	SP-5B41 (End of Sale: Apr 30, 2025)	PFXSP5B41*	Yes	Yes	Yes	Yes	Datasheet （PDF）
	Windows 10 (HMI Runtime not inclueded)	SP-5B411
	Windows 10 (HMI Runtime inclueded)	SP-5B412
Power		SP-5B10 ^*3	PFXSP5B10	-
Standard		SP-5B00 ^*3	PFXSP5B00	-	-	-	-

*3SP-5B10 (Power Box) and SP-5B00 (Standard Box) are not compatible with SP-5660TP.

Display Module x Box Module

Screen Size	Product Name	Bright- ness Sensor/ Auto Scaling/ Front USB/ Multi- touch	Win- dows Apps	Video/ Sound	Remov- able System	CFast (Stor- age)	SD (Stor- age)	USB Type A	USB mini B	SIO	Ether -net	Rated Voltage	Details
19" Wide (FWXGA)	SP-5800WC + SP-5B411 / SP-5B412	Yes	Yes	Yes	Yes	x 1	x 1	x 4	x 2	x 2	x 2	12 to 24 Vdc	Display/ Box
	SP-5800WC + SP-5B10	Yes	-	-	Yes	-	x 1	x 3	x 2	x 2	x 2	12 to 24 Vdc	Display/ Box
	SP-5800WC + SP-5B00	Yes	-	-	-	-	x 1	x 3	x 2	x 2	x 2	12 to 24 Vdc	Display/ Box
15" Wide (FWXGA)	SP-5700WC + SP-5B411 / SP-5B412	Yes	Yes	Yes	Yes	x 1	x 1	x 4	x 2	x 2	x 2	12 to 24 Vdc	Display/ Box
	SP-5700WC + SP-5B10	Yes	-	-	Yes	-	x 1	x 3	x 2	x 2	x 2	12 to 24 Vdc	Display/ Box
	SP-5700WC + SP-5B00	Yes	-	-	-	-	x 1	x 3	x 2	x 2	x 2	12 to 24 Vdc	Display/ Box
15" (XGA)	SP-5700TP + SP-5B411 / SP-5B412	Yes	Yes	Yes	Yes	x 1	x 1	x 4	x 2	x 2	x 2	12 to 24 Vdc	Display/ Box
	SP-5700TP + SP-5B10	Yes	-	-	Yes	-	x 1	x 3	x 2	x 2	x 2	12 to 24 Vdc	Display/ Box
	SP-5700TP + SP-5B411 / SP-5B412	Yes	-	-	-	-	x 1	x 3	x 2	x 2	x 2	12 to 24 Vdc	Display/ Box
12" (XGA) Wireless LAN Model	SP-5660TP + SP-5B411 / SP-5B412	Yes	Yes	Yes	Yes	x 1	x 1	x 4	x 2	x 2	x 2	12 to 24 Vdc	Display/ Box
12" (XGA)	SP-5600TP + SP-5B411 / SP-5B412	Yes	Yes	Yes	Yes	x 1	x 1	x 4	x 2	x 2	x 2	12 to 24 Vdc	Display/ Box
	SP-5600TP + SP-5B10	Yes	-	-	Yes	-	x 1	x 3	x 2	x 2	x 2	12 to 24 Vdc	Display/ Box
	SP-5600TP + SP-5B00	Yes	-	-	-	-	x 1	x 3	x 2	x 2	x 2	12 to 24 Vdc	Display/ Box
12" (XGA)	SP-5600TA + SP-5B411 / SP-5B412	-	Yes	Yes	Yes	x 1	x 1	x 3	x 1	x 2	x 2	12 to 24 Vdc	Display/ Box
	SP-5600TA + SP-5B10	-	-	-	Yes	-	x 1	x 2	x 1	x 2	x 2	12 to 24 Vdc	Display/ Box
	SP-5600TA + SP-5B00	-	-	-	-	-	x 1	x 2	x 1	x 2	x 2	12 to 24 Vdc	Display/ Box
12" Wide (WXGA)	SP-5600WA + SP-5B411 / SP-5B412	-	Yes	Yes	Yes	x 1	x 1	x 3	x 1	x 2	x 2	12 to 24 Vdc	Display/ Box
	SP-5600WA + SP-5B10	-	-	-	Yes	-	x 1	x 2	x 1	x 2	x 2	12 to 24 Vdc	Display/ Box
	SP-5600WA + SP-5B00	-	-	-	-	-	x 1	x 2	x 1	x 2	x 2	12 to 24 Vdc	Display/ Box
10" (SVGA)	SP-5500TP + SP-5B411 / SP-5B412	Yes	Yes	Yes	Yes	x 1	x 1	x 4	x 2	x 2	x 2	12 to 24 Vdc	Display/ Box
	SP-5500TP + SP-5B10	Yes	-	-	Yes	-	x 1	x 3	x 2	x 2	x 2	12 to 24 Vdc	Display/ Box
	SP-5500TP + SP-5B00	Yes	-	-	-	-	x 1	x 3	x 2	x 2	x 2	12 to 24 Vdc	Display/ Box
10" Wide (WXGA)	SP-5500WA + SP-5B41	-	Yes	Yes	Yes	x 1	x 1	x 3	x 1	x 2	x 2	12 to 24 Vdc	Display/ Box
	SP-5500WA + SP-5B10	-	-	-	Yes	-	x 1	x 2	x 1	x 2	x 2	12 to 24 Vdc	Display/ Box
	SP-5500WA + SP-5B00	-	-	-	-	-	x 1	x 2	x 1	x 2	x 2	12 to 24 Vdc	Display/ Box
7" Wide (WVGA)	SP-5400WA + SP-5B411 / SP-5B412	-	Yes	Yes	Yes	x 1	x 1	x 3	x 1	x 2	x 2	12 to 24 Vdc	Display/ Box
	SP-5400WA + SP-5B10	-	-	-	Yes	-	x 1	x 2	x 1	x 2	x 2	12 to 24 Vdc	Display/ Box
	SP-5400WA + SP-5B00	-	-	-	-	-	x 1	x 2	x 1	x 2	x 2	12 to 24 Vdc	Display/ Box
