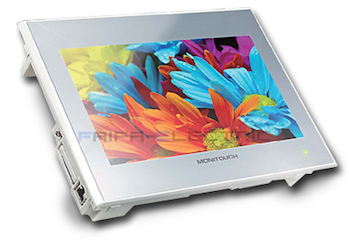

7 " 800x480 WVGA TFT 24 VDC V9 Series

Human Machine Interfaces, Monitouch V9 Series
Item# V9071IWRLD - V9 Adv. 10" WVGA TFT, 16.7M C, USBA&B(Mini), Built-in Ethernet x 2CH, Wireless, Capacitive, 24VDC

Monitouch V9 Series Information

The MONITOUCH V9 Series includes three line‑ups with the V9 Lite, V9 Standard, and the V9 Advanced, designed to replace the V8 Series while also offering step‑up features to satisfy the requirements of more advanced applications. Fuji Electric’s MONITOUCH Human Machine Interface (HMI) V9 series range in size from 5.7” to 15". All models in the V9 Series are UL Certified, and come standard with on‑board Ethernet ports and SD card slots, allowing for better connectivity to peripheral devices.

Specifications

Item Number:

V9071IWRLD

Brand:

Fuji

Item Category:

Human Machine Interface

Series:

Monitouch V9

Display Size:

7 Inches

Display Type:

Color TFT

Touch Screen:

Yes

Outdoor Viewable:

No

Screen Resolution:

800x480

Touch Region Resolution:

Analog

Communications:

USB;Serial;Ethernet

USB Ports:

(1) USB 2.0

Ethernet Ports:

(1) 10/100 Base T

Serial Ports:

(2) RS-232/RS-422/RS-485

PCMCIA:

No

Wireless LAN:

Yes

Tactile Pushbuttons:

No

Video Output Port:

No

Mounting:

Panel

Bezel:

Silver Plastic

Form Factor:

Standard

Volts DC:

24

Max. Power Consumption:

27 Watts

Operating System:

Dedicated OS

User Memory:

64 MB

Expandable Memory Option:

SD Card;USB Disk

Drivers:

Serial RS-232/RS-422/RS-485;Ethernet

Exposure Rating:

IP66;IP20

Operating Temperature:

32 to 122 Degrees F

Approvals:

UL;cUL;CE

H x W x D:

5.81 in x 7.94 in x 2.37 in
