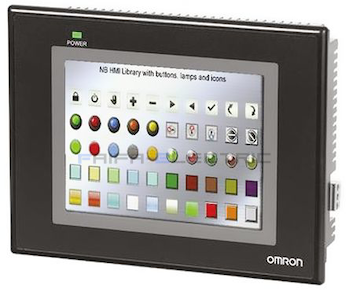

Touch screen HMI, 5.6 inch QVGA (320 x 234 pixel), TFT color, Ethernet + USB Host

แบรนด์ : Omron สินค้า HMI ซีรีย์ : NB Series

฿ 14500.00

อัตราค่าจัดส่ง

จำนวน / Quantity

รายละเอียดสินค้า

Touch screen HMI, 5.6 inch QVGA (320 x 234 pixel), TFT color, Ethernet + USB Host

Screen diagonal	5.6 in
Number of pixels, horizontal	320
Number of pixels, vertical	234
Type of display	TFT
Frame colour	Black
Number of Ethernet ports	1
Number of RS-232 ports	2
Number of RS-422 ports	1
Number of RS-485 ports	1
Number of USB ports	2
Number of colours of the display	65536
Number of grey-scales/blue-scales of display	64
Degree of protection (IP), front side	IP65
Width of the front	184 mm
Height of the front	142 mm
Width of panel cutout	172.4 mm
Height of panel cutout	131 mm
Built-in depth	46 mm
Product Weight (unpacked)	950 g

CP1W-CN221	USB Programming cable, A-type male to B-type male, 1.8 m
NB5Q-KBA04	Accessory HMI, protective sheets for NB5Q (5 sheets)
XW2Z-200T	Cable, RS-232C, for connecting NT HMI 9-pin port to PLC 9-pin port, 2 m
XW2Z-500T	Cable, RS-232C, for connecting NT HMI 9-pin port to PLC 9-pin port, 5 m

Product name	Specifications	Order code
NB3Q	3.5 inch, TFT LCD, Color, 320 × 240 dots	NB3Q-TW00B
NB3Q	3.5 inch, TFT LCD, Color, 320 × 240 dots, USB Host, Ethernet	NB3Q-TW01B
NB5Q	5.6 inch, TFT LCD, Color, 320 × 234 dots	NB5Q-TW00B
NB5Q	5.6 inch, TFT LCD, Color, 320 × 234 dots, USB Host, Ethernet	NB5Q-TW01B
NB7W	7 inch, TFT LCD, Color, 800 × 480 dots	NB7W-TW00B
	7 inch, TFT LCD, Color, 800 × 480 dots, USB Host, Ethernet	NB7W-TW01B
	7 inch, TFT LCD, Color, 800 × 480 dots, Ethernet only	NB7W-TW11B
NB10W	10.1 inch, TFT LCD, Color, 800 × 480 dots, USB Host, Ethernet	NB10W-TW01B

Product name	Specifications	Model
Software	Supported Operating Systems: Windows 10, Windows 8.1, Windows 8, Windows 7, Windows Vista®, Windows XP (SP3 or higher). Note: Except for Windows XP 64-bit version Download from Omron's regional websites.	NB-Designer *
NB-to-PLC Connecting cable	For NB to PLC via RS-232C (CP/CJ/CS), 2 m	XW2Z-200T
	For NB to PLC via RS-232C (CP/CJ/CS), 5 m	XW2Z-500T
	For NB to PLC via RS-422A/485, 2 m	NB-RSEXT-2M
Display protective sheets	For the NB3Q contains 5 sheets	NB3Q-KBA04
	For the NB5Q contains 5 sheets	NB5Q-KBA04
	For the NB7W contains 5 sheets	NB7W-KBA04
	For the NB10W contains 5 sheets	NB10W-KBA04
Attachment	Mounting bracket for NT31/NT31C series to NB5Q series	NB5Q-ATT01

Specifications	NB3Q		NB5Q		NB7W		NB10W
Specifications	TW00B	TW01B	TW00B	TW01B	TW00B	TW01B	TW01B
Display type	3.5 inch TFT LCD		5.6 inch TFT LCD		7 inch TFT LCD		10.1 inch TFT LCD
Display resolution (H×V)	320×240		320×234		800×480		800×480
Number of colors	65,536
Backlight	LED
Backlight lifetime	50,000 hours of operating time at the normal temperature (25 ° C) 1
Touch panel	Analog resistive membrane, resolution 1024×1024, life: 1 million touch operations
Dimensions in mm (H×W×D)	103.8×129.8×52.8		142×184×46		148×202×46		210.8×268.8×54.0
Weight	310 g max.	315 g max.	620 g max.	625 g max.	710 g max.	715 g max.	1,545 g max.

Specifications	NB3Q		NB5Q		NB7W		NB10W
Specifications	TW00B	TW01B	TW00B	TW01B	TW00B	TW01B	TW01B
Internal memory	128MB (including system area)
Memory interface	−	USB Memory	−	USB Memory	−	USB Memory	USB Memory
Serial (COM1)	RS-232C/422A/485 (not isolated), Transmission distance: 15m Max. (RS-232C), 500m Max. (RS-422A/485), Connector: D-Sub 9-pin		RS-232C, Transmission distance: 15 m Max., Connector: D-Sub 9-pin
Serial (COM2)	−		RS-232C/422A/485 (not isolated), Transmission distance: 15m Max. (RS-232C), 500m Max. (RS-422A/485), Connector: D-Sub 9-pin
USB Host	Equivalent to USB 2.0 full speed, type A, Output power 5V, 150mA
USB Slave	Equivalent to USB 2.0 full speed, type B, Transmission distance: 5m
Printer connection	PictBridge support
Ethernet	−	10/100 base-T	−	10/100 base-T	−	10/100 base-T	10/100 base-T

Specifications	NB3Q		NB5Q		NB7W		NB10W
Specifications	TW00B	TW01B	TW00B	TW01B	TW00B	TW01B	TW01B
Line voltage	20.4 to 27.6 VDC (24 VDC −15 to 15%)
Power consumption	5 W	9 W	6 W	10 W	7 W	11 W	14 W
Battery lifetime	5 years (at 25 ° C)
Enclosure rating (front side)	Front operation part: IP65 (Dust proof and drip proof only from the front of the panel)
Obtained standards	EC Directives, KC, cUL508
Operating environment	No corrosive gases.
Noise immunity	Compliant with IEC61000-4-4, 2KV (Power cable)
Ambient operating temperature	0 to 50 ° C
Ambient operating humidity	10% to 90% RH (without condensation)
