24 VDC inputs, 8 x relay outputs 2 A, 2K steps program + 2K words data memory CP1E-E20SDR-A 20 Relay 0 AC 0 0 20 0 USB None PLC, 100-240 VAC supply, 12 x 24 VDC inputs, 8 x relay outputs 2 A, 2K steps

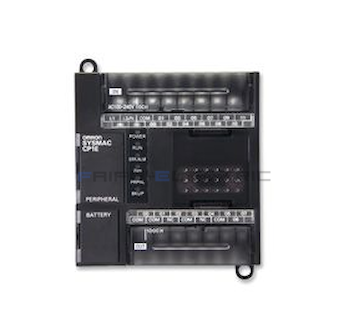

CP1E-E20SDR-A
อัตราค่าจัดส่ง
รายละเอียดสินค้า
Specifications
| Supply voltage type | AC |
| Number of digital inputs | 12 |
| Input type | PNP/NPN |
| Number of digital outputs | 8 |
| Output type | Relay |
| Program capacity | 2 K steps |
| Data memory capacity | 2 K words |
| Logic execution time | 1.19 µs |
| Communication port(s) | USB |
| Number of Ethernet ports | 0 |
| Number of USB ports | 1 |
| Number of RS-232 ports | 0 |
| Number of RS-485 ports | 0 |
| Communication option(s) | None |
| Max. encoder input frequency | 10 kHz |
| Max. number of PTP axes | 0 |
| Max. pulse output frequency | 0 kHz |
| Function Block programming | |
| Battery-free memory backup | |
| Real-time clock | |
| Analog option boards | |
| Max. number of analog I/O channels | 0 |
| Max. number of local I/O points | 20 |
| Max. number of expansion units | 0 |
| Built-in auxiliary 24 VDC output | 0 mA |
| Operating temperature range | 0-55 °C |
| Height | 90 mm |
| Width | 86 mm |
| Depth | 79 mm |
| Product Weight (unpacked) | 370 g |
ข้อมูลสินค้า
