Covered type, 100 to 240 VAC, Power rating 75 W, Output: 24 V, Terminal block facing forward (Screw terminal), Harmonic current emissions

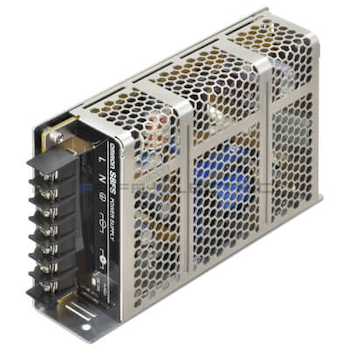

S8FS-C07524J

แบรนด์ : Omron ซีรีย์ : S8FS-C

สอบถามสินค้า

อัตราค่าจัดส่ง

จำนวน / Quantity

รายละเอียดสินค้า

Specifications

Type	Metal frame
Mounting method	Direct mounting
Phase	Single
Power output	75 W
Efficiency	87 %
Output voltage	24 V
Rated output current	3.2 A
Temperature range	-20-60 °C
Features	Terminal block facing forward
Terminal	Screw
Communication port(s)	None
Alarm function	-
Number of output branches	1
Rated supply voltage at AC 50 Hz	100-240 V
Allowable supply voltage AC	85-264 V
Allowable supply voltage DC	120-370 V
Width	97 mm
Height	38 mm
Depth	159 mm

ข้อมูลสินค้า

S8FS-C

High reliability at a reasonable price

The S8FS-C Lite family of metal framed power supplies is our best standard power supply for material cost reduction. S8FS-C has high reliability. The range covers up to 350 W and is available with 5, 12, 15, 24, 36 or 48 VDC output voltages.

Wide range in wattage (15, 25, 35, 50, 75, 100, 150, 200, 350 W) and DC-output voltage (5, 12, 15, 24, 36 or 48 VDC)
Wide input ranges: 100 to 120 VAC and 200 to 240 VAC
Overload, over-voltage and short circuit protection
Easy mounting to DIN-rail with mounting brackets (sold separately)
Global standards: Conforms to CE (all models), approved for UL (all models) and CCC (15 to 150 W models)
EMI EN 55011 Class B compliant (15 to 150 W models)

S8FS-C

Power rating	Input voltage	Output voltage (VDC)	Output current	Built- in fan	Model with terminal block facing upward	Model with terminal block facing forward	Model wtih DIN rail
15 W	100 to 240 VAC (allowable range: 85 to 264 VAC or 120 to 370 VDC *1)	5 V	3 A	None	--	S8FS-C01505J	S8FS-C01505D
		12 V	1.3 A			S8FS-C01512J	S8FS-C01512D
		15 V	1 A			S8FS-C01515J	S8FS-C01515D
		24 V	0.7 A			S8FS-C01524J	S8FS-C01524D
25 W		5 V	5 A		S8FS-C02505	S8FS-C02505J	S8FS-C02505D
		12 V	2.1 A		S8FS-C02512	S8FS-C02512J	S8FS-C02512D
		15 V	1.7 A		S8FS-C02515	S8FS-C02515J	S8FS-C02515D
		24 V	1.1 A		S8FS-C02524	S8FS-C02524J	S8FS-C02524D
35 W		5 V	7 A		S8FS-C03505	S8FS-C03505J	S8FS-C03505D
		12 V	3 A		S8FS-C03512	S8FS-C03512J	S8FS-C03512D
		15 V	2.4 A		S8FS-C03515	S8FS-C03515J	S8FS-C03515D
		24 V	1.5 A		S8FS-C03524	S8FS-C03524J	S8FS-C03524D
50 W		5 V	10 A		S8FS-C05005	S8FS-C05005J	S8FS-C05005D
		12 V	4.2 A		S8FS-C05012	S8FS-C05012J	S8FS-C05012D
		15 V	3.4 A		S8FS-C05015	S8FS-C05015J	S8FS-C05015D
		24 V	2.2 A		S8FS-C05024	S8FS-C05024J	S8FS-C05024D
		48 V	1.1 A		S8FS-C05048	S8FS-C05048J	S8FS-C05048D
75 W		5 V	14 A		S8FS-C07505	S8FS-C07505J	S8FS-C07505D
		12 V	6.2 A		S8FS-C07512	S8FS-C07512J	S8FS-C07512D
		15 V	5 A		S8FS-C07515	S8FS-C07515J	S8FS-C07515D
		24 V	3.2 A		S8FS-C07524	S8FS-C07524J	S8FS-C07524D
		48 V	1.6 A		S8FS-C07548	S8FS-C07548J	S8FS-C07548D
100 W	100 to 120 VAC, 200 to 240 VAC (allowable range: 85 to 132 VAC, 176 to 264 VAC, or 248 to 373 VDC (Select with the switch.) *2)	5 V	20 A		S8FS-C10005	S8FS-C10005J	S8FS-C10005D
		12 V	8.5 A		S8FS-C10012	S8FS-C10012J	S8FS-C10012D
		15 V	7 A		S8FS-C10015	S8FS-C10015J	S8FS-C10015D
		24 V	4.5 A		S8FS-C10024	S8FS-C10024J	S8FS-C10024D
		36 V	2.8 A		S8FS-C10036	S8FS-C10036J	S8FS-C10036D
		48 V	2.3 A		S8FS-C10048	S8FS-C10048J	S8FS-C10048D
150 W	100 to 120 VAC, 200 to 240 VAC (allowable range: 90 to 132 VAC, 180 to 264 VAC, or 254 to 373 VDC (Select with the switch.) *2)	5 V	26 A		S8FS-C15005	S8FS-C15005J	S8FS-C15005D
		12 V	12.5 A		S8FS-C15012	S8FS-C15012J	S8FS-C15012D
		15 V	10 A		S8FS-C15015	S8FS-C15015J	S8FS-C15015D
		24 V	6.5 A		S8FS-C15024	S8FS-C15024J	S8FS-C15024D
		36 V	4.3 A		S8FS-C15036	S8FS-C15036J	S8FS-C15036D
		48 V	3.3 A		S8FS-C15048	S8FS-C15048J	S8FS-C15048D
200 W		5 V	40 A		S8FS-C20005	S8FS-C20005J	S8FS-C20005D
		12 V	17 A		S8FS-C20012	S8FS-C20012J	S8FS-C20012D
		24 V	8.8 A		S8FS-C20024	S8FS-C20024J	S8FS-C20024D
		36 V	5.9 A		S8FS-C20036	S8FS-C20036J	S8FS-C20036D
		48 V	4.43 A		S8FS-C20048	S8FS-C20048J	S8FS-C20048D
350 W		5 V	60 A	Yes	S8FS-C35005	S8FS-C35005J	S8FS-C35005D
		12 V	29 A		S8FS-C35012	S8FS-C35012J	S8FS-C35012D
		24 V	14.6 A		S8FS-C35024	S8FS-C35024J	S8FS-C35024D
		36 V	9.7 A		S8FS-C35036	S8FS-C35036J	S8FS-C35036D
		48 V	7.32 A		S8FS-C35048	S8FS-C35048J	S8FS-C35048D

Note: You can use brackets that are sold separately to mount the Power Supplies to DIN Rail. Refer to Mounting Brackets
(Order Separately) on Data Sheet.
*1. The range for compliance with EC Directives and safety standards (UL, EN, etc.) is 100 to 240 VAC.
*2. The range for compliance with EC Directives and safety standards (UL, EN, etc.) is 100 to 120 VAC, 200 to 240 VAC.

Mounting Brackets (Order Separately)

Power rating	Mounting direction	Model
15 W	DIN Rail	S82Y-FSC015DIN
25 W		S82Y-FSC025DIN
35 W		S82Y-FSC050DIN
50 W		S82Y-FSC050DIN
75 W		S82Y-FSC150DIN
100 W
150 W
200 W		S82Y-FSC350DIN
350 W		S82Y-FSC350DIN
15 W	Bottom-mounting to DIN Rail	S82Y-FSC015DIN-S
25 W		S82Y-FSC025DIN-S
35 W		S82Y-FSC035DIN-S
50 W		S82Y-FSC050DIN-S
75 W		S82Y-FSC100DIN-S
100 W		S82Y-FSC100DIN-S
150 W		S82Y-FSC150DIN-S
200 W	Bottom-mounting with L-brackets	S82Y-FSC350B (4 brackets)
350 W	Bottom-mounting with L-brackets	S82Y-FSC350B (4 brackets)

DIN Rail (Order Separately)

Mounting Rail (Material: Aluminum)

Model
PFP-100N
PFP-50N

Mounting Rail (Material: Aluminum)

Model
PFP-100N2

End Plate

Model
PFP-M

Note: 1. If there is a possibility that the Power Supply will be subject to vibration or shock, use a steel DIN Rail. Otherwise,
              metallic filings may result from aluminum abrasion.
          2. If there is a possibility of the Power Supply sliding sideways, place an End Plate (PFP-M) on each end of the
                Power Supply.

Terminal Cover (Order Separately)

Terminal block direction	Power rating	Applicable models	Terminal Cover model number
Models with terminal block facing upward	25-W	S8FS-C025[][]	S82Y-FSC-C5
	35-W	S8FS-C035[][]
	50-W	S8FS-C050[][]
	75-W	S8FS-C075[][]
	100-W	S8FS-C100[][]	S82Y-FSC-C7
	150-W	S8FS-C150[][]	S82Y-FSC-C7
	200-W	S8FS-C200[][]	S82Y-FSC-C9
	350-W	S8FS-C350[][]	S82Y-FSC-C9
Models with terminal block facing forward	15-W	S8FS-C015[][]J/D	S82Y-FSC-C5MF
	25-W	S8FS-C025[][]J/D	S82Y-FSC-C5F
	35-W	S8FS-C035[][]J/D
	50-W	S8FS-C050[][]J/D
	75-W	S8FS-C075[][]J/D
	100-W	S8FS-C100[][]J/D	S82Y-FSC-C7F
	150-W	S8FS-C150[][]J/D	S82Y-FSC-C7F
	200-W	S8FS-C200[][]J/D	S82Y-FSC-C9F
	350-W	S8FS-C350[][]J/D	S82Y-FSC-C9F
