PFXST6500TADE
PFXST6500TADE

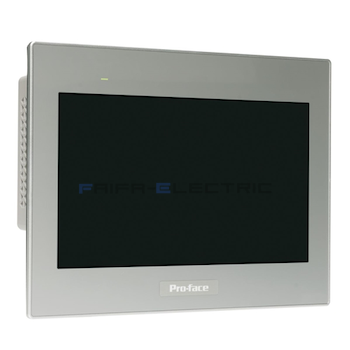

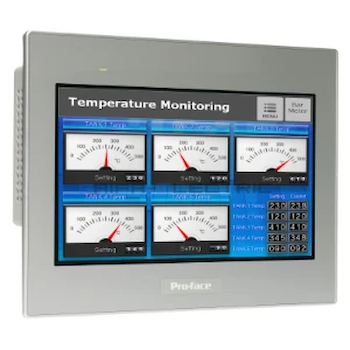

PFXST6500TADE, ST6500T VGA TFT (800 x 600 Pixels) TFT Color LCD (10.4-inch)

PFXST6500TADE

HMI
อัตราค่าจัดส่ง

รายละเอียดสินค้า

Functional Specifications

Display Type
TFT Color LCD
Display Size
(10.4-inch)
Effective Display Area
211.2 x 158.4 mm (8.31 x 6.24 in)
Backlight
Backlight White LED (Not user replaceable. When replacement is required, contact
customer support.)
Brightness Control
16 levels (Adjusted with touch panel or software)
Backlight Service Life
50,000 hours or more (continuous operation at 25 °C [77 °F] before backlight brightness
decreases to 25%)
Touch Panel Type
Resistive film (analog, single touch)
Touch Panel Resolution
1024 x 1024
Serial (COM1)
Asynchronous Transmission: RS-232C, Data Length: 7 or 8 bits, Stop Bit: 1 or 2 bits,
Parity: None, Even or Odd, Data Transmission Speed: 2,400 to 115,200 bps, Connector:
D-Sub 9 (plug)
Serial (COM2)
Asynchronous Transmission: RS-422/485, Data Length: 7 or 8 bits, Stop Bit: 1 or 2 bits,
Parity: None, Even or Odd, Data Transmission Speed: 2,400 to 115,200 bps, Connector:
D-Sub 9 (plug)
Ethernet (LAN1)
IEEE802.3i/IEEE802.3u, 10BASE-T/100BASE-TX, Connector: Modular jack (RJ-45) x 1
USB (TYPE-A)
Conforms to USB 2.0 (Type A) x 1 Power supply voltage: 5 Vdc ±5 % Output Current:
500 mA/port Maximum transmission distance : 5 m [16.4 ft.]
USB (mini-B)
Conforms to USB 2.0 (micro-B) x 1, Maximum transmission distance : 5 m [16.4 ft]
SD Card
up to 32 GB

General Specifications

International Safety Standards
Rated Input Voltage
24 Vdc
Input Voltage Limits
19.2 to 28.8 Vdc
Allowable Voltage Drop
10 ms or less
Power Consumption
Max. 10.56 W
When power is not supplied to external devices: 7.51 W or less
When screen turns off the backlight (standby mode): 4.56 W or less
In-Rush Current: 30A or less
In-Rush Current
30 A or less
Voltage Endurance
1,000 Vac, 20 mA for 1 minute (between charging and FG terminals)
Insulation Resistance
500 Vdc, 10 MΩ or more
Storage Temperature
-20 to 60 °C (-4 to 140 °F)
Dust
0.1 mg/m3 (10-7 oz/ft3) or less (non-conductive levels)
Pollution Degree
For use in pollution degree 2 environment
Vibration Resistance
IEC/EN 61131-2 compliant, 5 to 9 Hz single amplitude 3.5 mm [0.14 in.], 9 to 150 Hz fixed acceleration: 9.8 m/s2, X, Y, Z directions for 10 cycles (approx. 100 min.)
Noise Immunity
Noise Voltage : 1,000 Vp-p
Pulse Duration : 1 µs
Rise Time : 1 ns
(via noise simulator)
Structure
IP65F, UL 50/50E, Type 1, Type 4X (indoor use only), Type 13 (on the front panel when properly installed in an enclosure)
Cooling Method
Natural air circulation
Weight Approx.
1.8 kg (3.97 lb) or less
External Dimensions
315 x 241 x 55.3 mm (12.4 x 9.49 x 2.18 in)
Panel Cut Dimensions
301.5 x 277.5 mm (11.87 x 8.96 in) Panel thickness area: 1.6...5 mm (0.06...0.2 in)

External Dimensions

Panel Cut-Out

A B C
 301.5 mm (+1/-0 mm)
(11.87 in [+0.04/-0 in])		 250 mm (+1/-0 mm)
(9.84 in [+0.04/-0 in])		 1.6...5 mm
(0.06...0.2 in)



ข้อมูลสินค้า

ST6000 Series Lineup / Specifications

ST6000_lineup_BLUE_hame
Display Size Product Name Model No Color Touch Panel Interface Software Details

15" Wide (FWXGA)		 ST-6700WA

PFXST6700WAD

 16 million colors Resistive film (analog) COM1: RS-232C
COM2: RS-422/485
Ethernet x 2
USB Type A x 1
USB micro-B x 1		 BLUE Specifications

12" Wide (WXGA)		 ST-6600WA PFXST6600WAD Specifications

10" Wide (WSVGA)		 ST-6500WA PFXST6500WAD Specifications

7" Wide (WVGA)		 ST-6400WA PFXST6400WAD Specifications

4" Wide (WQVGA)		 ST-6200WA PFXST6200WAD COM1: RS-232C/422/485
Ethernet x 1
USB Type A x 1
USB micro-B x 1		 Specifications
