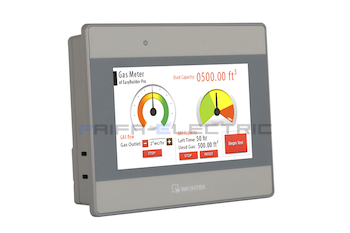

MT8053iE

Weintek 4.3" HMI, plastic housing, 480x272, 600MHz RISC CPU. Ports: serial, USB & 2 x Ethernet. EasyAccess 2.0 included.

MT8053iE

HMI
อัตราค่าจัดส่ง

รายละเอียดสินค้า

Hardware specifications of the MT8050iE HMI:

  • 4.3" wide screen TFT display (16.7M colors)
  • Resolution: 480 x 272 pixels
  • Brightness: 400 cd/m²
  • Contrast ratio: 500:1
  • Touch screen: Analog resistive
  • Processor: 600MHz 32-bit RISC
  • Project & Firmware size limit: 22.5MB
  • History size limit: 16MB
  • PLC interface: RS232/485, 1 x 10/100/1000 Mbps Ethernet, 1 x 10/100 Mbps Ethernet
  • USB ports:
    - 1 USB 2.0 host port
      (for connection of keyboard, mouse, barcode scanner, printer, etc.)
    EasyAccess 2.0 included.
  • Real Time Clock / Calendar
  • Power supply: Isolated 24 VDC input
  • Enclosure: Plastic
  • Mounting: Panel mount
Weintek 4.3" HMI, plastic housing, 480x272, 600MHz RISC CPU. Ports: serial, USB & 2 x Ethernet. EasyAccess 2.0 included.

ข้อมูลสินค้า


Model
MT8051iE
MT8053iE
MT8070iE
MT8071iE
MT8102iE
Display
Touch Panel Memory
Processor I/O Port
RTC
Power
Specification
Environment
Certificate
Software
Display
4.3” TFT
4.3” TFT
7” TFT
10.1” TFT
Resolution
480 x 272
480 x 272
800 x 480
1024 x 600
Brightness (cd/ ㎡ )
400
400
400
350
Contrast Ratio
500: 1
500: 1
800: 1
500: 1
Backlight Type
LED
LED
LED
LED
Backlight Life Time
>30,000 hrs.
>30,000 hrs.
>30,000 hrs.
50,000 hrs.
Colors
16.7M
16.7M
16.7M
16.7M
LCD Viewing Angle
(T/B/L/R)
50/70/70/70
50/70/70/70
80/60/80/80
70/70/80/80
Pixel Pitch (mm)
0.198(H) x 0.198(V)
0.198(H) x 0.198(V)
0.1926(H) x 0.179(V)
0.2175(H) x 0.2088(V)
Type
4-wire Resistive Type
4-wire Resistive Type
4-wire Resistive Type
4-wire Resistive Type
Accuracy
Active Area Length(X)±2%, Width(Y)±2%
Active Area Length(X)±2%, Width(Y)±2%
Active Area Length(X)±2%, Width(Y)±2%
Active Area Length(X)±2%, Width(Y)±2%
Flash
128 MB
128 MB
128 MB
128 MB
RAM
128 MB
128 MB
128 MB
128 MB

32-bit RISC 600MHz
32-bit RISC 600MHz
32-bit RISC 600MHz
32-bit RISC 600MHz
USB Host
USB 2.0 x 1
USB 2.0 x 1
USB 2.0 x 1
USB 2.0 x 1
Ethernet
10/100 Base-T x 1
LAN 1: 10/100/1000 Base-T x 1
LAN 2: 10/100 Base-T x 1
10/100 Base-T x 1
10/100 Base-T x 1
COM Port
COM1: RS-232/RS-485 2W/4W COM3: RS-485 2W
COM1: RS-232/RS-485 2W/4W COM3: RS-485 2W
COM1: RS-232/RS-485 2W/4W
COM3: RS-485 2W
COM1: RS-232
COM2: RS-485 2W/4W COM3: RS-485 2W
Con.A: COM1 RS-485 2W, COM2 RS-485 2W/4W, COM3 RS-485 2W/4W*1
Con.B: COM1 RS-232 / COM3 RS-232*2
RS-485 Dual Isolation
N/A
N/A
Yes
N/A
N/A

Built-in
Built-in
Built-in
Built-in
Input Power
22~28VDC
22~28VDC
24±20%VDC
24±20%VDC
Power Isolation
Built-in
Built-in
N/A
Built-in
Built-in
Power Consumption
450mA@24VDC
450mA@24VDC
350mA@24VDC
450mA@24VDC
650mA@24VDC
Voltage Resistance
500VAC (1 min.)
500VAC (1 min.)
500VAC (1 min.)
500VAC (1 min.)
Isolation Resistance
Exceed 50MΩ @ 500VDC
Exceed 50MΩ @ 500VDC
Exceed 50MΩ @ 500VDC
Exceed 50MΩ @ 500VDC
PCB Coating
Yes
Yes
Yes
Yes
Enclosure
Plastic
Plastic
Plastic
Plastic
Dimensions WxHxD
128 x 102 x 32 mm
128 x 102 x 32 mm
200.3 x 146.3 x 34 mm
271 x 213 x 36.4 mm
Panel Cutout
119 x 93 mm
119 x 93 mm
192 x 138 mm
260 x 202 mm
Weight
Approx. 0.25 kg
Approx. 0.25 kg
Approx. 0.6 kg
Approx. 1 kg
Mount
Panel mount
Panel mount
Panel mount
Panel mount
Protection Structure
UL Type 4X (indoor use only) / NEMA4 /
IP65 Compliant Front Panel
UL Type 4X (indoor use only) / NEMA4 /
IP65 Compliant Front Panel
UL Type 4X (indoor use only) / NEMA4 /
IP65 Compliant Front Panel
UL Type 4X (indoor use only)*3/ NEMA4 /
IP65 Compliant Front Panel
Storage Temperature
-20° ~ 60° C (-4° ~ 140° F)
-20° ~ 60° C (-4° ~ 140° F)
-20° ~ 60° C (-4° ~ 140° F)
-20° ~ 60° C (-4° ~ 140° F)
Operating
Temperature
0° ~ 45° C (32° ~ 113° F)
0° ~ 45° C (32° ~ 113° F)
0° ~ 50° C (32° ~ 122° F)
0° ~ 50° C (32° ~ 122° F)
Relative Humidity
10% ~ 90% (non-condensing)
10% ~ 90% (non-condensing)
10% ~ 90% (non-condensing)
10% ~ 90% (non-condensing)
Vibration Endurance
10 to 25Hz
(X, Y, Z direction 2G 30 minutes)
10 to 25Hz
(X, Y, Z direction 2G 30 minutes)
10 to 25Hz
(X, Y, Z direction 2G 30 minutes)
10 to 25Hz
(X, Y, Z direction 2G 30 minutes)
CE
CE marked
CE marked
CE marked
CE marked
UL
cULus Listed
cULus Listed
cULus Listed
cULus Listed (UL 61010-2-201)*3
ATEX
N/A
N/A
N/A
ATEX Zone 2/22
Category 3 G/D
N/A
Weincloud
EasyAccess 2.0 (Optional)
EasyAccess 2.0 (Built-in)
EasyAccess 2.0 (Optional)
EasyAccess 2.0 (Optional)
EasyAccess 2.0 (Optional)
*1 MT8102iE: COM3 RS-485 4W will not be available when COM1 RS-485 2W is used.
*2 MT8102iE: Only Tx & Rx (no RTS/CTS) may be used for COM1 RS-232 when COM3 RS-232 is also used.
*3 MT8102iE: For customers who require UL, please order MT8102iEU. (MT8102iE is not UL listed.)
Series
Model
MT8090XE
MT8121XE3
Display
Display
9.7” TFT
12.1” IPS
Resolution
1024 x 768
1024 x 768
Brightness (cd/ ㎡ )
350
500
Contrast Ratio
500: 1
1000: 1
Backlight Type
LED
LED
Backlight Life Time
>30,000 hrs.
>30,000 hrs.
Colors
262K
16.7M
LCD Viewing Angle
(T/B/L/R)
60/70/70/70
89/89/89/89
Pixel Pitch (mm)
0.192(H) x 0.192(V)
0.24(H) x 0.24(V)
Touch Panel
Type
4-wire Resistive Type
4-wire Resistive Type
Accuracy
Active Area Length(X)±2%, Width(Y)±2%
Active Area Length(X)±2%, Width(Y)±2%
Memory
Flash
512 MB
256 MB
RAM
256 MB
256 MB
Processor

32-bit RISC 1GHz
32-bit RISC 1GHz
I/O Port
SD Card Slot
N/A
SD/SDHC
USB Host
USB 2.0 x 1
USB 2.0 x 1
USB Client
N/A
USB 2.0 x 1
Ethernet
10/100 Base-T x 1
10/100 Base-T x 1
COM Port
Con.A: COM2 RS-485 2W/4W, COM3 RS-485 2W Con.B: COM1 RS-232
COM1: RS-232/RS-485 2W/4W, COM3: RS-485 2W
RS-485 Dual Isolation
N/A
Yes
Audio Output
N/A (Supports USB Audio)
N/A (Supports USB Audio)
RTC

Built-in
Built-in
Power
Input Power
24±20%VDC
24±20%VDC
Power Isolation
Built-in
Built-in
Power Consumption
500mA@24VDC
1.5A@24VDC
Voltage Resistance
500VAC (1 min.)
500VAC (1 min.)
Isolation Resistance
Exceed 50MΩ @ 500VDC
Exceed 50MΩ @ 500VDC
Specification
PCB Coating
Yes
Yes
Enclosure
Plastic
Plastic
Dimensions WxHxD
260.6 x 203.1 x 36.5 mm
317 x 243 x 41 mm
Panel Cutout
250 x 192 mm
305 x 231 mm
Weight
Approx. 0.85 kg
Approx. 1.7 kg
Mount
Panel mount, VESA mount 75 x 75 mm
Panel mount, VESA mount 75 x 75 mm
Environment
Protection Structure
NEMA4 / IP65 Compliant Front Panel
NEMA4 / IP65 Compliant Front Panel
Storage Temperature
-20° ~ 60° C (-4° ~ 140° F)
-20° ~ 60° C (-4° ~ 140° F)
Operating
Temperature
0° ~ 50° C (32° ~ 122° F)
0° ~ 50° C (32° ~ 122° F)
Relative Humidity
10% ~ 90% (non-condensing)
10% ~ 90% (non-condensing)
Vibration Endurance
10 to 25Hz (X, Y, Z direction 2G 30 minutes)
10 to 25Hz (X, Y, Z direction 2G 30 minutes)
Certificate
CE
CE marked
CE marked
ATEX
ATEX Zone 2/22 Category 3 G/D
N/A
Software
Weincloud
EasyAccess 2.0 (Optional)
EasyAccess 2.0 (Optional)
