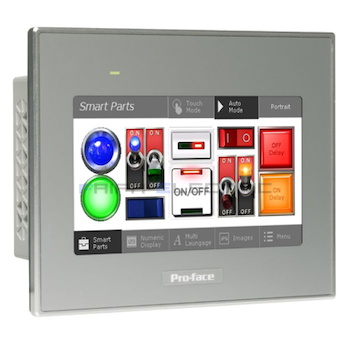

PFXST6200WADE (GP-Pro EX) : จอทัชสกรีน HMI 4.3" RS-232C/422/485, USB 2.0, 24VCD - Proface - Touch Screen

PFXST6200WADE

แบรนด์ : Pro-face สินค้า HMI ซีรีย์ : ST6000

฿ 12000.00

อัตราค่าจัดส่ง

จำนวน / Quantity

รายละเอียดสินค้า

Display Type	TFT Color LCD
Display Size	(4.3-inch) Wide
Resolution	WQVGA TFT (480 x 272 Pixels)
Effective Display Area	95.04 x 53.86 mm (3.74 x 2.12 in)
Display Colors	16 million colors
Backlight	Backlight White LED (Not user replaceable. When replacement is required, contact customer support.)
Brightness Control	16 levels (Adjusted with touch panel or software)
Application Memory	PFXST6200WAD When using BLUE:FLASH EPROM 128MB Removable System: No PFXST6200WADE When using GP-Pro EX: - Media: FLASH EPROM - Screen Area: 64MB Use the screen area when the user font area's capacity is exceeded - for example, when an image font or a picture font is used. - User Font Area: 8MB - Logic Program Area: 132KB (Equivalent to 15,000 steps) Up to 60,000 steps can be converted in software. However, this reduces application memory capacity (for screen data) by 1 MB. - Free Space: None Removable System: No
Touch Panel Resolution	1024 x 1024
Ethernet (LAN)	IEEE802.3i/IEEE802.3u, 10BASE-T/100BASETX, Connector: Modular jack (RJ-45) x 1
USB (TYPE-A)	Connector: USB 2.0 (Type A) x 1, Power supply voltage: 5 Vdc ±5 %, Maximum current supplied: 500 mA, Communication distance: 5 m [16.4 ft.]

Display Type

TFT Color LCD

Display Size

(4.3-inch) Wide

Resolution

WQVGA TFT (480 x 272 Pixels)

Effective Display Area

95.04 x 53.86 mm (3.74 x 2.12 in)

Display Colors

16 million colors

Backlight

Backlight White LED (Not user replaceable. When replacement is required, contact customer support.)

Brightness Control

16 levels (Adjusted with touch panel or software)

Application Memory

PFXST6200WAD
When using BLUE:FLASH EPROM 128MB
Removable System: No

PFXST6200WADE
When using GP-Pro EX:
- Media: FLASH EPROM
- Screen Area: 64MB *Use the screen area when the user font area's capacity is exceeded - for example, when an image font or a picture font is used.
- User Font Area: 8MB
- Logic Program Area: 132KB (Equivalent to 15,000 steps) *Up to 60,000 steps can be converted in software. However, this reduces application memory capacity (for screen data) by 1 MB.
- Free Space: None
Removable System: No

Touch Panel Resolution

1024 x 1024

Ethernet (LAN)

IEEE802.3i/IEEE802.3u, 10BASE-T/100BASETX, Connector: Modular jack (RJ-45) x 1

USB (TYPE-A)

Connector: USB 2.0 (Type A) x 1, Power supply voltage: 5 Vdc ±5 %, Maximum current supplied: 500 mA, Communication distance: 5 m [16.4 ft.]

ข้อมูลสินค้า

ST6000 Series Lineup / Specifications

Display Size	Product Name	Model No	Color	Touch Panel	Interface	Software	Details
15" Wide (FWXGA)	ST-6700WA	PFXST6700WAD	16 million colors	Resistive film (analog)	COM1: RS-232C COM2: RS-422/485 Ethernet x 2 USB Type A x 1 USB micro-B x 1	BLUE	Specifications
12" Wide (WXGA)	ST-6600WA	PFXST6600WAD					Specifications
10" Wide (WSVGA)	ST-6500WA	PFXST6500WAD					Specifications
7" Wide (WVGA)	ST-6400WA	PFXST6400WAD					Specifications
4" Wide (WQVGA)	ST-6200WA	PFXST6200WAD			COM1: RS-232C/422/485 Ethernet x 1 USB Type A x 1 USB micro-B x 1		Specifications
