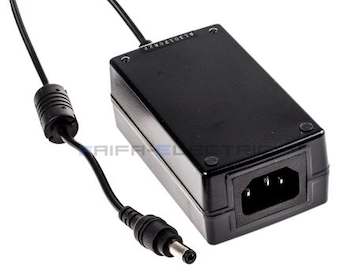

AC-DC Desktop adaptor; Output 24Vdc at 1.04A; Input connector IEC320-C14; GS25A24-P1J is succeeded by GST25A24-P1J.
GS25A24-P1J
อัตราค่าจัดส่ง
รายละเอียดสินค้า
| Technical data | Information | ||
|---|---|---|---|
|
Brand
|
Mean Well
|
Commodity
|
8504409090
|
|
Item number
|
GS25A24-P1J
|
Warranty pack
|
24 Months Bring-In
|
|
Series
|
GS25A
|
RoHS
|
Compliant
|
|
Description
|
AC-DC Desktop adaptor; Output 24Vdc at 1.04A; Input connector IEC320-C14; GS25A24-P1J is succeeded by GST25A24-P1J.
|
Packing quantity
|
60
|
|
Application
|
ITE EN/UL/IEC 60950
|
Net weight (gram)
|
190
|
|
Technology
|
AC/DC
|
Alternative item number
|
GST25A24-P1J
|
|
Power Format
|
Desktop
|
Life cycle status
|
Discontinued
|
|
Output Power (W)
|
25
|
||
|
Output Voltage (V)
|
24
|
||
|
Output Current (A)
|
1.04
|
||
|
Input Voltage (V)
|
110/230 universal input
90 - 264
|
||
|
IP Rating
|
No IP assigned
|
||
|
Width (mm)
|
54
|
||
|
Height (mm)
|
36
|
||
|
Depth (mm)
|
93
|
||
|
Dimming Technology
|
No Dimming
|
||
