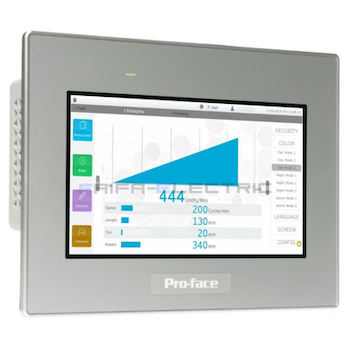

PFXST6400WAD, 7"W touch panel display, 2COM, 2Ethernet, USB host&device, 24VDC

แบรนด์ : Pro-face สินค้า HMI ซีรีย์ : ST6000

฿ 22000

อัตราค่าจัดส่ง

จำนวน / Quantity

รายละเอียดสินค้า

Series ST6000 Series

Size 7″ Wide (WVGA)

Model PFXST6400WAD

Global Code PFXST6400WAD

Product Features 7″ DC Analog

16 million colors

Resistive film (analog)

COM1: RS-232C, COM2: RS-422/485, Ethernet x 2, USB Type A x 1, USB micro-B x 1

Repair Status ✔

Input voltage limits 19.2 to 28.8 Vdc

Display Type	TFT Color LCD
Display Size	(7.0-inch) Wide
Resolution	WVGA TFT (800 x 480 Pixels)
Effective Display Area	154.08 x 85.92 mm (6.07 x 3.38 in)
Display Colors	16 million colors
Backlight	Backlight White LED (Not user replaceable. When replacement is required, contact customer support.)
Brightness Control	16 levels (Adjusted with touch panel or software)
Application Memory	PFXST6400WAD When using BLUE:FLASH EPROM 128MB Removable System: No PFXST6400WADE When using GP-Pro EX: - Media: FLASH EPROM - Screen Area: 64MB Use the screen area when the user font area's capacity is exceeded - for example, when an image font or a picture font is used. - User Font Area: 8MB - Logic Program Area: 132KB (Equivalent to 15,000 steps) Up to 60,000 steps can be converted in software. However, this reduces application memory capacity (for screen data) by 1 MB. - Free Space: None Removable System: No
Touch Panel Type	Resistive film (analog, single touch)
Touch Panel Resolution	1024 x 1024
Ethernet (LAN)	IEEE802.3i/IEEE802.3u, 10BASE-T/100BASE-TX, Connector: Modular jack (RJ-45) x 2
USB (TYPE-A)	Connector: USB 2.0 (Type A) x 1, Power supply voltage: 5 Vdc ±5 %, Maximum current supplied: 500 mA, Communication distance: 5 m [16.4 ft.]

International Safety Standards
Rated Input Voltage	24 Vdc
Input Voltage Limits	19.2 to 28.8 Vdc
Allowable Voltage Drop	5 ms or less
Power Consumption	5.5 W or less when power is not supplied to devices via fron USB, 3.6 W or less when screen turns off the backlight (standby mode) (Max 9 W)
In-Rush Current	30 A or less
Voltage Endurance	1,000 Vac, 20 mA for 1 minute (between charging and FG terminals)
Insulation Resistance	500 Vdc, 10 MΩ or more
Surrounding Air Temperature	0 to 50 °C (32 to 122 °F)
Dust	0.1 mg/m3 (10-7 oz/ft3) or less (non-conductive levels)
Pollution Degree	For use in pollution degree 2 environment
Vibration Resistance	IEC/EN 61131-2 compliant, 5 to 9 Hz single amplitude 3.5 mm [0.14 in.], 9 to 150 Hz fixed acceleration: 9.8 m/s2, X, Y, Z directions for 10 cycles (approx. 100 min.)
Structure	IP65F, Type 1, Type 4X (indoor use only), Type 13 (on the front panel when properly installed in an enclosure
Cooling Method	Natural air circulation
Weight Approx.	0.8kg (1.76 lb) or less
External Dimensions	208 x 153 x 45 mm (8.19 x 6.02 x 1.77 in)

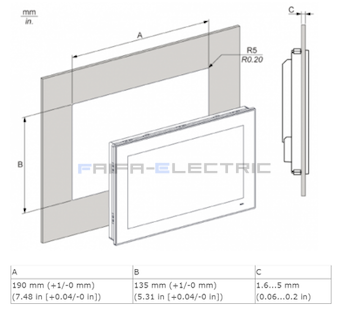

Panel Cut Dimensions	190 x 135 mm (7.48 x 5.31 in) Panel thickness area: 1.6...5 mm (0.06...0.2 in)

A	B	C
190 mm (+1/-0 mm) (7.48 in [+0.04/-0 in])	135 mm (+1/-0 mm) (5.31 in [+0.04/-0 in])	1.6...5 mm (0.06...0.2 in)

Display Size	Product Name	Model No	Color	Touch Panel	Interface	Software	Details
15" Wide (FWXGA)	ST-6700WA	PFXST6700WAD	16 million colors	Resistive film (analog)	COM1: RS-232C COM2: RS-422/485 Ethernet x 2 USB Type A x 1 USB micro-B x 1	BLUE	Specifications
12" Wide (WXGA)	ST-6600WA	PFXST6600WAD					Specifications
10" Wide (WSVGA)	ST-6500WA	PFXST6500WAD					Specifications
7" Wide (WVGA)	ST-6400WA	PFXST6400WAD					Specifications
4" Wide (WQVGA)	ST-6200WA	PFXST6200WAD			COM1: RS-232C/422/485 Ethernet x 1 USB Type A x 1 USB micro-B x 1		Specifications
