X67DM1321.L12

B&R Automation X67DM1321.L12 16 digital channels, configurable as inputs or outputs using software, inputs with additional functions

X67DM1321.L12

อัตราค่าจัดส่ง

รายละเอียดสินค้า

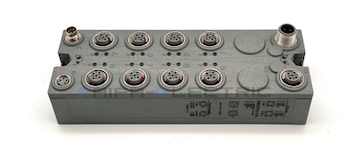

B&R Automation X67DM1321.L12 X67 Digital Mixed Module

Insulation voltage between channel and bus 500 Veff
Nominal voltage 24 VDC
B&R ID code 0x1A1D
Sensor/Actuator power supply 0.5 A summation current
Status indicators I/O function per channel, supply voltage, bus function
Diagnostics
Outputs Yes, using LED status indicator and software
I/O power supply Yes, using LED status indicator and software
Connection type
X2X Link M12, B-coded
Inputs/Outputs 8x M12, A-coded
I/O power supply M8, 4-pin
Power consumption
Internal I/O 3 W
X2X Link power supply 0.75 W
Certifications
CE Yes
UKCA Yes
ATEX Zone 2, II 3G Ex nA IIA T5 Gc
IP67, Ta = 0 - Max. 60°C
TÜV 05 ATEX 7201X
UL cULus E115267
Industrial control equipment
HazLoc cCSAus 244665
Process control equipment
for hazardous locations
Class I, Division 2, Groups ABCD, T5
KC Yes
