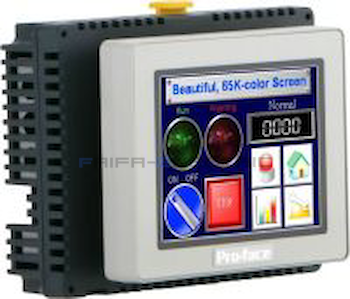

PFXGM4201TAD, 3.5", 65,536-color TFT, QVGA, Serial I/F, USB TypeA, miniB, Ethernet, DC24V
PFXGM4201TAD
อัตราค่าจัดส่ง
รายละเอียดสินค้า
Standard product information
|
Family
|
HMI
|
|
Series
|
GP4000M Series
|
|
Size
|
3"
|
|
Model
|
PFXGM4201TAD
|
|
Global Code
|
PFXGM4201TAD
|
|
Product Features
|
Modular 3" DC Analog
|
|
Repair Status
|
- (Maintenance service is not available. Replace with a new unit under warranty.)
|
Display specifications
|
Display type
|
TFT Color LCD
|
|
Display size
|
3.5"
|
|
Resolution
|
320 x 240 pixels (QVGA)
|
|
Effective display area
|
W70.56 x H52.92 mm [W2.78 x H2.08 in.]
|
|
Display colors
|
65,536 colors
|
|
Backlight
|
White LED (Not user replaceable. When replacement is required, contact your local distributor.)
|
|
Backlight service life
|
50,000 hrs. or more (each in continuous operation at 25 °C [77 °F] before backlight brightness decreases to 50%)
|
|
Brightness control
|
16 Levels (Adjusted with touch panel or software)
|
|
Touch panel type
|
Resistive Film (analog)
|
|
Touch panel lifetime
|
1,000,000 times or more
|
|
Language fonts
|
Japanese: 6,962 (JIS Standards 1 & 2) (including 607 non-kanji characters), ANK: 158 (Korean, Traditional Chinese, Simplified Chinese, Thai and Cyrillic can be added from the font setting of the screen editor. )
|
|
Character sizes
|
Standard font: 8 x 8, 8 x 16, 16 x 16 and 32 x 32 pixel fonts, Stroke font: 6 to 127 pixel fonts, Image font: 8 to 72 pixel fonts
|
|
Font sizes
|
Standard font: Width can be expanded up to 8 times. Height can be expanded up to 8 times.*1
|
|
8 x 8 dots
|
40 char. x 30 rows
|
|
8 x 16 dots
|
40 char. x 15 rows
|
|
16 x 16 dots
|
20 char. x 15 rows
|
|
32 x 32 dots
|
10 char. x 7 rows
|
Other font sizes can be set up with the Editor software.
Electrical specifications
|
Rated input voltage
|
24 Vdc
|
|
Input voltage limits
|
20.4 to 28.8 Vdc
|
|
Allowable voltage drop
|
10 ms or less
|
|
Power consumption
|
6.5 W or less
|
|
In-rush current
|
30 A or less
|
|
Noise immunity
|
IEC61000-4-4, 2kV Power port, 1kV Signal ports
|
|
Voltage endurance
|
1,000 Vac, 20 mA for 1 minute (between power terminal and FG terminals)
|
|
Insulation resistance
|
500 Vdc, 10 MΩ or more (between power terminal and FG terminals)
|
Environmental specifications
|
International safety standards
|
CE, UKCA, UL,cUL (508) Listed, ANSI/CSA (UL508+1604) Listed, ATEX, Marine DNV, EAC, KC, C-Tick
|
|
Surrounding air temperature
|
0 to 50 °C [32 to 122 °F]*1
|
|
Storage temperature
|
-20 to +60 °C [-4 to 140 °F]
|
|
Ambient humidity
|
85 % RH (Wet bulb temperature: 39 °C [102.2 °F] max. - no condensation)
|
|
Storage humidity
|
10% to 90% RH (Non condensing, wet bulb temperature 39 °C [102.2 °F] or less)
|
|
Dust
|
0.1 mg/m3 (10-7 oz/ft3) or less (non-conductive levels)
|
|
Pollution degree
|
For use in Pollution Degree 2 environment
|
|
Corrosive gases
|
Free of corrosive gases
|
|
Air pressure (altitude range)
|
800 to 1,114 hPa (2,000 m [6,561 ft.] above sea level or less)
|
|
Vibration resistance
|
IEC/EN 61131-2 compliant, 5 to 9 Hz single amplitude 3.5 mm [0.14 in.]
|
|
Electrostatic discharge immunity
|
IEC61000-4-2, 6 kV direct contact, 8 kV air contact
|
|
Drop resistance
|
IEC/EN 61131-2 compliant, 147 m/s2, x,y,z 3 directions
|
When using in an environment where the temperature becomes or exceeds 40 °C for an extended period of time, the screen contrast level may decrease from its original level of brightness.
Memory
|
Application memory
|
When using GP-Pro EX:
- Media: FLASH EPROM - Screen Area: 8MB *Use the screen area when the user font area's capacity is exceeded - for example, when an image font or a picture font is used. - User Font Area: None - Logic Program Area: 132KB (Equivalent to 15,000 steps) *Up to 60,000 steps can be converted in software. However, this reduces application memory capacity (for screen data) by 1 MB. - Free Space: None Removable System: No*1 |
|
Backup memory
|
|
|
Clock accuracy
|
Uses the clock of an external device*3
|
Use the screen area when the user font area's capacity is exceeded - for example, when an image font or a picture font is used.
Up to 60,000 steps can be converted in software. However, this reduces application memory capacity (for screen data) by 1 MB.
Up to 60,000 steps can be converted in software. However, this reduces application memory capacity (for screen data) by 1 MB.
Application memory can provide 128KB for Data Backup. For further information, please refer to the GP-Pro EX reference manual.
Set up the “Clock Updates“ feature with the Editor software. Please refer to the GP-Pro EX reference manual “Common” - “Clock Update Settings” for details.
Interface specifications
|
Serial (COM1)
|
Asynchronous Transmission: RS-232C / 422 / 485, Data Length: 7 or 8 bits, Stop Bit: 1 or 2 bits, Parity: None, Even or Odd, Data Transmission Speed: 2,400 to 115,200 bps, 187,500 bps (MPI), Connector: D-Sub 9 pin (plug)
|
|
USB (Type A)
|
Conforms to USB 2.0 (Type A) x 1
Power supply voltage: 5 Vdc ±5 % Communication distance: 3 m [9.84 ft.] or less |
|
USB (mini-B)
|
Conforms to USB 2.0 (mini-B) x 1, Communication Distance: 5 m [16.4 ft] or less
|
|
Ethernet
|
IEEE802.3i / IEEE802.3u, 10BASE-T / 100BASE-TX, Connector: Modular jack (RJ-45) x 1
|
Structural specifications
|
Grounding
|
Functional grounding: Grounding resistance of 100 Ω, 2 mm2 (AWG 14) or thicker wire, or your country’s applicable standard (same for FG and SG terminals).
|
|
Cooling method
|
Natural air circulation
|
|
Structure
|
NEMA#250 TYPE 4X (indoor, installed in an enclosure)
Display module: IP65F Rear module: IP20 |
|
Weight
|
0.36 kg [0.80 lb] or less
|
Dimensions
|
External dimensions
|
ข้อมูลสินค้า
| GP-4100 Series | GP4104G1D | PFXGP4104G1D | 3.4-inch Compact Type. Interface: Ethernet. Display Colors: Monochrome Green/Red/Orange. Power Supply: DC. |
| GP4104W1D | PFXGP4104W1D | 3.4-inch Compact Type. Interface: Ethernet. Display Colors: Monochrome White/Red/Pink. Power Supply: DC. | |
| GP4105G1D | PFXGP4105G1D | 3.4-inch Compact Type. Interface: RS-232C. Display Colors: Monochrome Green/Red/Orange. Power Supply: DC. | |
| GP4105W1D | PFXGP4105W1D | 3.4-inch Compact Type. Interface: RS-232C. Display Colors: Monochrome White/Red/Pink. Power Supply: DC. | |
| GP4106G1D | PFXGP4106G1D | 3.4-inch Compact Type. Interface: RS-422/485. Display Colors: Monochrome Green/Red/Orange. Power Supply: DC. | |
| GP4106W1D | PFXGP4106W1D | 3.4-inch Compact Type. Interface: RS-422/485. Display Colors: Monochrome White/Red/Pink. Power Supply: DC. | |
| GP4107G1D | PFXGP4107G1D | 3.4-inch Compact Type. Interface: RS-485 (isolation). Display Colors: Monochrome Green/Red/Orange. Power Supply:DC. | |
| GP4107W1D | PFXGP4107W1D | 3.4-inch Compact Type. Interface: RS-485 (isolation). Display Colors: Monochrome White/Red/Pink. Power Supply:DC. | |
| GP-4200 Series | PFXGM4201TAD | 3.5-inch Modular Type. Touch Panel Type: Analog Resistive. Power Supply: DC. | |
| PFXGP4201TADW | 3.5-inch W Model. Touch Panel Type: Analog Resistive. Power Supply: DC. | ||
| PFXGP4201TAD | 3.5-inch Standard Model. Touch Panel Type: Analog Resistive. Power Supply: DC. | ||
| PFXGP4203TAD | 3.5-inch Standard Model. Touch Panel Type: Analog Resistive. Power Supply: DC. Isolated model. | ||
| GP-4300 Series | PFXGM4301TAD | 5.7-inch Modular Type. Touch Panel Type: Analog Resistive. Power Supply: DC. | |
| PFXGP4301TADW | 5.7-inch W Model. Touch Panel Type: Analog Resistive. Power Supply: DC. | ||
| PFXGP4301TADWC | 5.7-inch W Model. Touch Panel Type: Analog Resistive. Power Supply: DC. Coated model. | ||
| PFXGP4301TAD | 5.7-inch Standard Model. Touch Panel Type: Analog Resistive. Power Supply: DC. | ||
| PFXGP4301TADC | 5.7-inch Standard Model. Touch Panel Type: Analog Resistive. Power Supply: DC. Coated model. | ||
| PFXGP4303TAD | 5.7-inch Standard Model. Touch Panel Type: Analog Resistive. Power Supply: DC. Isolated model. | ||
| GP-4400 Series | PFXGP4401WADW | 7.0-inch Wide W Model. Touch Panel Type: Analog Resistive. Power Supply: DC. | |
| PFXGP4401TAD | 7.5-inch Standard Model. Touch Panel Type: Analog Resistive. Power Supply: DC. | ||
| GP-4500 Series | PFXGP4501TADW | 10.4-inch W Model. Touch Panel Type: Analog Resistive. Power Supply: DC. | |
| PFXGP4501TAA | 10.4-inch Standard Model. Touch Panel Type: Analog Resistive. Power Supply: AC. | ||
| PFXGP4501TAAC | 10.4-inch Standard Model. Touch Panel Type: Analog Resistive. Power Supply: AC. Coated model. | ||
| PFXGP4501TAD | 10.4-inch Standard Model. Touch Panel Type: Analog Resistive. Power Supply: DC. | ||
| PFXGP4501TADC | 10.4-inch Standard Model. Touch Panel Type: Analog Resistive. Power Supply: DC. Coated model. | ||
| PFXGP4501TMA | 10.4-inch Standard Model. Touch Panel Type: Matrix Resistive. Power Supply: AC. | ||
| PFXGP4501TMD | 10.4-inch Standard Model. Touch Panel Type: Matrix Resistive. Power Supply: DC. | ||
| PFXGP4503TAD | 10.4-inch Standard Model. Touch Panel Type: Analog Resistive. Power Supply: DC. Isolated model. | ||
| Product Name | Model No. | Global Code | Description |
| GP-4600 Series | PFXGP4601TAA | 12.1-inch Standard Model. Touch Panel Type: Analog Resistive. Power Supply: AC. | |
| PFXGP4601TAAC | 12.1-inch Standard Model. Touch Panel Type: Analog Resistive. Power Supply: AC. Coated model. | ||
| PFXGP4601TAD | 12.1-inch Standard Model. Touch Panel Type: Analog Resistive. Power Supply: DC. | ||
| PFXGP4601TADC | 12.1-inch Standard Model. Touch Panel Type: Analog Resistive. Power Supply: DC. Coated model. | ||
| PFXGP4601TMA | 12.1-inch Standard Model. Touch Panel Type: Matrix Resistive. Power Supply: AC. | ||
| PFXGP4601TMD | 12.1-inch Standard Model. Touch Panel Type: Matrix Resistive. Power Supply: DC. | ||
| PFXGP4603TAD | 12.1-inch Standard Model. Touch Panel Type: Analog Resistive. Power Supply: DC. Isolated model. | ||
| Product Name | Model No. | Global Code | Description | |
| GP-Pro EX V*.* | PFXEXEDV** | HMI Screen editor & Logic Programming Software *1 | ||
| GP-Pro EX Editor License | PFXEXEDLSV** | GP-Pro EX editor license *2 | ||
| Pro-Server EX Developer | PFXEXSDVV** | Software that connects a PC to a GP via Ethernet and collects and transmits data *3*4 |
||
| Pro-Server EX Developer License | EX-SED-LICENSE | PFXEXSDLS | Pro-Server EX developer license *5 | |
| Pro-Server EX Runtime License | EX-SRT-LICENSE | PFXEXSRLS | Pro-Server EX Runtime license *6 | |
| GP-Viewer EX | Single license | EX-VIEWER-LICENSE | PFXEXVW | License allowing a PC to access a HMI in remote mode *3*7 |
| 10 licenses | EX-VIEWER-LICENSE-10 | PFXEXVWLS10 | ||
| 30 licenses | EX-VIEWER-LICENSE-30 | PFXEXVWLS30 | ||
| MES Action License | EX-MES-LICENSE-V** | PFXEXMSLSV** | License key permitting Pro-Server EX to access a database *3 | |
| RPA Client License | Single License | EX-RPA | PFXEXRP | License to access a PC on the network in remote mode *3*8 |
| 10 Licenses | EX-RPA-10 | PFXEXRPLS10 | ||
| 30 Licenses | EX-RPA-30 | PFXEXRPLS30 | ||
| Product Name | Model No. | Global Code | Description | |
| RS-232C Cable | 5m | CA3-CBL232/5M-01 | PFXZC3CBR251 | Cable for RS-232C connection between various hosts and the GP |
| RS-422 Cable (Plug Type) | 5m | CA3-CBL422-01 | PFXZC3CBR452 | Cable for RS-422 connection between various hosts and the GP (Plug Type) |
| RS-422 Cable (Socket Type) | 5m | CA3-CBL422/5M-01 | PFXZC3CBR451 | Cable for RS-422 connection between various hosts and the GP (Socket Type) |
| Mitsubishi PLC A-Series Connection Cable | 5m | CA3-CBLA-01 | PFXZC3CBA51 | Cable for directly connecting an A Series CPU |
| Mitsubishi PLC A-Series Cable | 5m | ZC9CBA51 | PFXZC9CBA51 | Connects the GP directly to the CPU programming port on the Mitsubishi Electric PLC A/ QnA series |
| Mitsubishi PLC Q-Series Connection Cable | 5m | CA3-CBLQ-01 | PFXZC3CBQ51 | Cable for directly connecting a Q Series CPU |
| Mitsubishi PLC Q-Series CPU I/F Cable | 3m | ZC9CBQ31 | PFXZC9CBQ31 | Connects the GP directly to the CPU programming port on the Mitsubishi Electric PLC Q series |
| Mitsubishi PLC Q Series Link Cable | 5m | CA3-CBLLNKMQ-01 | PFXZC3CBQL51 | Cable for directly connecting a Q Series Link Unit |
| Mitsubishi PLC FX-Series Connection Cable | 5m | CA3-CBLFX/5M-01 | PFXZC3CBFX51 | Cable for directly connecting an FX Series CPU |
| 1m | CA3-CBLFX/1M-01 | PFXZC3CBFX11 | ||
| Mitsubishi PLC FX-Series CPU I/F Cable | 1m | ZC9CBFX11 | PFXZC9CBFX11 | Connect the GP directly to the CPU programming port on the Mitsubishi Electric PLC FX series |
| 5m | ZC9CBFX51 | PFXZC9CBFX51 | ||
| Omron PLC SYSMAC Link Cable | 5m | CA3-CBLSYS-01 | PFXZC3CBSYS51 | Cable for directly connecting a SYSMAC Link Unit |
| Panasonic Electric Works PLC FP Series CPU Cable | 2m | ZC9CBFP21 | PFXZC9CBFP21 | Connects the GP directly to the CPU port on the Panasonic Electric Works PLC FP series |
| Siemens TTY Converter Cable | 5m | CA6-CBLTTY/5M-01 | PFXZC6CBTTY51 | Cable for connecting a PLC S5 series to the GP4000 |
| MPI Cable | 3.5m | ST03-A2B-MPI21-PFE *8 | PFXZGPCBMPPE1 | Connects a host controller to the GP for MPI communication. |
| CA3-MPIPG1-PFE *9 | PFXZGPCBMPPE5 | |||
| CA3-MPIPGN-PFE *9 | PFXZGPCBMPPE6 | |||
| Multi-Link Cable | 5m | CA3-CBLMLT-01 | PFXZC3CBML1 | Connects a host controller to the GP for multi-link(n:1) communication |
| PFXZCBCBML1 | Connects a host controller directly to the GP4000 (D-sub 9 pin plug) for multi-link (n:1) communication. |
|||
| RS-232C 9-pin/25-pin Conversion Cable | 20cm | CA3-CBLCBT232-01 | PFXZC3CBCVR21 | Cable for converting a D-Sub 9-pin plug to a D-Sub 25-pin socket |
| RS-422C 9-pin/25-pin Conversion Cable | 20cm | CA3-CBLCBT422-01 | PFXZCBCBCVR41 | Cable for converting a D-Sub 9-pin plug to a D-Sub 25-pin socket |
| 2-port Adapter II | GP070-MD11 | PFXZGPADMD1 | Allows simultaneous use of an GP unit Series unit and a Mitsubishi PLC A, QnA, FX Series peripheral device. |
|
| 2-port Adapter II Cable | 5m | CA3-MDCB11 | PFXZC3CBMD1 | Cable for connecting a 2-port adapter to the GP4000 |
| PFXZCBCBMD1 | Connects Mitsubishi PLC directly to the GP4000 (D-sub 9 pin plug) using 2 port adapter II |
|||
| COM Port Conversion Adapter | CA3-ADPCOM-01 | PFXZC3ADCM1 | For COM 1 Pin conversion adapter for connecting the COM 2-dedicated communication option to the COM 1 port on the GP3000 |
|
| Terminal Block Conversion Adapter | CA3-ADPTRM-01 | PFXZC3ADR41 | Connects output from a GP unit’s Serial Interface (D-sub 9 pin socket) directly with an RS-422 terminal block. |
|
| RS-422 Terminal Block Conversion Adapter | PFXZCBADTM1 | Connects output from a GP unit’s Serial Interface (D-sub 9 pin plug) directly with an RS-422 terminal block. |
||
| RS-232C Isolation Unit | CA3-ISO232-01 | PFXZC3ADISR21 | Unit for connecting various hosts and the GP4000 by insulating | |
*8. Excluding GP-4x03T
*9. GP-4x03T only
| Product Name | Model No. | Global Code | Description | |
| USB Transfer Cable (USB Type A/USB Type A) | 2m | CA3-USBCB-01 | PFXZC3CBUSA1 | Cable for transferring screen data from a PC (USB Type A) to the GP unit (USB Type A) |
| USB Transfer Cable (USB Type A/mini-B) | 1.8m | ZC9USCBMB1 | PFXZC9USCBMB1 | Cable for transferring screen data from a PC (USB Type A) to the GP unit (USB mini-B). |
| USB Panel-mount Extension Cable (USB Type A) | 1m | CA5-USBEXT-01 | PFXZC5CBUBEX1 | Extension cable attaching USB interface to front panel. |
| USB Panel-mount Extension Cable (USB mini-B) | 1m | ZC9USEXMB1 | PFXZC9USEXMB1 | Extension cable that attaches to the USB (mini-B) interface on the front side of the operation panel. |
| USB-Serial (RS-232C) Conversion Cable | 50cm | CA6-USB232-01 | PFXZC6CBCVUSR21 | Cable for converting a GP unit’s USB interface into a serial interface (RS-232C). Allows connection to modema or barcode readers that support RS-232C. |
| USB-Serial (RS-422/485) Conversion Adapter | PFXZCBCBCVUSR41 | Cable for connecting a GP unit (USB Type A) with an external device (RS-422/RS-485) | ||
| SD Memory Card | PFXZCBSD4GC41 | SD Memory Card (4 GB, CLASS4) | ||
| Screen Protection Sheet | For 3.4-inch | ZC9DS31 | PFXZC9DS31 | Disposable, dirt-resistant sheet for the GP unit screen (5 sheets/set) |
| For 3.5-inch | CA6-DFS4-01 | PFXZC6DS41 | ||
| For 5.7-inch | PFXZCBDS61 | |||
| For 7.0-inch Wide | PFXZCBDS72 | |||
| For 7.5-inch | PFXZCBDS71 | |||
| For 10.4-inch | PFXZCBDS101 | |||
| For 12.1-inch | CA7-DFS12-01 | PFXZC7DS121 | ||
| Panel Cutout Adapter | For 10.4-inch | CA4-ATM10-01 | PFXZC4AT101 | Panel cutout adapter for mounting GP-4500 Series in cutout for GP-2500/2600 series. |
| Environment Cover | For 3.5-inch | PFXZCBOP41 | Environmental resistant Cover | |
| For 5.7-inch | PFXZCBOP61 | |||
| For 7.0-inch Wide / 7.5-inch | PFXZCBOP71 | |||
| For 10.4-inch | PFXZCBOP101 | |||
| For 12.1-inch | PFXZCBOP121 | |||
Maintenance Options
Please purchase when the product is damaged or lost.
| Product Name | Model No. | Global Code | Description | |
| 3.4-inch Installation Fastener | ZC9AF31 | PFXZC9AF31 | Used to install the GP into a solid panel (2 pieces/ set) | |
| Installation Fastener | PFXZCBAF1 | Used to install the GP into a solid panel (4 pieces/ set) | ||
| 3.4-inch Installation Gasket | ZC9WG31 | PFXZC9WG31 | Provides dust and moisture resistance when GP is installed into a solid panel (1 piece) | |
| 3.5-inch Installation Gasket | PFXZCBWG41 | |||
| 5.7-inch Installation Gasket | PFXZCBWG61 | |||
| 7.5-inch & 7.0-inch Wide Installation Gasket | PFXZCBWG71 | |||
| 10.4-inch T models Installation Gasket | PFXZCBWG101 | |||
| 12.1-inch & 10.4-inch TW models Installation Gasket | PFXZCBWG121 | |||
| USB Clamp Type A (1 port) | For 3.4-inch | ZC9USCL1 | PFXZC9USCL1 | USB (Type A) Cable clamp for 1 port products to prevent disconnection (5 clamps/ set) |
| USB Clamp TypeA | PFXZCBCLUSA1 | Clamp to prevent disconnection of USB cable (1 port, 5 pcs/set) | ||
| USB Clamp Type mini-B (1port) | ZC9USCLMB1 | PFXZC9USCLMB1 | Clamp to prevent disconnection of USB cable (1 port, 5 pcs/set) | |
| 3.4-inch COM I/F Connector | ZC9CMC1 | PFXZC9CMC1 | Connector for Serial I/F (1 piece) *10 | |
| Display Installation Nut | PFXZGMNT1 | Nut to install the display module (10 pcs/set) | ||
| Socket Wrench | PFXZGMSW1 | Socket wrench to tighten and loosen the display installation nut (1 pc/set) | ||
| 3.4-inch DC Power Supply Connector |
For 3.4-inch | ZCACNDCS1 | PFXZCACNDCS1 | Connector for attaching power supply to 3.4-inch GP units. (Set of 5 connectors) *11 |
| DC Power Supply Connector | For GP-4201TM/GP- 4301TM |
PFXZGMCNDC1 | Connector to connect DC power supply cables (5 pcs/set) | |
| DC Power Supply Connector (Straight type) | PFXZCBCNDC1 | Connector to connect DC powe rsupply cables (Straight type, 5pcs/set) | ||
| DC Power Supply Connector (Angle type) | PFXZCBCNDC2 | Right-angle connector to connect DC power supply cables (Angle type, 5pcs/set) | ||
| Replacement Battery | PFXZCBBT1 | Primary battery for replacement | ||
| Accessories Kit | PFXZGMAK1 | Anti-rotation Tee, USB cable clamp to prevent disconnection (USB Type A, Mini B, for 1 port), 2mm-hight spacer to adjust installation panel thickness (1pc/each |
||
สินค้าแน่ะนำ
PFXGP4501TADW-Pro
฿ 26900.00
PFXZGPADCM3H1, GP3000H Conversion Adapter AGP300H-ADPCOM-01
AGP3000H-ADPCOM-01
PFXSP5B41S8B, SP5000 OPEN BOX DEDICATED TO BLUE OPEN STUDIO V8.1 SP2
PFXSP5B41S8B
15"W touch panel display, 2COM, 2Ethernet, USB host&device, 24VDC, GP-ProEX model
PFXST6700WADE
Basic HMI Gateway Box STM6000 for Multi Converter application
PFXSTM6B00D
Proface GP2500-TC41-24V HMI
GP2500-TC41-24V
PFXFP6700TMD, Flat Panel Monitors Pro-face FP6000 Series
PFXFP6700TMD
