10.4-inch TFT, 65,536 colors, VGA 640 x 480 pixels, Analog Touch Panel, Ethernet I/F, COM I/F x 2, USB A/mini-B I/F x 1 each, SD Card I/F, DC24V
PFXGP4501TADW
อัตราค่าจัดส่ง
รายละเอียดสินค้า

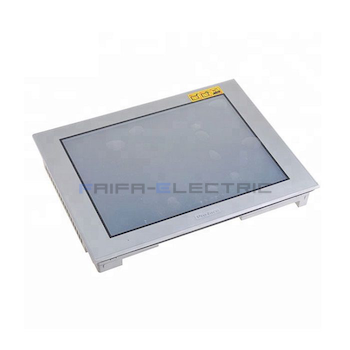

PFXGP4501TADW (10.4") , จอทัชสกรีน HMI Proface
- 10.4 inch
- 65,536-color TFT
- 640 × 480 pixels (VGA)
- Analog Touch Panel
- Application 16MB
- Data Backup 128KB
- Built-in Control Program
- Supply 24 VDC
| Standard product information | |
| Family | HMI |
| Series | GP4000 Series |
| Size | 10" |
| Model | PFXGP4501TADW |
| Global Code | PFXGP4501TADW |
| Product Features | 10” DC Analog |
| Repair Status | ✔ (Maintenance service is available, able to be maintained.) |
| Display specifications | |
| Display type |
TFT Color LCD
|
| Display size | 10.4" |
| Resolution | 640 x 480 pixels (VGA) |
| Effective display area | W211.2 x H158.4 mm [W8.31 x H6.24 in.] |
| Display colors | 65,536 colors (No blink) / 16,384 colors (Blink) |
| Backlight | White LED (Not user replaceable. When replacement is required, contact your local distributor.) |
| Backlight service life | 50,000 hrs. or more (each in continuous operation at 25 °C [77 °F] before backlight brightness decreases to 50%) |
| Brightness control | 8 Levels (Adjusted with touch panel or software) |
| Touch panel type | Resistive Film (analog) |
| Touch panel resolution | 1,024 x 1,024 |
| Electrical specifications | |
|
Rated input voltage
|
24 Vdc
|
|
Input voltage limits
|
19.2 to 28.8 Vdc
|
|
Power consumption
|
17 W or less
|

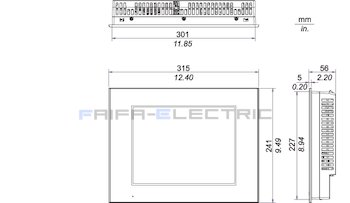

| Memory | |
| Application memory | When using GP-Pro EX: - Media: FLASH EPROM - Screen Area: 16MB *Use the screen area when the user font area's capacity is exceeded - for example, when an image font or a picture font is used. - User Font Area: 8MB - Logic Program Area: 132KB (Equivalent to 15,000 steps) *Up to 60,000 steps can be converted in software. However, this reduces application memory capacity (for screen data) by 1 MB. - Free Space: None Removable System: No |
| Backup memory | When using GP-Pro EX: - Screen Area: SRAM 128KB - Variable Area: None Battery: Replaceable battery / Primary battery for clock data backup |
| Clock accuracy | ±65 sec./month (deviation at room temperature and power is OFF)*2 |
| Interface specifications | |
| Serial (COM1) | Asynchronous Transmission: RS-232C, Data Length: 7 or 8 bits, Stop Bit: 1 or 2 bits, Parity: None, Even or Odd, Data Transmission Speed: 2,400 to 115,200 bps, Connector: D-Sub 9 (plug) |
| Serial (COM2) | Asynchronous Transmission: RS-422 / 485, Data Length: 7 or 8 bits, Stop Bit: 1 or 2 bits, Parity: None, Even or Odd, Data Transmission Speed: 2,400 to 115,200 bps, 187,500 bps (MPI), Connector: D-Sub 9 pin (plug) |
| USB (Type A) | Conforms to USB 2.0 (Type A) x 1 Power supply voltage: 5 Vdc ±5 % Output Current: 500 mA or less Communication distance: 5 m [16.4 ft.] or less |
| USB (mini-B) | Conforms to USB 2.0 (mini-B) x 1, Communication Distance: 5 m [16.4 ft] or less |
| Ethernet | IEEE802.3i / IEEE802.3u, 10BASE-T / 100BASE-TX, Connector: Modular jack (RJ-45) x 1 |
| SD card | SD Card Slot x 1 |
| Structural specifications | |
| Grounding | Functional grounding: Grounding resistance of 100 Ω, 2mm2 (AWG 14) or thicker wire, or your country's applicable standard. (Same for FG and SG terminals) |
| Cooling method | Natural air circulation |
| Structure | IP65f NEMA #250 TYPE 4X/13 (on the front panel when properly installed in an enclosure)*3 |
| External dimensions | W315 x H241 x D56 mm [W12.4 x H9.49 x D2.20 in.] |
| Panel cut-out dimensions | W301.5 x H227.5 mm [W11.87 x H8.96 in.] Panel thickness area: 1.6 to 5 mm [0.06 to 0.2 in.]*4 |
| Weight | 2.5 kg [5.5 lb] or less |
| 3The front face of this product, installed in a solid panel, has been tested using conditions equivalent to the standards shown in the specification. |
| 4For dimensional tolerance, everything +1/-0 mm [+0.04/-0 in.] and R in angle are below R3 [R0.12 in.]. Even if the installation wall thickness is within the recommended range for the "Panel Cut Dimensions", depending on wall's material, size, and installation location of GP unit and other devices, the installation wall could warp. To prevent warping, the installation surface may need to be strengthened. |
| Dimensions | |
| External dimensions |  |
| Panel cut-out dimensions |  |
| External dimensions with cable |  |
ข้อมูลสินค้า
| GP-4100 Series | GP4104G1D | PFXGP4104G1D | 3.4-inch Compact Type. Interface: Ethernet. Display Colors: Monochrome Green/Red/Orange. Power Supply: DC. |
| GP4104W1D | PFXGP4104W1D | 3.4-inch Compact Type. Interface: Ethernet. Display Colors: Monochrome White/Red/Pink. Power Supply: DC. | |
| GP4105G1D | PFXGP4105G1D | 3.4-inch Compact Type. Interface: RS-232C. Display Colors: Monochrome Green/Red/Orange. Power Supply: DC. | |
| GP4105W1D | PFXGP4105W1D | 3.4-inch Compact Type. Interface: RS-232C. Display Colors: Monochrome White/Red/Pink. Power Supply: DC. | |
| GP4106G1D | PFXGP4106G1D | 3.4-inch Compact Type. Interface: RS-422/485. Display Colors: Monochrome Green/Red/Orange. Power Supply: DC. | |
| GP4106W1D | PFXGP4106W1D | 3.4-inch Compact Type. Interface: RS-422/485. Display Colors: Monochrome White/Red/Pink. Power Supply: DC. | |
| GP4107G1D | PFXGP4107G1D | 3.4-inch Compact Type. Interface: RS-485 (isolation). Display Colors: Monochrome Green/Red/Orange. Power Supply:DC. | |
| GP4107W1D | PFXGP4107W1D | 3.4-inch Compact Type. Interface: RS-485 (isolation). Display Colors: Monochrome White/Red/Pink. Power Supply:DC. | |
| GP-4200 Series | PFXGM4201TAD | 3.5-inch Modular Type. Touch Panel Type: Analog Resistive. Power Supply: DC. | |
| PFXGP4201TADW | 3.5-inch W Model. Touch Panel Type: Analog Resistive. Power Supply: DC. | ||
| PFXGP4201TAD | 3.5-inch Standard Model. Touch Panel Type: Analog Resistive. Power Supply: DC. | ||
| PFXGP4203TAD | 3.5-inch Standard Model. Touch Panel Type: Analog Resistive. Power Supply: DC. Isolated model. | ||
| GP-4300 Series | PFXGM4301TAD | 5.7-inch Modular Type. Touch Panel Type: Analog Resistive. Power Supply: DC. | |
| PFXGP4301TADW | 5.7-inch W Model. Touch Panel Type: Analog Resistive. Power Supply: DC. | ||
| PFXGP4301TADWC | 5.7-inch W Model. Touch Panel Type: Analog Resistive. Power Supply: DC. Coated model. | ||
| PFXGP4301TAD | 5.7-inch Standard Model. Touch Panel Type: Analog Resistive. Power Supply: DC. | ||
| PFXGP4301TADC | 5.7-inch Standard Model. Touch Panel Type: Analog Resistive. Power Supply: DC. Coated model. | ||
| PFXGP4303TAD | 5.7-inch Standard Model. Touch Panel Type: Analog Resistive. Power Supply: DC. Isolated model. | ||
| GP-4400 Series | PFXGP4401WADW | 7.0-inch Wide W Model. Touch Panel Type: Analog Resistive. Power Supply: DC. | |
| PFXGP4401TAD | 7.5-inch Standard Model. Touch Panel Type: Analog Resistive. Power Supply: DC. | ||
| GP-4500 Series | PFXGP4501TADW | 10.4-inch W Model. Touch Panel Type: Analog Resistive. Power Supply: DC. | |
| PFXGP4501TAA | 10.4-inch Standard Model. Touch Panel Type: Analog Resistive. Power Supply: AC. | ||
| PFXGP4501TAAC | 10.4-inch Standard Model. Touch Panel Type: Analog Resistive. Power Supply: AC. Coated model. | ||
| PFXGP4501TAD | 10.4-inch Standard Model. Touch Panel Type: Analog Resistive. Power Supply: DC. | ||
| PFXGP4501TADC | 10.4-inch Standard Model. Touch Panel Type: Analog Resistive. Power Supply: DC. Coated model. | ||
| PFXGP4501TMA | 10.4-inch Standard Model. Touch Panel Type: Matrix Resistive. Power Supply: AC. | ||
| PFXGP4501TMD | 10.4-inch Standard Model. Touch Panel Type: Matrix Resistive. Power Supply: DC. | ||
| PFXGP4503TAD | 10.4-inch Standard Model. Touch Panel Type: Analog Resistive. Power Supply: DC. Isolated model. | ||
| Product Name | Model No. | Global Code | Description |
| GP-4600 Series | PFXGP4601TAA | 12.1-inch Standard Model. Touch Panel Type: Analog Resistive. Power Supply: AC. | |
| PFXGP4601TAAC | 12.1-inch Standard Model. Touch Panel Type: Analog Resistive. Power Supply: AC. Coated model. | ||
| PFXGP4601TAD | 12.1-inch Standard Model. Touch Panel Type: Analog Resistive. Power Supply: DC. | ||
| PFXGP4601TADC | 12.1-inch Standard Model. Touch Panel Type: Analog Resistive. Power Supply: DC. Coated model. | ||
| PFXGP4601TMA | 12.1-inch Standard Model. Touch Panel Type: Matrix Resistive. Power Supply: AC. | ||
| PFXGP4601TMD | 12.1-inch Standard Model. Touch Panel Type: Matrix Resistive. Power Supply: DC. | ||
| PFXGP4603TAD | 12.1-inch Standard Model. Touch Panel Type: Analog Resistive. Power Supply: DC. Isolated model. | ||
| Product Name | Model No. | Global Code | Description | |
| GP-Pro EX V*.* | PFXEXEDV** | HMI Screen editor & Logic Programming Software *1 | ||
| GP-Pro EX Editor License | PFXEXEDLSV** | GP-Pro EX editor license *2 | ||
| Pro-Server EX Developer | PFXEXSDVV** | Software that connects a PC to a GP via Ethernet and collects and transmits data *3*4 |
||
| Pro-Server EX Developer License | EX-SED-LICENSE | PFXEXSDLS | Pro-Server EX developer license *5 | |
| Pro-Server EX Runtime License | EX-SRT-LICENSE | PFXEXSRLS | Pro-Server EX Runtime license *6 | |
| GP-Viewer EX | Single license | EX-VIEWER-LICENSE | PFXEXVW | License allowing a PC to access a HMI in remote mode *3*7 |
| 10 licenses | EX-VIEWER-LICENSE-10 | PFXEXVWLS10 | ||
| 30 licenses | EX-VIEWER-LICENSE-30 | PFXEXVWLS30 | ||
| MES Action License | EX-MES-LICENSE-V** | PFXEXMSLSV** | License key permitting Pro-Server EX to access a database *3 | |
| RPA Client License | Single License | EX-RPA | PFXEXRP | License to access a PC on the network in remote mode *3*8 |
| 10 Licenses | EX-RPA-10 | PFXEXRPLS10 | ||
| 30 Licenses | EX-RPA-30 | PFXEXRPLS30 | ||
| Product Name | Model No. | Global Code | Description | |
| RS-232C Cable | 5m | CA3-CBL232/5M-01 | PFXZC3CBR251 | Cable for RS-232C connection between various hosts and the GP |
| RS-422 Cable (Plug Type) | 5m | CA3-CBL422-01 | PFXZC3CBR452 | Cable for RS-422 connection between various hosts and the GP (Plug Type) |
| RS-422 Cable (Socket Type) | 5m | CA3-CBL422/5M-01 | PFXZC3CBR451 | Cable for RS-422 connection between various hosts and the GP (Socket Type) |
| Mitsubishi PLC A-Series Connection Cable | 5m | CA3-CBLA-01 | PFXZC3CBA51 | Cable for directly connecting an A Series CPU |
| Mitsubishi PLC A-Series Cable | 5m | ZC9CBA51 | PFXZC9CBA51 | Connects the GP directly to the CPU programming port on the Mitsubishi Electric PLC A/ QnA series |
| Mitsubishi PLC Q-Series Connection Cable | 5m | CA3-CBLQ-01 | PFXZC3CBQ51 | Cable for directly connecting a Q Series CPU |
| Mitsubishi PLC Q-Series CPU I/F Cable | 3m | ZC9CBQ31 | PFXZC9CBQ31 | Connects the GP directly to the CPU programming port on the Mitsubishi Electric PLC Q series |
| Mitsubishi PLC Q Series Link Cable | 5m | CA3-CBLLNKMQ-01 | PFXZC3CBQL51 | Cable for directly connecting a Q Series Link Unit |
| Mitsubishi PLC FX-Series Connection Cable | 5m | CA3-CBLFX/5M-01 | PFXZC3CBFX51 | Cable for directly connecting an FX Series CPU |
| 1m | CA3-CBLFX/1M-01 | PFXZC3CBFX11 | ||
| Mitsubishi PLC FX-Series CPU I/F Cable | 1m | ZC9CBFX11 | PFXZC9CBFX11 | Connect the GP directly to the CPU programming port on the Mitsubishi Electric PLC FX series |
| 5m | ZC9CBFX51 | PFXZC9CBFX51 | ||
| Omron PLC SYSMAC Link Cable | 5m | CA3-CBLSYS-01 | PFXZC3CBSYS51 | Cable for directly connecting a SYSMAC Link Unit |
| Panasonic Electric Works PLC FP Series CPU Cable | 2m | ZC9CBFP21 | PFXZC9CBFP21 | Connects the GP directly to the CPU port on the Panasonic Electric Works PLC FP series |
| Siemens TTY Converter Cable | 5m | CA6-CBLTTY/5M-01 | PFXZC6CBTTY51 | Cable for connecting a PLC S5 series to the GP4000 |
| MPI Cable | 3.5m | ST03-A2B-MPI21-PFE *8 | PFXZGPCBMPPE1 | Connects a host controller to the GP for MPI communication. |
| CA3-MPIPG1-PFE *9 | PFXZGPCBMPPE5 | |||
| CA3-MPIPGN-PFE *9 | PFXZGPCBMPPE6 | |||
| Multi-Link Cable | 5m | CA3-CBLMLT-01 | PFXZC3CBML1 | Connects a host controller to the GP for multi-link(n:1) communication |
| PFXZCBCBML1 | Connects a host controller directly to the GP4000 (D-sub 9 pin plug) for multi-link (n:1) communication. |
|||
| RS-232C 9-pin/25-pin Conversion Cable | 20cm | CA3-CBLCBT232-01 | PFXZC3CBCVR21 | Cable for converting a D-Sub 9-pin plug to a D-Sub 25-pin socket |
| RS-422C 9-pin/25-pin Conversion Cable | 20cm | CA3-CBLCBT422-01 | PFXZCBCBCVR41 | Cable for converting a D-Sub 9-pin plug to a D-Sub 25-pin socket |
| 2-port Adapter II | GP070-MD11 | PFXZGPADMD1 | Allows simultaneous use of an GP unit Series unit and a Mitsubishi PLC A, QnA, FX Series peripheral device. |
|
| 2-port Adapter II Cable | 5m | CA3-MDCB11 | PFXZC3CBMD1 | Cable for connecting a 2-port adapter to the GP4000 |
| PFXZCBCBMD1 | Connects Mitsubishi PLC directly to the GP4000 (D-sub 9 pin plug) using 2 port adapter II |
|||
| COM Port Conversion Adapter | CA3-ADPCOM-01 | PFXZC3ADCM1 | For COM 1 Pin conversion adapter for connecting the COM 2-dedicated communication option to the COM 1 port on the GP3000 |
|
| Terminal Block Conversion Adapter | CA3-ADPTRM-01 | PFXZC3ADR41 | Connects output from a GP unit’s Serial Interface (D-sub 9 pin socket) directly with an RS-422 terminal block. |
|
| RS-422 Terminal Block Conversion Adapter | PFXZCBADTM1 | Connects output from a GP unit’s Serial Interface (D-sub 9 pin plug) directly with an RS-422 terminal block. |
||
| RS-232C Isolation Unit | CA3-ISO232-01 | PFXZC3ADISR21 | Unit for connecting various hosts and the GP4000 by insulating | |
*8. Excluding GP-4x03T
*9. GP-4x03T only
| Product Name | Model No. | Global Code | Description | |
| USB Transfer Cable (USB Type A/USB Type A) | 2m | CA3-USBCB-01 | PFXZC3CBUSA1 | Cable for transferring screen data from a PC (USB Type A) to the GP unit (USB Type A) |
| USB Transfer Cable (USB Type A/mini-B) | 1.8m | ZC9USCBMB1 | PFXZC9USCBMB1 | Cable for transferring screen data from a PC (USB Type A) to the GP unit (USB mini-B). |
| USB Panel-mount Extension Cable (USB Type A) | 1m | CA5-USBEXT-01 | PFXZC5CBUBEX1 | Extension cable attaching USB interface to front panel. |
| USB Panel-mount Extension Cable (USB mini-B) | 1m | ZC9USEXMB1 | PFXZC9USEXMB1 | Extension cable that attaches to the USB (mini-B) interface on the front side of the operation panel. |
| USB-Serial (RS-232C) Conversion Cable | 50cm | CA6-USB232-01 | PFXZC6CBCVUSR21 | Cable for converting a GP unit’s USB interface into a serial interface (RS-232C). Allows connection to modema or barcode readers that support RS-232C. |
| USB-Serial (RS-422/485) Conversion Adapter | PFXZCBCBCVUSR41 | Cable for connecting a GP unit (USB Type A) with an external device (RS-422/RS-485) | ||
| SD Memory Card | PFXZCBSD4GC41 | SD Memory Card (4 GB, CLASS4) | ||
| Screen Protection Sheet | For 3.4-inch | ZC9DS31 | PFXZC9DS31 | Disposable, dirt-resistant sheet for the GP unit screen (5 sheets/set) |
| For 3.5-inch | CA6-DFS4-01 | PFXZC6DS41 | ||
| For 5.7-inch | PFXZCBDS61 | |||
| For 7.0-inch Wide | PFXZCBDS72 | |||
| For 7.5-inch | PFXZCBDS71 | |||
| For 10.4-inch | PFXZCBDS101 | |||
| For 12.1-inch | CA7-DFS12-01 | PFXZC7DS121 | ||
| Panel Cutout Adapter | For 10.4-inch | CA4-ATM10-01 | PFXZC4AT101 | Panel cutout adapter for mounting GP-4500 Series in cutout for GP-2500/2600 series. |
| Environment Cover | For 3.5-inch | PFXZCBOP41 | Environmental resistant Cover | |
| For 5.7-inch | PFXZCBOP61 | |||
| For 7.0-inch Wide / 7.5-inch | PFXZCBOP71 | |||
| For 10.4-inch | PFXZCBOP101 | |||
| For 12.1-inch | PFXZCBOP121 | |||
Maintenance Options
Please purchase when the product is damaged or lost.
| Product Name | Model No. | Global Code | Description | |
| 3.4-inch Installation Fastener | ZC9AF31 | PFXZC9AF31 | Used to install the GP into a solid panel (2 pieces/ set) | |
| Installation Fastener | PFXZCBAF1 | Used to install the GP into a solid panel (4 pieces/ set) | ||
| 3.4-inch Installation Gasket | ZC9WG31 | PFXZC9WG31 | Provides dust and moisture resistance when GP is installed into a solid panel (1 piece) | |
| 3.5-inch Installation Gasket | PFXZCBWG41 | |||
| 5.7-inch Installation Gasket | PFXZCBWG61 | |||
| 7.5-inch & 7.0-inch Wide Installation Gasket | PFXZCBWG71 | |||
| 10.4-inch T models Installation Gasket | PFXZCBWG101 | |||
| 12.1-inch & 10.4-inch TW models Installation Gasket | PFXZCBWG121 | |||
| USB Clamp Type A (1 port) | For 3.4-inch | ZC9USCL1 | PFXZC9USCL1 | USB (Type A) Cable clamp for 1 port products to prevent disconnection (5 clamps/ set) |
| USB Clamp TypeA | PFXZCBCLUSA1 | Clamp to prevent disconnection of USB cable (1 port, 5 pcs/set) | ||
| USB Clamp Type mini-B (1port) | ZC9USCLMB1 | PFXZC9USCLMB1 | Clamp to prevent disconnection of USB cable (1 port, 5 pcs/set) | |
| 3.4-inch COM I/F Connector | ZC9CMC1 | PFXZC9CMC1 | Connector for Serial I/F (1 piece) *10 | |
| Display Installation Nut | PFXZGMNT1 | Nut to install the display module (10 pcs/set) | ||
| Socket Wrench | PFXZGMSW1 | Socket wrench to tighten and loosen the display installation nut (1 pc/set) | ||
| 3.4-inch DC Power Supply Connector |
For 3.4-inch | ZCACNDCS1 | PFXZCACNDCS1 | Connector for attaching power supply to 3.4-inch GP units. (Set of 5 connectors) *11 |
| DC Power Supply Connector | For GP-4201TM/GP- 4301TM |
PFXZGMCNDC1 | Connector to connect DC power supply cables (5 pcs/set) | |
| DC Power Supply Connector (Straight type) | PFXZCBCNDC1 | Connector to connect DC powe rsupply cables (Straight type, 5pcs/set) | ||
| DC Power Supply Connector (Angle type) | PFXZCBCNDC2 | Right-angle connector to connect DC power supply cables (Angle type, 5pcs/set) | ||
| Replacement Battery | PFXZCBBT1 | Primary battery for replacement | ||
| Accessories Kit | PFXZGMAK1 | Anti-rotation Tee, USB cable clamp to prevent disconnection (USB Type A, Mini B, for 1 port), 2mm-hight spacer to adjust installation panel thickness (1pc/each |
||
สินค้าแน่ะนำ
PFXGP4501TADW-Pro
฿ 26900.00
PFXZGPADCM3H1, GP3000H Conversion Adapter AGP300H-ADPCOM-01
AGP3000H-ADPCOM-01
PFXSP5B41S8B, SP5000 OPEN BOX DEDICATED TO BLUE OPEN STUDIO V8.1 SP2
PFXSP5B41S8B
15"W touch panel display, 2COM, 2Ethernet, USB host&device, 24VDC, GP-ProEX model
PFXST6700WADE
Basic HMI Gateway Box STM6000 for Multi Converter application
PFXSTM6B00D
Proface GP2500-TC41-24V HMI
GP2500-TC41-24V
PFXFP6700TMD, Flat Panel Monitors Pro-face FP6000 Series
PFXFP6700TMD
