รายละเอียดสินค้า

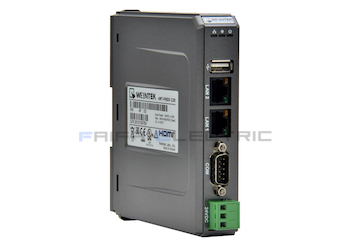

Weintek HMI for external touchscreen monitor

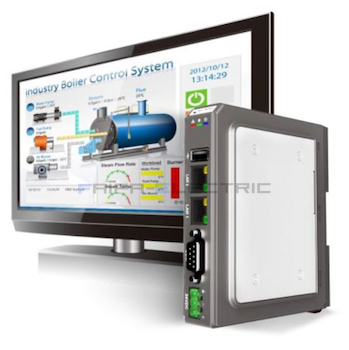

cMT-FHDx inherits all the rich HMI functionality found in the cMT series. Without touchscreen and LCD, this HDMI-enabled unit can work with screens of any size, so that screen size is no longer a limitation. It also allows touch control via USB connection, which can be an industrial touchscreen monitor with USB interface or an USB mouse.
Weintek HMI for external touchscreen monitor, Quad-core Cortex-A17 CPU 32 bits RISC 1,6GHz with High Performance dedicated 3D Processor, max. project size 64MB. Ports: HDMI, USB, serial 2 x Ethernet
Specifications of the cMT-FHD:
- Seperates Server and Graphical User Interface
- Connects to industrial touchscreen monitor or TV
- Resolution: Customizable (max. 1920 x 1080)
- Processor: 1,6 GHz RISC Quad-core Cortex-A17 CPU
with High Performance dedicated 3D Processor - Memory: 4 GB Flash / 1 GB RAM
- Project & Firmware size limit: 64MB
History size limit: 40 samples, 10,000 records/sample - RS232/485, 1 x 10/100/1000 Mbps Ethernet, 1 x 10/100 Mbps Ethernet
- USB ports: 1 USB 2.0 host port
- Remote monitoring and control of multiple cMT HMIs by using a tablet or smartphone
- Real Time Clock
- Power supply: Isolated 24±20% VDC input
| Model | cMT-FHDX |
| Flash | 4 GB |
| RAM | 1 GB |
| Processor | Quad-core 32-bit RISC 1.6GHz |
| USB Host | USB 2.0 x 1 |
| Ethernet | LAN 1: 10/100/1000 Base-T x 1 LAN 2: 10/100 Base-T x 1 |
| WiFi | N/A |
| COM Port | COM1: RS-232 COM2: RS-485 2W/4W COM3: RS-485 2W |
| HDMI | Resolution 1920 x 1080 (customizable) |
| Audio Output | HDMI Audio Output |
| Video Input | N/A |
| RTC | Built-in |
| Input Power | 24±20%VDC |
| Power Isolation | Built-in |
| Power Consumption | 850mA@24VDC |
| Voltage Resistance | 500VAC (1 min.) |
| Isolation Resistance | Exceed 50Mohm at 500VDC |
| Vibration Endurance | 10 to 25Hz (X, Y, Z direction 2G 30 minutes) |
| PCB Coating | Yes |
| Enclosure | Plastic |
| Dimensions WxHxD | 29.8 x 130 x 115 mm |
| Weight | Approx. 0.24 kg |
| Mount | 35mm DIN rail mounting |
| Protection Structure | IP20 |
| Storage Temperature | -20° ~ 60°C (-4° ~ 140°F) |
| Operating Temperature | 0° ~ 50°C (32° ~ 122°F) |
| Relative Humidity | 10% ~ 90% (non-condensing) |
| CE | CE marked |
| UL | N/A |
| ATEX | N/A |
| Software | EasyBuilder Pro V6.04.01 or later versions |
*The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc
เอกสารเพิ่มเติม
Software
ข้อมูลสินค้า
Headless HMI

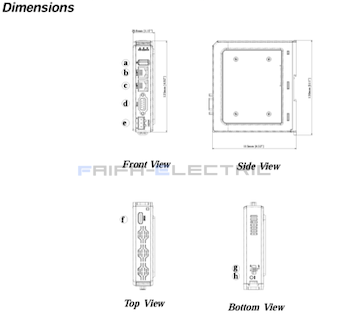

Specifications & Dimensions
|
Model |
cMT-FHDX-820 |
cMT-SVRX-820 / 822 |
||
|
Memory |
Flash RAM |
4 GB 1 GB |
4 GB 1 GB |
|
|
Processor |
Quad-core RISC |
Quad-core RISC |
|
|
|
I/O Port |
SD Card Slot USB Host Ethernet
COM Port
HDMI Recommended Resolutions (Please use these recommended screen resolutions to avoid compatibility issues.) Audio Output |
N/A |
Micro SD x1 |
|
|
USB 2.0 x 1 |
USB 2.0 x 1 |
|
||
|
LAN 1: 10/100/1000 Base-T x 1 |
LAN 1: 10/100/1000 Base-T x 1 |
|
||
|
LAN 2: 10/100 Base-T x 1 |
LAN 2: 10/100 Base-T x 1 |
|
||
|
COM1: RS-232 2W |
COM1: RS-232 2W |
|
||
|
COM2: RS-485 2W/4W |
COM2: RS-485 2W/4W |
|
||
|
COM3: RS-485 2W |
COM3: RS-485 2W |
|
||
|
Customizable |
N/A |
|
||
|
(max. resolution 1920 x 1080) |
|
|
||
|
720x480 / 720x576 / 800x600 |
|
|
||
|
1024x768 / 1280x720 |
N/A |
|
||
|
1366x768 / 1920x1080 |
|
|
||
|
HDMI Audio Output |
N/A |
|
||
|
RTC |
Built-in |
Built-in |
|
|
|
Power |
Input Power |
24±20%VDC |
24±20%VDC |
|
|
|
Power Isolation |
Built-in |
Built-in |
|
|
|
Power Consumption |
850mA@24VDC |
850mA@24VDC |
|
|
|
Voltage Resistance |
500VAC (1 min.) |
500VAC (1 min.) |
|
|
|
Isolation Resistance |
Exceed 50MΩ @ 500VDC |
Exceed 50MΩ @ 500VDC |
|
|
Specification |
PCB Coating |
Yes |
Yes |
|
|
|
Enclosure |
Plastic |
Plastic |
|
|
|
Dimensions WxHxD |
29.8 x 130 x 115 mm |
29.8 x 130 x 115 mm |
|
|
|
Weight |
Approx. 0.24 kg |
Approx. 0.24 kg |
|
|
|
Mount |
35 mm DIN rail mounting |
35 mm DIN rail mounting |
|
|
Environment |
Protection Structure Storage Temperature Operating Temperature Relative Humidity Vibration Endurance |
IP20 |
IP20 |
|
|
-20° ~ 60° C (-4° ~ 140° F) |
-20° ~ 60° C (-4° ~ 140° F) |
|
||
|
0° ~ 50° C (32° ~ 122° F) |
0° ~ 50° C (32° ~ 122° F) |
|
||
|
10% ~ 90% |
10% ~ 90% |
|
||
|
(non-condensing) |
(non-condensing) |
|
||
|
10 to 25Hz |
10 to 25Hz |
|
||
|
(X, Y, Z direction 2G 30 minutes) |
(X, Y, Z direction 2G 30 minutes) |
|
||
|
Certificate |
CE UL |
CE marked cULus Listed |
CE marked cULus Listed |
|
|
Software |
Weincloud |
EasyAccess 2.0 (Optional) Dashboard (Optional) |
EasyAccess 2.0 (Optional) Dashboard (Optional) |
EasyAccess 2.0 (Built-in) Dashboard (Optional) |
|
|
CODESYS |
Optional |
Optional |
|
