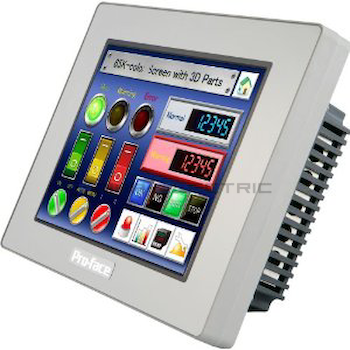

5.7", 65,536-color TFT, QVGA, Serial I/F, USB TypeA, miniB, Ethernet, DC24V

HMI

GP4000M Series

5"

PFXGM4301TAD

PFXGM4301TAD

Modular 5" DC Analog

- (Maintenance service is not available. Replace with a new unit under warranty.)

TFT Color LCD

5.7"

320 x 240 pixels (QVGA)

W115.2 x H86.4 mm [W4.54 x H3.40 in.]

65,536 colors

White LED (Not user replaceable. When replacement is required, contact your local distributor.)

50,000 hrs. or more (each in continuous operation at 25 °C [77 °F] before backlight brightness decreases to 50%)

16 Levels (Adjusted with touch panel or software)

Resistive Film (analog)

1,000,000 times or more

Japanese: 6,962 (JIS Standards 1 & 2) (including 607 non-kanji characters), ANK: 158 (Korean, Traditional Chinese, Simplified Chinese, Thai and Cyrillic can be added from the font setting of the screen editor. )

Standard font: 8 x 8, 8 x 16, 16 x 16 and 32 x 32 pixel fonts, Stroke font: 6 to 127 pixel fonts, Image font: 8 to 72 pixel fonts

Standard font: Width can be expanded up to 8 times. Height can be expanded up to 8 times.*1

40 char. x 30 rows

40 char. x 15 rows

20 char. x 15 rows

10 char. x 7 rows

24 Vdc

20.4 to 28.8 Vdc

7 ms or less

6.8 W or less

30 A or less

IEC61000-4-4, 2kV Power port, 1kV Signal ports

1,000 Vac, 20 mA for 1 minute (between power terminal and FG terminals)

500 Vdc, 10 MΩ or more (between power terminal and FG terminals)

0 to 50 °C [32 to 122 °F]*2

-20 to +60 °C [-4 to 140 °F]

85 % RH (Wet bulb temperature: 39 °C [102.2 °F] max. - no condensation)

10% to 90% RH (Non condensing, wet bulb temperature 39 °C [102.2 °F] or less)

0.1 mg/m3 (10-7 oz/ft3) or less (non-conductive levels)

For use in Pollution Degree 2 environment

Free of corrosive gases

800 to 1,114 hPa (2,000 m [6,561 ft.] above sea level or less)

IEC/EN 61131-2 compliant, 5 to 9 Hz single amplitude 3.5 mm [0.14 in.]

IEC61000-4-2, 6 kV direct contact, 8 kV air contact

IEC/EN 61131-2 compliant, 147 m/s2, x,y,z 3 directions

When using GP-Pro EX:
- Media: FLASH EPROM
- Screen Area: 8MB *Use the screen area when the user font area's capacity is exceeded - for example, when an image font or a picture font is used.
- User Font Area: None
- Logic Program Area: 132KB (Equivalent to 15,000 steps) *Up to 60,000 steps can be converted in software. However, this reduces application memory capacity (for screen data) by 1 MB.
- Free Space: None
Removable System: No*3

When using GP-Pro EX:
- Screen Area: nvSRAM 128KB
- Variable Area: None
Battery: None*4

Uses the clock of an external device*5

Asynchronous Transmission: RS-232C / 422 / 485, Data Length: 7 or 8 bits, Stop Bit: 1 or 2 bits, Parity: None, Even or Odd, Data Transmission Speed: 2,400 to 115,200 bps, 187,500 bps (MPI), Connector: D-Sub 9 pin (plug)

Conforms to USB 2.0 (Type A) x 1
Power supply voltage: 5 Vdc ±5 %
Communication distance: 3 m [9.84 ft.] or less

Conforms to USB 2.0 (mini-B) x 1, Communication Distance: 5 m [16.4 ft] or less

IEEE802.3i / IEEE802.3u, 10BASE-T / 100BASE-TX, Connector: Modular jack (RJ-45) x 1

Functional grounding: Grounding resistance of 100 Ω, 2 mm2 (AWG 14) or thicker wire, or your country’s applicable standard (same for FG and SG terminals).

Natural air circulation

NEMA#250 TYPE 4X (indoor, installed in an enclosure)
Display module: IP65F
Rear module: IP20

0.62 kg [1.37 lb] or less

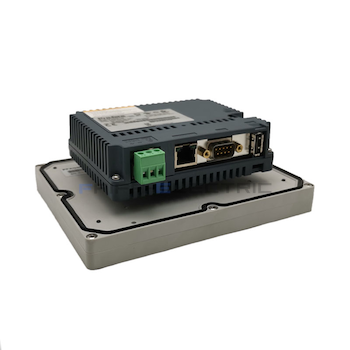

External Dimensions / Interfaces / Panel Cut-out
