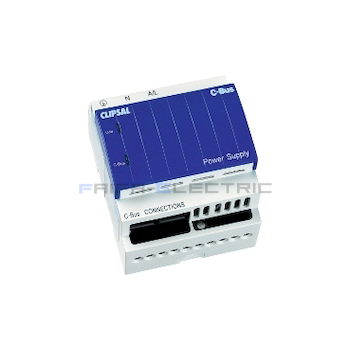

C-Bus Control and Management System, Power Supply, DIN Rail Mounted, 250V, 350mA
5500PS
อัตราค่าจัดส่ง
รายละเอียดสินค้า
5500PS Power Supply, 350mA, 250V
C-Bus Power Supply, DIN Rail Mounted, C-Bus Power Supply, DIN Rail mounted, 350mA.
Key Features
- 3,750 V RMS AC isolation mains/C-Bus
- 3 Seconds Warm-up time
- High efficiency switched mode power supply design
- DIN Rail mounted
Product Specifications
These specifications and characteristics outline physical, mechanical, electrical details.
| Type | Value |
|---|---|
| Brand Name | Clipsal |
| Sub Brand | C-Bus |
| Voltage type of supply voltage | AC |
| 1st secondary output voltage at AC | |
| 2nd secondary output voltage at AC | |
| 3rd secondary output voltage at AC | |
| 1st secondary output voltage at DC | 32 - 39 V |
| 2nd secondary output voltage at DC | |
| 3rd secondary output voltage at DC | |
| Max. output current 1 | 350 mA |
| Max. output current 2 | |
| Max. output current 3 | |
| Secondary voltage adjustable | |
| Short-circuit-proof | |
| Rated supply voltage at AC 50 Hz | 240 V |
| Rated supply voltage at AC 60 Hz | V |
| Rated supply voltage at DC | |
| Output voltage stabilized | |
| Power consumption | W |
| Power output | W |
| Stabilized | |
| Type of electric connection | |
| Rail mounting possible | |
| Wall mounting possible | |
| Modular version | |
| Built-in height | |
| Direct mounting possible | |
| Width | mm |
| Height | mm |
| Depth | mm |
| Suited for safety functions | |
| SIL according to IEC 61508 | |
| SIL according to IEC 62061 | |
| Performance level acc. to EN ISO 13849-1 | |
| Degree of protection (IP) |
| Range | C-Bus |
|---|---|
| Product brand | Clipsal |
| Product or component type | Power supply |
| Device application | Power supply |
| Secondary voltage | 32...39 V DC |
|---|---|
| Output current | <= 350 mA |
| [Us] rated supply voltage | 240 V AC 50 Hz |
| Supply circuit type | AC |
| number of lines feed | 1 |
| Number of modules | 4 |
| Local signalling | LED |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 9.77 cm |
| Package 1 Width | 11.164 cm |
| Package 1 Length | 15.586 cm |
| Package 1 Weight | 290.0 g |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 8 |
| Package 2 Height | 23.1 cm |
| Package 2 Width | 24.6 cm |
| Package 2 Length | 34.5 cm |
| Package 2 Weight | 2.941 kg |
