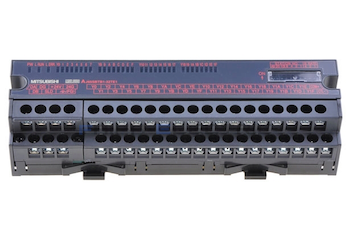

AJ65SBTB1-32TE1, PLC CC-Link compact I/O module; 32 outputs; source; 0.5 A; screw type
AJ65SBTB1-32TE1
อัตราค่าจัดส่ง
รายละเอียดสินค้า
| Series | CC-LINK |
|---|---|
| Type | REMOTE TRANSISTOR OUTPUT |
| Power Supply (V) | 24 |
| Current Type | DC |
| Occupied Stations | 1 |
| Integrated Digital Outputs | 32 |
| Output Type | TRANSISTOR |
| Output Logic | SOURCE |
| Rated Load Voltage (VDC) | 12/24 |
| Wiring | SCREW |
| Int. Current Consumption (A) | 0,065 |
ข้อมูลสินค้า
CC-Link Related Product Model Names
Mitsubishi Electric Corporation
|
Type |
Model |
Specifications |
Protection level |
CC-Link version*1 |
|
|
Master/local module |
RJ61BT11 |
Master/local module for MELSEC iQ-R Series |
- |
2.00 |
|
|
FX5-CCL-MS |
Master Intelligent Module for MELSEC iQ-F Series |
- |
2.00 |
||
|
QJ61BT11N |
Master/local module for MELSEC-Q Series |
- |
2.00 |
||
|
L26CPU-BT |
CPU with master/local function for MELSEC-L Series Sink output type |
- |
2.00 |
||
|
L26CPU-PBT |
CPU with master/local function for MELSEC-L Series Source output type |
- |
2.00 |
||
|
LJ61BT11 |
Master/local module for MELSEC-L Series |
- |
2.00 |
||
|
FX3U-16CCL-M |
Master block for MELSEC-FX Series (FX3G/FX3U/FX3GC/FX3UC) |
- |
2.00 |
||
|
Bridge module |
NZ2GF-CCB |
CC-Link IE Field Network-CC-Link bridge module |
- |
1.10 |
|
|
NZ2AW1C1BY |
CC-Link-AnyWire Bitty bridge module |
- |
1.10 |
||
|
NZ2AW1C2D2 |
CC-Link-AnyWire DB A20 bridge module |
- |
2.00 |
||
|
NZ2AW1C2AL |
CC-Link-AnyWireASLINK bridge module |
- |
2.00 |
||
|
Remote I/O module |
Screw terminal block type |
AJ65SBTB2N-8A |
Input 8 points: 100...120 V AC 2-wire type Response time 20 ms |
IP1X |
1.10 |
|
AJ65SBTB2N-16A |
Input 16 points: 100...120 V AC 2-wire type Response time 20 ms |
IP1X |
1.10 |
||
|
AJ65SBTB1-8D |
Input 8 points: 24 V DC (positive/negative common shared) 1-wire type Response time 1.5 ms |
IP2X |
1.10 |
||
|
AJ65SBTB3-8D |
Input 8 points: 24 V DC (positive/negative common shared) 3-wire type Response time 1.5 ms |
IP2X |
1.10 |
||
|
AJ65SBTB1-16D |
Input 16 points: 24 V DC (positive/negative common shared) 1-wire type Response time 1.5 ms |
IP2X |
1.10 |
||
|
AJ65SBTB1-16D1 |
Input 16 points: 24 V DC (positive/negative common shared) 1-wire type Response time 0.2 ms |
IP2X |
1.10 |
||
|
AJ65SBTB3-16D |
Input 16 points: 24 V DC (positive/negative common shared) 3-wire type Response time 1.5 ms |
IP2X |
1.10 |
||
|
AJ65SBTB3-16KD |
Input 16 points: 24 V DC (positive/negative common shared) 3-wire type Response time 0.2/1.5/5/10 ms switching type |
IP2X |
1.10 |
||
|
AJ65SBTB1-32D |
Input 32 points: 24 V DC (positive/negative common shared) 1-wire type Response time 1.5 ms |
IP2X |
1.10 |
||
|
AJ65SBTB1-32D1 |
Input 32 points: 24 V DC (positive/negative common shared) 1-wire type Response time 0.2 ms |
IP2X |
1.10 |
||
|
AJ65SBTB1-32D5 |
Input 32 points: 5 V DC (positive/negative common shared) 1-wire type Response time 1.5 ms |
IP2X |
1.10 |
||
|
AJ65SBTB1-32KD |
Input 32 points: 24 V DC (positive/negative common shared) 1-wire type Response time 0.2/1.5/5/10 ms switching type |
IP2X |
1.10 |
||
|
AJ65SBTB1-8T |
Output 8 points: 12/24 V DC (0.5 A) Transistor output (sink type) 1-wire type |
IP2X |
1.10 |
||
|
AJ65SBTB1-8T1 |
Output 8 points: 12/24 V DC (0.5 A) Transistor output (sink type) 1-wire type Low-leakage current type |
IP2X |
1.10 |
||
|
AJ65SBTB2-8T |
Output 8 points: 12/24 V DC (0.5 A) Transistor output (sink type) 2-wire type |
IP2X |
1.10 |
||
|
AJ65SBTB2-8T1 |
Output 8 points: 12/24 V DC (0.5 A) Transistor output (sink type) 2-wire type Low-leakage current type |
IP2X |
1.10 |
||
|
AJ65SBTB1-16T |
Output 16 points: 12/24 V DC (0.5 A) Transistor output (sink type) 1-wire type |
IP2X |
1.10 |
||
|
AJ65SBTB1-16T1 |
Output 16 points: 12/24 V DC (0.5 A) Transistor output (sink type) 1-wire type Low-leakage current type |
IP2X |
1.10 |
||
|
AJ65SBTB2-16T |
Output 16 points: 12/24 V DC (0.5 A) Transistor output (sink type) 2-wire type |
IP2X |
1.10 |
||
|
AJ65SBTB2-16T1 |
Output 16 points: 12/24 V DC (0.5 A) Transistor output (sink type) 2-wire type Low-leakage current type |
IP2X |
1.10 |
||
|
AJ65SBTB1-32T |
Output 32 points: 12/24 V DC (0.5 A) Transistor output (sink type) 1-wire type |
IP2X |
1.10 |
||
|
AJ65SBTB1-32T1 |
Output 32 points: 12/24 V DC (0.5 A) Transistor output (sink type) 1-wire type Low-leakage current type |
IP2X |
1.10 |
||
|
AJ65SBTB1-8TE |
Output 8 points: 12/24 V DC (0.1 A) Transistor output (source type) 1-wire type |
IP2X |
1.10 |
||
|
AJ65SBTB1-16TE |
Output 16 points: 12/24 V DC (0.1 A) Transistor output (source type) 1-wire type |
IP2X |
1.10 |
||
|
AJ65SBTB1B-16TE1 |
Output 16 points: 12/24 V DC (0.5 A) Transistor output (source type) 1-wire type |
IP2X |
1.10 |
||
|
AJ65SBTB1-32TE1 |
Output 32 points: 12/24 V DC (0.5 A) Transistor output (source type) 1-wire type |
IP2X |
1.10 |
||
|
AJ65SBTB2N-8R |
Output 8 points: 24 V DC/240 V AC (2 A) Relay output 2-wire type |
IP1X |
1.10 |
||
|
AJ65SBTB2N-16R |
Output 16 points: 24 V DC/240 V AC (2 A) Relay output 2-wire type |
IP1X |
1.10 |
||
|
AJ65SBTB2N-8S |
Output 8 points: 100...240 V AC (0.6 A) Triac output 2-wire type |
IP1X |
1.10 |
||
|
AJ65SBTB2N-16S |
Output 16 points: 100...240 V AC (0.6 A) Triac output 2-wire type |
IP1X |
1.10 |
||
|
AJ65SBTB32-8DT |
Input 4 points: 24 V DC (positive common) 3-wire type Response time 1.5 ms Output 4 points: 24 V DC (0.5 A) Transistor output (sink type) 2-wire type |
IP2X |
1.10 |
||
|
AJ65SBTB32-8DT2 |
Input 4 points: 24 V DC (positive common) 3-wire type Response time 1.5 ms Output 4 points: 24 V DC (0.5 A) Transistor output (sink type) 2-wire type Low-leakage current type |
IP2X |
1.10 |
||
|
AJ65SBTB1-16DT |
Input 8 points: 24 V DC (positive common) 1-wire type Response time 1.5 ms Output 8 points: 24 V DC (0.5 A) Transistor output (sink type) 1-wire type |
IP2X |
1.10 |
||
|
AJ65SBTB1-16DT1 |
Input 8 points: 24 V DC (positive common) 1-wire type Response time 0.2 ms Output 8 points: 24 V DC (0.5 A) Transistor output (sink type) 1-wire type |
IP2X |
1.10 |
||
|
AJ65SBTB1-16DT2 |
Input 8 points: 24 V DC (positive common) 1-wire type Response time 1.5 ms Output 8 points: 24 V DC (0.5 A) Transistor output (sink type) 1-wire type Low-leakage current type |
IP2X |
1.10 |
||
|
AJ65SBTB1-16DT3 |
Input 8 points: 24 V DC (positive common) 1-wire type Response time 0.2 ms Output 8 points: 24 V DC (0.5 A) Transistor output (sink type) 1-wire type Low-leakage current type |
IP2X |
1.10 |
||
|
AJ65SBTB32-16DT |
Input 8 points: 24 V DC (positive common) 3-wire type Response time 1.5 ms Output 8 points: 24 V DC (0.5 A) Transistor output (sink type) 2-wire type |
IP2X |
1.10 |
||
|
AJ65SBTB32-16DT2 |
Input 8 points: 24 V DC (positive common) 3-wire type Response time 1.5 ms Output 8 points: 24 V DC (0.5 A) Transistor output (sink type) 2-wire type Low-leakage current type |
IP2X |
1.10 |
||
|
AJ65SBTB1-32DT |
Input 16 points: 24 V DC (positive common) 1-wire type Response time 1.5 ms Output 16 points: 24 V DC (0.5 A) Transistor output (sink type) 1-wire type |
IP2X |
1.10 |
||
|
AJ65SBTB1-32DT1 |
Input 16 points: 24 V DC (positive common) 1-wire type Response time 0.2 ms Output 16 points: 24 V DC (0.5 A) Transistor output (sink type) 1-wire type |
IP2X |
1.10 |
||
|
AJ65SBTB1-32DT2 |
Input 16 points: 24 V DC (positive common) 1-wire type Response time 1.5 ms Output 16 points: 24 V DC (0.5 A) Transistor output (sink type) 1-wire type Low-leakage current type |
IP2X |
1.10 |
||
|
AJ65SBTB1-32DT3 |
Input 16 points: 24 V DC (positive common) 1-wire type Response time 0.2 ms Output 16 points: 24 V DC (0.5 A) Transistor output (sink type) 1-wire type Low-leakage current type |
IP2X |
1.10 |
||
|
AJ65SBTB1-32KDT2 |
Input 16 points: 24 V DC (positive common) 1-wire type Response time 0.2/1.5/5/10 ms switching type Output 16 points: 24 V DC (0.5 A) Transistor output (sink type) 1-wire type Low-leakage current type |
IP2X |
1.10 |
||
|
AJ65SBTB1-32DTE1 |
Input 16 points: 24 V DC (negative common) 1-wire type Response time 1.5 ms Output 16 points: 24 V DC (0.5 A) Transistor output (source type) 1-wire type |
IP2X |
1.10 |
||
|
AJ65SBTB32-16DR |
Input 8 points: 24 V DC (positive/negative common shared) 3-wire type Response time 1.5 ms Output 8 points: 24 V DC/240 V AC (2 A) Relay output 2-wire type |
IP1X |
1.10 |
||
|
AJ65SBTB32-16KDR |
Input 8 points: 24 V DC (positive/negative common shared) 3-wire type Response time 0.2/1.5/5/10 ms switching type Output 8 points: 24 V DC/240 V AC (2 A) Relay output 2-wire type |
IP1X |
1.10 |
||
*1: This is the CC-Link version supported by each module. For the CC-Link version supported by the system and its combinations, etc., please refer to the manual of the master station.
