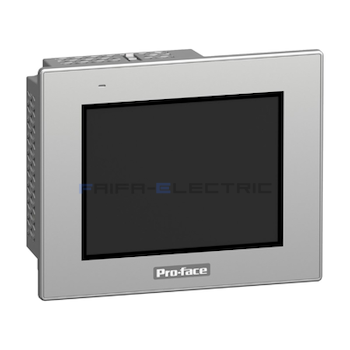

PFXST6300TADE

PFXST6300TADE, 5.7" VGA Basic HMI, ProEX, ST6300T

PFXST6300TADE

HMI
อัตราค่าจัดส่ง

รายละเอียดสินค้า

Display Type
TFT Color LCD
Display Size
(5.7-inch)
Resolution
640 x 480 pixels
Effective Display Area
115.2 x 86.4 mm (4.54 x 3.40 in)
Display Colors
262,144 colors
Backlight
Backlight White LED (Not user replaceable. When replacement is required, contact
customer support.)
Brightness Control
16 levels (Adjusted with touch panel or software)
Backlight Service Life
50,000 hours or more (continuous operation at 25 °C [77 °F] before backlight brightness
decreases to 25%)
Touch Panel Type
Resistive film (analog, single touch)
Touch Panel Resolution
1024 x 1024
Serial (COM1)
Asynchronous Transmission: RS-232C, Data Length: 7 or 8 bits, Stop Bit: 1 or 2 bits,
Parity: None, Even or Odd, Data Transmission Speed: 2,400 to 115,200 bps, Connector:
D-Sub 9 (plug)
Serial (COM2)
Asynchronous Transmission: RS-422/485, Data Length: 7 or 8 bits, Stop Bit: 1 or 2 bits,
Parity: None, Even or Odd, Data Transmission Speed: 2,400 to 115,200 bps, Connector:
D-Sub 9 (plug)
Ethernet (LAN1)
IEEE802.3i/IEEE802.3u, 10BASE-T/100BASE-TX, Connector: Modular jack (RJ-45) x 1
USB (TYPE-A)
Conforms to USB 2.0 (Type A) x 1 Power supply voltage: 5 Vdc ±5 % Output Current:
500 mA/port Maximum transmission distance : 5 m [16.4 ft.]
USB (mini-B)
Conforms to USB 2.0 (micro-B) x 1, Maximum transmission distance : 5 m [16.4 ft]



5.7" touch panel display, 2COM, 1Ethernet, USB host & device, 24VDC, GP-ProEX model

ข้อมูลสินค้า

ST6000 Series Lineup / Specifications

Wide Model

Product Name Display Size Software Model No Color Touch Panel Interface Details

ST-6700WA		 15" Wide
(FWXGA)		 BLUE

PFXST6700WAD

 16 million
colors		 Resistive film
(analog)		 COM1: RS-232C
COM2: RS-422/485
Ethernet x 2
USB Type A x 1
USB micro-B x 1		 Specifications
GP-Pro EX

PFXST6700WADE

 Specifications

ST-6600WA		 12" Wide
(WXGA)		 BLUE PFXST6600WAD Specifications
GP-Pro EX PFXST6600WADE Specifications

ST-6500WA		 10" Wide
(WSVGA)		 BLUE PFXST6500WAD Specifications
GP-Pro EX PFXST6500WADE Specifications

ST-6400WA		 7" Wide
(WVGA)		 BLUE PFXST6400WAD Specifications
GP-Pro EX PFXST6400WADE Specifications

ST-6200WA		 4" Wide
(WQVGA)		 BLUE PFXST6200WAD COM1: RS-232C/422/485
Ethernet x 1
USB Type A x 1
USB micro-B x 1		 Specifications
GP-Pro EX PFXST6200WADE Specifications

4:3 Model

Product Name Display Size Software Model No Color Touch Panel Interface Details

ST-6500T		 10.4" (SVGA) BLUE PFXST6500TADE 16 million
colors		 Resistive film
(analog)		 COM1: RS-232C
COM2: RS-422/485
Ethernet x 1
USB Type A x 1
USB micro-B x 1
SD Card I/F		 Specifications

ST-6300T		 5.7" (VGA) PFXST6300TADE 262,144 colors COM1: RS-232C
COM2: RS-422/485
Ethernet x 1
USB Type A x 1
USB micro-B x 1		 Specifications



Catalog
