Display Specifications
| Display Type |
TFT Color LCD |
| Display Size |
15” |
| Resolution |
1,024 x 768 pixels (XGA) |
| Auto Scaling |
Yes |
| Effective Display Area |
W304.1 x H228.1 mm
(W11.97 x H8.98 in.) |
| Display Colors |
16 million colors
For details about Display Colors, refer to the manual for your screen editing software. |
| Backlight |
White LED
(Not user replaceable. When replacement is required, contact your local distributor.) |
| Backlight Service Life |
50,000 hours or more (continuos operation at 25 °C [77 °F]
before backlight brightness decreases to 50% |
| Brightness Control |
0...100 (Adjusted with touch panel or software) |
| Brightness Sensor |
Yes |
Touch
Panel |
Type |
Resistive Film (analog, multi-touch) |
| Resolution |
1,024 x 1,024 |
| Service Life |
1 million times or more |
Electrical Specifications
Power
Supply |
Rated Input Voltage |
12...24 Vdc |
| Input Voltage Limits |
10.8...28.8 Vdc |
| Voltage Drop |
12 Vdc: 1.25 ms or less
24 Vdc: 5 ms or less |
Power Consumption
(Primary Power Supply
[including power loss]) |
Max. 57 W |
| In-Rush Current |
30 A or less |
| Voltage Endurance |
1,000 Vac, 20 mA for 1 minute (between charging and FG terminals) |
| Insulation Resistance |
500 Vdc, 10 MΩ or more (between charging and FG terminals) |
Environmental Specifications
International
Safety Standard |
 |
Physical
Environment |
Surrounding
Air Temperature |
0...60 °C (32...140 °F) |
| Storage Temperature |
-20...60 °C (-4...140 °F) |
Surrounding Air and
Storage Humidity |
10%...90% RH (Non condensing, wet bulb temperature
39 °C [102.2 °F] or less) |
| Dust |
0.1 mg/m3 (10-7 oz/ft3) or less (non-conductive levels) |
| Pollution Degree |
For use in Pollution Degree 2 environment |
| Corrosive Gases |
Free of corrosive gases |
Atmospheric Pressure
(Operating Altitude) |
800...1,114 hPa (2,000 m [6,561 ft] or lower) |
Mechanical
Environment |
Vibration
Resistance |
IEC/EN 61131-2 compliant
5...9 Hz Single amplitude 3.5 mm (0.14 in.)
9...150 Hz Fixed acceleration: 9.8 m/s2
X, Y, Z directions for 10 cycles (approx. 100 min.) |
| Shock Resistance |
IEC/EN 61131-2 compliant
147 m/s2, X, Y, Z directions for 3 times |
Electrical
Environment |
Noise Immunity |
Noise Voltage: 1,000 Vp-p
Pulse Duration: 1 μs
Rise Time: 1 ns
(via noise simulator) |
Electrostatic
Discharge Immunity |
Contact Discharge Method: 6 kV (IEC/EN 61000-4-2 Level 3) |
NOTE: When using any of the options for this product, make sure to check the specifications for any special conditions or cautions that may apply to this product.
Memory
| Application Memory |
Screen Size: 64MB *CFast card |
| Free Space: About 7GB *1 |
| Video Memory |
Up to 256 MB (UMA main memory) |
| L2 Cache Memory |
1 MB |
*1 You can install the applications you have used. As for hardware specifications, the CPU is Intel® AtomTM E3825 1.33 GHz (Dual core/Dual thread) and the main memory is 'DDR3L SDRAM 2GB'. For the other hardware specifications, refer to "SP5000 Series Open Box Reference Manual".
Interface Specifications(Display)
USB (Type A)
Interface |
Connector |
USB 2.0 (Type A) x 1 |
| Power Supply Voltage |
5 Vdc ±5% |
Maximum Current
Supplied |
500 mA |
Maximum Transmission
Distance |
5 m (16.4 ft) |
USB (mini-B)
Interface |
Connector |
USB 2.0 (mini-B) x 1 |
Maximum Transmission
Distance |
5 m (16.4 ft) |
Interface Specifications(Box Module)
| Serial Interface COM1 |
Asynchronous Transmission |
RS-232C/422/485 |
| Data Length |
7 or 8 bits |
| Stop Bit |
1 or 2 bits |
| Parity |
None, odd, or even |
| Data Transmission Speed |
2,400(1,200)...115,200 bps |
| Connector |
D-Sub 9 pin (plug) |
| Serial Interface COM2 |
Asynchronous Transmission |
RS-232C/422/485 |
| Data Length |
7 or 8 bits |
| Stop Bit |
1 or 2 bits |
| Parity |
None, odd, or even |
| Data Transmission Speed |
2,400(1,200)...115,200 bps |
| Connector |
D-Sub 9 pin (plug) |
| USB (Type A) Interface |
Connector |
USB 2.0 (Type A) x 3 |
| Power Supply Voltage |
5 Vdc ±5% |
| Maximum Current Supplied |
500 mA/port,
1 A total for 3 ports |
| Maximum Transmission Distance |
5 m (16.4 ft) |
| USB (mini-B) Interface |
Connector |
USB 2.0 (mini-B) x 1 |
| Maximum Transmission Distance |
5 m (16.4 ft) |
| Ethernet Interface |
Standard |
IEEE802.3i/IEEE802.3u/IEEE802.3ab,
10BASE-T/100BASE-TX/1000BASE-T |
| Connector |
Modular jack (RJ-45) x 2 |
| SD Card Interface |
SD Card |
SD Card Slot(Storage) x 1 |
| CFast Card Interface |
CFast Card |
CFast Card Slot(System) x 1
CFast Card Slot(Storage) x 1 |
| Expansion Unit Interface |
Expansion Unit |
Fieldbus Unit x 1 |
| Video Interface |
DVI-D |
DVI-D OUT |
| Connector |
DVI-D 24 pin(socket) x 1 |
| Sound Input Interface |
Sound Input |
MIC or LINE input(software switch) |
| Connector |
MINI-JACK ∅3.5 x 1 |
| Sound Output Interface |
Speaker Output |
300 mW (Rated Load: 8 Ω,
Frequency: 1 kHz) |
| LINE Output |
Rated load: 10 kΩ or more |
| Connector |
2-piece terminal block (AUX) x 1 |
| AUX Output Interface |
AUX Output |
Alarm Output/Buzzer Output |
| Rated Voltage |
24 Vdc |
| Rated Current |
50 mA or less |
| Connector |
2-piece terminal block (AUX) x 1 |
Structural Specifications
| Grounding |
Functional grounding: Grounding resistance of 100 Ω,2 mm2 (AWG 14) or thicker wire,
or your country’s applicable standard (same for FG and SG terminals). |
| Cooling Method |
Natural air circulation |
| Structure *2 |
When using a factory-installed front USB cover: IP65F, IP67F.
When using a front USB cover as an option: IP66F, IP67F, Type 4X (Indoor Use Only)/13
* The front face of this product when properly installed in an enclosure and
not using thefront panel USB port.
NOTE: The option is a front USB cover with screw manufactured by Pro-face
(Model Number PFXZCDCVUS1). |
External
Dimensions(Display) |
W397 x H296 x D67 mm(W15.6 x H11.7 x D2.64 in.) |
External
Dimensions(Box Module) |
W188 x H131 x D45 mm(W7.4 x H5.16 x D1.77 in.) |
Panel Cut
Dimensions |
W383.5 x H282.5 mm(W15.1 x H11.12 in.) *3
Panel thickness area:1.6...5 mm (0.06...0.2 in.) *4 |
| Weight *5 |
5.4 kg (11.88 lb) or less |
*2 The front face of this product, installed in a solid panel, has been tested using conditions equivalent to the standards shown in the specification.
*3 For dimensional tolerance, everything +1/-0 mm (+0.04/-0 in.) and R in angle are below R3 (R0.12 in.)
*4 Even if the installation wall thickness is within the recommended range for the “Panel Cut Dimensions”, depending on wall’s material, size, and installation location of this product and other devices, the installation wall could warp. To prevent warping, the installation surface may need to be strengthened.
*5 The weight for the combined unit of Box Module and Display Module equals the sum of the weight for the Modules.
External Dimensions
| SP-5700TP |
 |

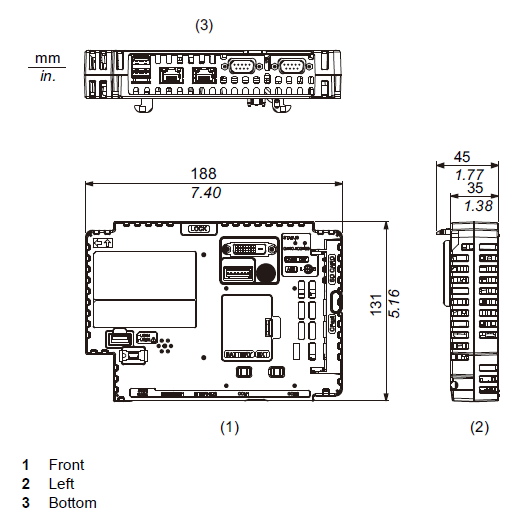

| SP-5B41 |
 |

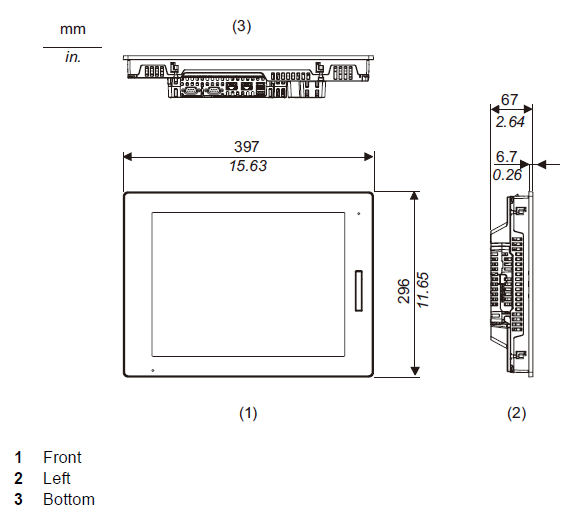

SP-5700TP with_Box_Module
|
 |
Panel Cut-out
| Model Name |
A |
B |
C |
| SP-5700TP |
383.5 mm (+1/-0 mm)
(15.1 in. [+0.04/-0 in.]) |
282.5 mm (+1/-0 mm)
(11.12 in. [+0.04/-0 in.]) |
1.6...5 mm
(0.06...0.2 in.) |

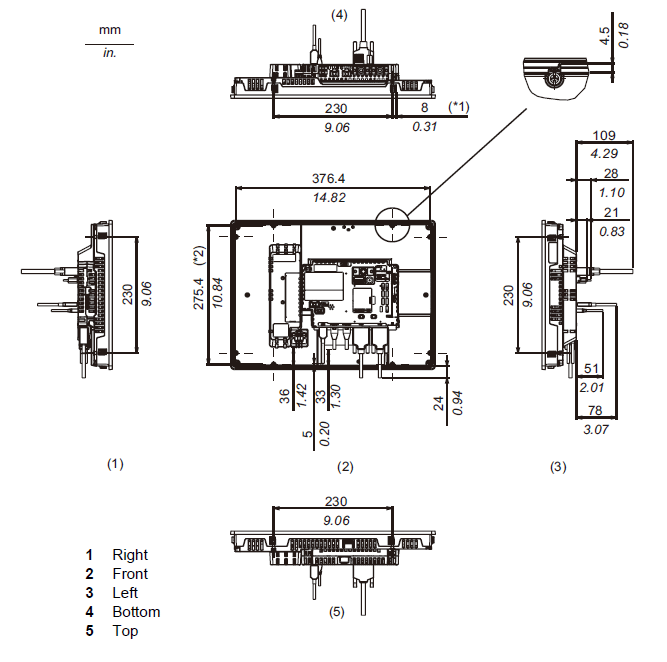

External Dimensions with cables
|
*1 Rotation area of the fastener
*2 Pitch of center of installation fastener screws |
ข้อมูลสินค้า
SP5000 Series Lineup / Specifications
Module Configuration
| Premium Display |
Advanced Display |
Open Box |
Power Box |
Standard Box |
| Industry's top-class display with high display quality and versatile functions |
Sophisticated display with high display quality |
Enable to use Windows Applications via HMI |
Reliable real-time OS installed in HMI
High performance & Extended HMI |
Reliable real-time OS installed in HMI
High performance HMI |
| SP-5800WC, SP-5700WC, SP-5700TP, SP-5660TP, SP-5600TP, SP-5500TP |
SP-5600TA, SP-5600WA,
SP-5500WA, SP-5400WA |
SP-5B41
(End of Sale: Apr 30, 2025)
SP-5B411
SP-5B412 |
SP-5B10 |
SP-5B00 |
| Specifications about Display Module |
Specifications about Box Module |
Display Module
| Display Type |
Product Name |
Model No. |
Display
Size |
Display
Colors |
Touch Panel
Type |
Front
USB |
Brightness
Sensor |
Auto
Scaling |
Details |
| Premium |
SP-5800WC |
PFXSP5800WCD |
19" Wide
(FWXGA) |
16 million |
Projected
Capacitive
(multi-touch) |
Yes |
Yes |
Yes |
Datasheet
（PDF） |
| SP-5700WC |
PFXSP5700WCD |
15" Wide
(FWXGA) |
| SP-5700TP |
PFXSP5700TPD |
15"
(XGA) |
Analog
Resistive
Film
(multi-touch) |
| SP-5660TP |
PFXSP5660TPD |
12"
(XGA) |
| SP-5600TP |
PFXSP5600TPD |
12"
(XGA) |
| SP-5500TP |
PFXSP5500TPD |
10"
(SVGA) |
| Advanced |
SP-5600TA |
PFXSP5600TAD |
12"
(XGA) |
262,144 |
Analog
Resistive
Film |
No |
No |
No |
| SP-5600WA |
PFXSP5600WAD |
12" Wide
(WXGA) |
| SP-5500WA |
PFXSP5500WAD |
10" Wide
(WXGA) |
| SP-5400WA |
PFXSP5400WAD |
7" Wide
(WVGA) |
Box Module
| Box Type |
Product Name |
Model No. |
Windows
Application |
Expansion Unit |
Sound Output |
AUX Output |
Details |
| Open |
WES 7 |
SP-5B41
(End of Sale: Apr 30, 2025) |
PFXSP5B41* |
Yes |
Yes |
Yes |
Yes |
Datasheet
（PDF） |
Windows 10
(HMI Runtime not inclueded) |
SP-5B411 |
Windows 10
(HMI Runtime inclueded) |
SP-5B412 |
| Power |
SP-5B10 |
PFXSP5B10 |
- |
| Standard |
SP-5B00 |
PFXSP5B00 |
- |
- |
- |
Display Module x Box Module
| Screen Size |
Product
Name |
Bright-
ness
Sensor/
Auto
Scaling/
Front
USB/
Multi-
touch |
Win-
dows
Apps |
Video/
Sound |
Remov-
able
System |
CFast
(Stor-
age) |
SD
(Stor-
age) |
USB
Type A |
USB
mini B |
SIO |
Ether
-net |
Rated
Voltage |
Details |
19" Wide
(FWXGA)
|
SP-5800WC
+
SP-5B411 / SP-5B412 |
Yes |
Yes |
Yes |
Yes |
x 1 |
x 1 |
x 4 |
x 2 |
x 2 |
x 2 |
12 to
24 Vdc |
Display/
Box |
SP-5800WC
+
SP-5B10 |
Yes |
- |
- |
Yes |
- |
x 1 |
x 3 |
x 2 |
x 2 |
x 2 |
12 to
24 Vdc |
Display/
Box |
SP-5800WC
+
SP-5B00 |
Yes |
- |
- |
- |
- |
x 1 |
x 3 |
x 2 |
x 2 |
x 2 |
12 to
24 Vdc |
Display/
Box |
15" Wide
(FWXGA)
|
SP-5700WC
+
SP-5B411 / SP-5B412 |
Yes |
Yes |
Yes |
Yes |
x 1 |
x 1 |
x 4 |
x 2 |
x 2 |
x 2 |
12 to
24 Vdc |
Display/
Box |
SP-5700WC
+
SP-5B10 |
Yes |
- |
- |
Yes |
- |
x 1 |
x 3 |
x 2 |
x 2 |
x 2 |
12 to
24 Vdc |
Display/
Box |
SP-5700WC
+
SP-5B00 |
Yes |
- |
- |
- |
- |
x 1 |
x 3 |
x 2 |
x 2 |
x 2 |
12 to
24 Vdc |
Display/
Box |
15"
(XGA)
|
SP-5700TP
+
SP-5B411 / SP-5B412 |
Yes |
Yes |
Yes |
Yes |
x 1 |
x 1 |
x 4 |
x 2 |
x 2 |
x 2 |
12 to
24 Vdc |
Display/
Box |
SP-5700TP
+
SP-5B10 |
Yes |
- |
- |
Yes |
- |
x 1 |
x 3 |
x 2 |
x 2 |
x 2 |
12 to
24 Vdc |
Display/
Box |
SP-5700TP
+
SP-5B411 / SP-5B412 |
Yes |
- |
- |
- |
- |
x 1 |
x 3 |
x 2 |
x 2 |
x 2 |
12 to
24 Vdc |
Display/
Box |
12"
(XGA)
Wireless LAN Model
|
SP-5660TP
+
SP-5B411 / SP-5B412 |
Yes |
Yes |
Yes |
Yes |
x 1 |
x 1 |
x 4 |
x 2 |
x 2 |
x 2 |
12 to
24 Vdc |
Display/
Box |
12"
(XGA)
|
SP-5600TP
+
SP-5B411 / SP-5B412 |
Yes |
Yes |
Yes |
Yes |
x 1 |
x 1 |
x 4 |
x 2 |
x 2 |
x 2 |
12 to
24 Vdc |
Display/
Box |
SP-5600TP
+
SP-5B10 |
Yes |
- |
- |
Yes |
- |
x 1 |
x 3 |
x 2 |
x 2 |
x 2 |
12 to
24 Vdc |
Display/
Box |
SP-5600TP
+
SP-5B00 |
Yes |
- |
- |
- |
- |
x 1 |
x 3 |
x 2 |
x 2 |
x 2 |
12 to
24 Vdc |
Display/
Box |
12"
(XGA)
|
SP-5600TA
+
SP-5B411 / SP-5B412 |
- |
Yes |
Yes |
Yes |
x 1 |
x 1 |
x 3 |
x 1 |
x 2 |
x 2 |
12 to
24 Vdc |
Display/
Box |
SP-5600TA
+
SP-5B10 |
- |
- |
- |
Yes |
- |
x 1 |
x 2 |
x 1 |
x 2 |
x 2 |
12 to
24 Vdc |
Display/
Box |
SP-5600TA
+
SP-5B00 |
- |
- |
- |
- |
- |
x 1 |
x 2 |
x 1 |
x 2 |
x 2 |
12 to
24 Vdc |
Display/
Box |
12" Wide
(WXGA)
|
SP-5600WA
+
SP-5B411 / SP-5B412 |
- |
Yes |
Yes |
Yes |
x 1 |
x 1 |
x 3 |
x 1 |
x 2 |
x 2 |
12 to
24 Vdc |
Display/
Box |
SP-5600WA
+
SP-5B10 |
- |
- |
- |
Yes |
- |
x 1 |
x 2 |
x 1 |
x 2 |
x 2 |
12 to
24 Vdc |
Display/
Box |
SP-5600WA
+
SP-5B00 |
- |
- |
- |
- |
- |
x 1 |
x 2 |
x 1 |
x 2 |
x 2 |
12 to
24 Vdc |
Display/
Box |
10"
(SVGA)
|
SP-5500TP
+
SP-5B411 / SP-5B412 |
Yes |
Yes |
Yes |
Yes |
x 1 |
x 1 |
x 4 |
x 2 |
x 2 |
x 2 |
12 to
24 Vdc |
Display/
Box |
SP-5500TP
+
SP-5B10 |
Yes |
- |
- |
Yes |
- |
x 1 |
x 3 |
x 2 |
x 2 |
x 2 |
12 to
24 Vdc |
Display/
Box |
SP-5500TP
+
SP-5B00 |
Yes |
- |
- |
- |
- |
x 1 |
x 3 |
x 2 |
x 2 |
x 2 |
12 to
24 Vdc |
Display/
Box |
10" Wide
(WXGA)
|
SP-5500WA
+
SP-5B41 |
- |
Yes |
Yes |
Yes |
x 1 |
x 1 |
x 3 |
x 1 |
x 2 |
x 2 |
12 to
24 Vdc |
Display/
Box |
SP-5500WA
+
SP-5B10 |
- |
- |
- |
Yes |
- |
x 1 |
x 2 |
x 1 |
x 2 |
x 2 |
12 to
24 Vdc |
Display/
Box |
SP-5500WA
+
SP-5B00 |
- |
- |
- |
- |
- |
x 1 |
x 2 |
x 1 |
x 2 |
x 2 |
12 to
24 Vdc |
Display/
Box |
7" Wide
(WVGA)
|
SP-5400WA
+
SP-5B411 / SP-5B412 |
- |
Yes |
Yes |
Yes |
x 1 |
x 1 |
x 3 |
x 1 |
x 2 |
x 2 |
12 to
24 Vdc |
Display/
Box |
SP-5400WA
+
SP-5B10 |
- |
- |
- |
Yes |
- |
x 1 |
x 2 |
x 1 |
x 2 |
x 2 |
12 to
24 Vdc |
Display/
Box |
SP-5400WA
+
SP-5B00 |
- |
- |
- |
- |
- |
x 1 |
x 2 |
x 1 |
x 2 |
x 2 |
12 to
24 Vdc |
Display/
Box |

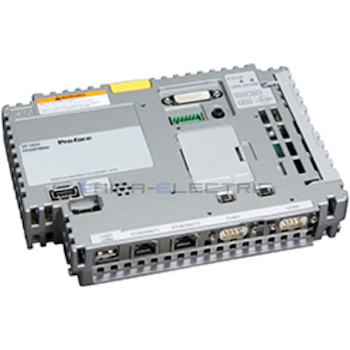

_2.JPG&ww=350&hh=350 "PFXSP5700TPD(OB) : PFXSP5700TPD + PFXSP5B41")
_2.JPG&ww=120&hh=120 "PFXSP5700TPD(OB) : PFXSP5700TPD + PFXSP5B41")
