NB7W-TW01B

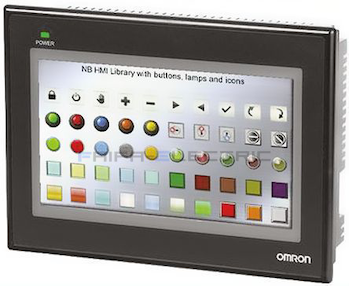

Touch screen HMI, 7 inch WVGA (800 x 480 pixel), TFT color, Ethernet + USB Host

NB7W-TW01B

HMI
อัตราค่าจัดส่ง

รายละเอียดสินค้า

Specifications

Screen diagonal7 in
Number of pixels, horizontal800
Number of pixels, vertical480
Type of displayTFT
Frame colourBlack
Number of Ethernet ports1
Number of RS-232 ports2
Number of RS-422 ports1
Number of RS-485 ports1
Number of USB ports2
Number of colours of the display65536
Number of grey-scales/blue-scales of display64
Degree of protection (IP), front sideIP65
Width of the front202.0 mm
Height of the front148 mm
Width of panel cutout191 mm
Height of panel cutout137 mm
Built-in depth46 mm
Product Weight (unpacked)1000 g

Accessories

CP1W-CN221USB Programming cable, A-type male to B-type male, 1.8 m
NB7W-KBA04Protective sheets for NB7W (5 sheets)
XW2Z-200TCable, RS-232C, for connecting NT HMI 9-pin port to PLC 9-pin port, 2 m
XW2Z-500TCable, RS-232C, for connecting NT HMI 9-pin port to PLC 9-pin port, 5 m

ข้อมูลสินค้า

HMI panels

Product name

Specifications

Order code

NB3Q

3.5 inch, TFT LCD, Color, 320 × 240 dots

NB3Q-TW00B

3.5 inch, TFT LCD, Color, 320 × 240 dots, USB Host, Ethernet

NB3Q-TW01B

NB5Q

5.6 inch, TFT LCD, Color, 320 × 234 dots

NB5Q-TW00B

5.6 inch, TFT LCD, Color, 320 × 234 dots, USB Host, Ethernet

NB5Q-TW01B

NB7W

7 inch, TFT LCD, Color, 800 × 480 dots

NB7W-TW00B

7 inch, TFT LCD, Color, 800 × 480 dots, USB Host, Ethernet

NB7W-TW01B
7 inch, TFT LCD, Color, 800 × 480 dots, Ethernet only NB7W-TW11B

NB10W

10.1 inch, TFT LCD, Color, 800 × 480 dots, USB Host, Ethernet

NB10W-TW01B



Options

Product name Specifications Model
Software Supported Operating Systems:
Windows 10, Windows 8.1, Windows 8, Windows 7,
Windows Vista®, Windows XP (SP3 or higher).
Note: Except for Windows XP 64-bit version
Download from Omron's regional websites.		 NB-Designer *
NB-to-PLC Connecting cable For NB to PLC via RS-232C (CP/CJ/CS), 2 m XW2Z-200T
For NB to PLC via RS-232C (CP/CJ/CS), 5 m XW2Z-500T
For NB to PLC via RS-422A/485, 2 m NB-RSEXT-2M
Display protective sheets For the NB3Q contains 5 sheets NB3Q-KBA04
For the NB5Q contains 5 sheets NB5Q-KBA04
For the NB7W contains 5 sheets NB7W-KBA04
For the NB10W contains 5 sheets NB10W-KBA04
Attachment Mounting bracket for NT31/NT31C series to NB5Q series NB5Q-ATT01


Specifications

HMI

Specifications

NB3Q

NB5Q

NB7W

NB10W

TW00B

TW01B

TW00B

TW01B

TW00B

TW01B

TW01B

Display type

3.5 inch TFT LCD

5.6 inch TFT LCD

7 inch TFT LCD

10.1 inch TFT LCD

Display resolution (H×V)

320×240

320×234

800×480

800×480

Number of colors

65,536

Backlight

LED

Backlight lifetime

50,000 hours of operating time at the normal temperature (25 ° C)

1



Touch panel

Analog resistive membrane, resolution 1024×1024, life: 1 million touch operations

Dimensions in mm (H×W×D)

103.8×129.8×52.8

142×184×46

148×202×46

210.8×268.8×54.0

Weight

310 g max.

315 g max.

620 g max.

625 g max.

710 g max.

715 g max.

1,545 g max.

Functionality

Specifications

NB3Q

NB5Q

NB7W

NB10W

TW00B

TW01B

TW00B

TW01B

TW00B

TW01B

TW01B

Internal memory

128MB (including system area)

Memory interface

−

USB
Memory

−

USB
Memory

−

USB
Memory

USB
Memory

Serial (COM1)

RS-232C/422A/485 (not isolated),
Transmission distance:
15m Max. (RS-232C),
500m Max. (RS-422A/485),
Connector: D-Sub 9-pin

RS-232C,
Transmission distance: 15 m Max.,
Connector: D-Sub 9-pin

Serial (COM2)

−

RS-232C/422A/485 (not isolated),
Transmission distance: 15m Max. (RS-232C),

500m Max. (RS-422A/485),

Connector: D-Sub 9-pin

USB Host

Equivalent to USB 2.0 full speed, type A, Output power 5V, 150mA

USB Slave

Equivalent to USB 2.0 full speed, type B, Transmission distance: 5m

Printer connection

PictBridge support

Ethernet

−

10/100 base-T

−

10/100 base-T

−

10/100 base-T

10/100 base-T

General

Specifications

NB3Q

NB5Q

NB7W

NB10W

TW00B

TW01B

TW00B

TW01B

TW00B

TW01B

TW01B

Line voltage

20.4 to 27.6 VDC (24 VDC −15 to 15%)

Power consumption

5 W

9 W

6 W

10 W

7 W

11 W

14 W

Battery lifetime

5 years (at 25 ° C)

Enclosure rating (front side)

Front operation part: IP65 (Dust proof and drip proof only from the front of the panel)

Obtained standards

EC Directives, KC, cUL508

Operating environment

No corrosive gases.

Noise immunity

Compliant with IEC61000-4-4, 2KV (Power cable)

Ambient operating temperature

0 to 50 ° C

Ambient operating humidity

10% to 90% RH (without condensation)
