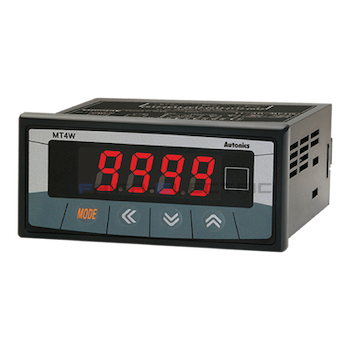

Digital Panel Meters MT4W-DV-4N

รายละเอียดสินค้า

Meter, DC Volts, LED, W96xH48mm, 4-Digit, 0-500V Input, Indication Only, 100-240 VAC
Meter, DC Volts, LED, W96xH48mm, 4-Digit, 0-500V Input, Indication Only, 100-240 VAC
Meter, DC Volts, LED, W96xH48mm, 4-Digit, 0-500V Input, Indication Only, 100-240 VAC
Meter, DC Volts, LED, W96xH48mm, 4-Digit, 0-500V Input, Indication Only, 100-240 VAC
Meter, DC Volts, LED, W96xH48mm, 4-Digit, 0-500V Input, Indication Only, 100-240 VAC
Meter, DC Volts, LED, W96xH48mm, 4-Digit, 0-500V Input, Indication Only, 100-240 VAC
Meter, DC Volts, LED, W96xH48mm, 4-Digit, 0-500V Input, Indication Only, 100-240 VAC

Data sheet

Display method	4-digit 7-segment LED
Character height	14.2mm
Max. display Range	-1999 to 9999
Measurement	DC voltage
Input specification	0-500V, 0-100V, 0-50V, 0-10V, 0-5V, 0-1V, 0-250mV, 0-50mV
Power supply	100-240VAC~ 50/60Hz
Output_Main Output(Comparative Value)	Indicator
Approval
Display accuracy	• 23?±5? - F.S. ±0.1% rdg ±2-digit F.S. +0.3% rdg ±3-digit max. only for 5A terminal. • -10? to 50℃ - F.S. ±0.5% rdg ±3-digit
Max. allowable input	110% F.S. for each measured input range
A/D conversion method	?? (Sigma Delta) ADC
Sampling cycle	50ms
Hold function	Includes (external hold function)
Environment_Ambient temperature	-10 to 50℃, storage: -20 to 60℃
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Insulation type	Double insulation or reinforced insulation(mark: , dielectric strength between the measuring input part and the power part: 1kV)
Weight	Approx. 326g (approx. 211g)
