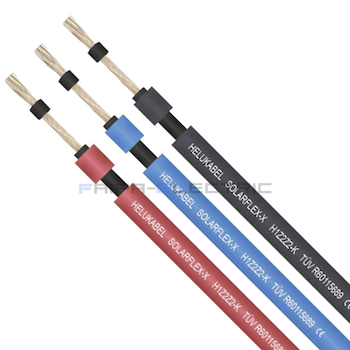

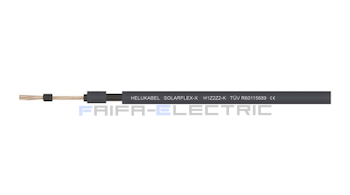

SOLARFLEX®-X H1Z2Z2-K 1x2,5 mm² BK Part no. 713529
HELU-713529
อัตราค่าจัดส่ง
รายละเอียดสินค้า
Article details
| Item description | SOLARFLEX®-X H1Z2Z2-K BLACK 1 x 2.5 mm² |
| Sheath colour | black |
| Outer Ø mm (approx.) | 4.8 - 5.4 |
| AWG (approx.) | 14 |
| Cu-weight kg/km | 24.0 |
| Weight kg/km (approx.) | 45.0 |
| Copper base in EUR / 100 kg | 150 |
| VPE/m | 500 |
| Cut-to-length service available | no |
| EAN/GTIN | 4060892258985 |
| Customs tariff number | 85446010 |
|
Part no. |
No.cores x |
Sheath |
Outer Ø min. - max. mm |
Cop. kg / km |
Weight app. kg / km |
AWG-No. |
|---|---|---|---|---|---|---|
|
1 x 2,5 |
black |
4,8 - 5,4 |
24,0 |
45,0 |
14 |
|
|
1 x 2,5 |
blue |
4,8 - 5,4 |
24,0 |
45,0 |
14 |
|
|
1 x 2,5 |
red |
4,8 - 5,4 |
24,0 |
45,0 |
14 |
|
|
1 x 4 |
black |
5,2 - 5,9 |
38,4 |
60,0 |
12 |
|
|
1 x 4 |
blue |
5,2 - 5,9 |
38,4 |
60,0 |
12 |
|
|
1 x 4 |
red |
5,2 - 5,9 |
38,4 |
60,0 |
12 |
|
|
1 x 6 |
black |
5,8 - 6,4 |
57,6 |
80,0 |
10 |
|
|
1 x 6 |
blue |
5,8 - 6,4 |
57,6 |
80,0 |
10 |
|
|
1 x 6 |
red |
5,8 - 6,4 |
57,6 |
80,0 |
10 |
|
|
1 x 10 |
black |
6,9 - 7,7 |
96,0 |
126,0 |
8 |
|
|
1 x 10 |
blue |
6,9 - 7,7 |
96,0 |
126,0 |
8 |
|
|
1 x 10 |
red |
6,9 - 7,7 |
96,0 |
126,0 |
8 |
ข้อมูลสินค้า
Technical Data
| Cross-linked single core cable acc. to DIN VDE 0283-618 / DIN EN 50618 | |
| Temperature range | fixed -40°C to +90°C |
| Permissible operating temperature of the conductor | +120°C |
| Nominal voltage | AC U0/U 1000/1000 V DC U0/U 1500/1500 V |
| Test voltage | 6500 V |
| Minimum bending radius | fixed 5x Outer-Ø |
| Part no. | Item description | Sheath colour | Outer Ø mm (approx.) | AWG (approx.) | Cu-weight kg/km |
|---|---|---|---|---|---|
| 713544 | SOLARFLEX®-X H1Z2Z2-K BLUE 1 x 2.5 mm² | blue | 4.8 - 5.4 | 14 | 24.0 |
| 713543 | SOLARFLEX®-X H1Z2Z2-K RED 1 x 2.5 mm² | red | 4.8 - 5.4 | 14 | 24.0 |
| 713529 | SOLARFLEX®-X H1Z2Z2-K BLACK 1 x 2.5 mm² | black | 4.8 - 5.4 | 14 | 24.0 |
| 713546 | SOLARFLEX®-X H1Z2Z2-K BLUE 1 x 4 mm² | blue | 5.2 - 5.9 | 12 | 38.4 |
| 713545 | SOLARFLEX®-X H1Z2Z2-K RED 1 x 4 mm² | red | 5.2 - 5.9 | 12 | 38.4 |
| 713530 | SOLARFLEX®-X H1Z2Z2-K BLACK 1 x 4 mm² | black | 5.2 - 5.9 | 12 | 38.4 |
| 713570 | SOLARFLEX®-X H1Z2Z2-K BLUE 1 x 6 mm² | blue | 5.8 - 6.4 | 10 | 57.6 |
| 713569 | SOLARFLEX®-X H1Z2Z2-K RED 1 x 6 mm² | red | 5.8 - 6.4 | 10 | 57.6 |
| 713531 | SOLARFLEX®-X H1Z2Z2-K BLACK 1 x 6 mm² | black | 5.8 - 6.4 | 10 | 57.6 |
| 713572 | SOLARFLEX®-X H1Z2Z2-K BLUE 1 x 10 mm² | blue | 6.9 - 7.7 | 8 | 96.0 |
| 713571 | SOLARFLEX®-X H1Z2Z2-K RED 1 x 10 mm² | red | 6.9 - 7.7 | 8 | 96.0 |
| 713532 | SOLARFLEX®-X H1Z2Z2-K BLACK 1 x 10 mm² | black | 6.9 - 7.7 | 8 | 96.0 |
| 11022069 | SOLARFLEX®-X H1Z2Z2-K BLUE 1 x 16 mm² | blue | 7.7 - 8.5 | 6 | 153.6 |
| 11022068 | SOLARFLEX®-X H1Z2Z2-K RED 1 x 16 mm² | red | 7.7 - 8.5 | 6 | 153.6 |
| 11022067 | SOLARFLEX®-X H1Z2Z2-K BLACK 1 x 16 mm² | black | 7.7 - 8.5 | 6 | 153.6 |
| 11022072 | SOLARFLEX®-X H1Z2Z2-K BLUE 1 x 25 mm² | blue | 10.0 - 10.8 | 4 | 240.0 |
| 11022071 | SOLARFLEX®-X H1Z2Z2-K RED 1 x 25 mm² | red | 10.0 - 10.8 | 4 | 240.0 |
| 11022070 | SOLARFLEX®-X H1Z2Z2-K BLACK 1 x 25 mm² | black | 10.0 - 10.8 | 4 | 240.0 |
| 11022075 | SOLARFLEX®-X H1Z2Z2-K BLUE 1 x 35 mm² | blue | 11.5 - 12.3 | 2 | 336.0 |
| 11022074 | SOLARFLEX®-X H1Z2Z2-K RED 1 x 35 mm² | red | 11.5 - 12.3 | 2 | 336.0 |
| 11022073 | SOLARFLEX®-X H1Z2Z2-K BLACK 1 x 35 mm² | black | 11.5 - 12.3 | 2 | 336.0 |
| 11022078 | SOLARFLEX®-X H1Z2Z2-K BLUE 1 x 50 mm² | blue | 13.2 - 14.0 | 1 | 480.0 |
| 11022077 | SOLARFLEX®-X H1Z2Z2-K RED 1 x 50 mm² | red | 13.2 - 14.0 | 1 | 480.0 |
| 11022076 | SOLARFLEX®-X H1Z2Z2-K BLACK 1 x 50 mm² | black | 13.2 - 14.0 | 1 | 480.0 |
| 11022081 | SOLARFLEX®-X H1Z2Z2-K BLUE 1 x 70 mm² | blue | 15.6 - 16.6 | 2/0 | 672.0 |
| 11022080 | SOLARFLEX®-X H1Z2Z2-K RED 1 x 70 mm² | red | 15.6 - 16.6 | 2/0 | 672.0 |
| 11022079 | SOLARFLEX®-X H1Z2Z2-K BLACK 1 x 70 mm² | black | 15.6 - 16.6 | 2/0 | 672.0 |
| 11022084 | SOLARFLEX®-X H1Z2Z2-K BLUE 1 x 95 mm² | blue | 17.4 - 18.4 | 3/0 | 912.0 |
| 11022083 | SOLARFLEX®-X H1Z2Z2-K RED 1 x 95 mm² | red | 17.4 - 18.4 | 3/0 | 912.0 |
| 11022082 | SOLARFLEX®-X H1Z2Z2-K BLACK 1 x 95 mm² | black | 17.4 - 18.4 | 3/0 | 912.0 |
| 11022087 | SOLARFLEX®-X H1Z2Z2-K BLUE 1 x 120 mm² | blue | 19.4 - 20.4 | 4/0 | 1152.0 |
| 11022086 | SOLARFLEX®-X H1Z2Z2-K RED 1 x 120 mm² | red | 19.4 - 20.4 | 4/0 | 1152.0 |
| 11022085 | SOLARFLEX®-X H1Z2Z2-K BLACK 1 x 120 mm² | black | 19.4 - 20.4 | 4/0 | 1152.0 |
| 11022090 | SOLARFLEX®-X H1Z2Z2-K BLUE 1 x 150 mm² | blue | 20.7 - 21.7 | 300 kcmil | 1440.0 |
| 11022089 | SOLARFLEX®-X H1Z2Z2-K RED 1 x 150 mm² | red | 20.7 - 21.7 | 300 kcmil | 1440.0 |
| 11022088 | SOLARFLEX®-X H1Z2Z2-K BLACK 1 x 150 mm² | black | 20.7 - 21.7 | 300 kcmil | 1440.0 |
| 11022093 | SOLARFLEX®-X H1Z2Z2-K BLUE 1 x 185 mm² | blue | 24.0 - 25.0 | 350 kcmil | 1776.0 |
| 11022092 | SOLARFLEX®-X H1Z2Z2-K RED 1 x 185 mm² | red | 24.0 - 25.0 | 350 kcmil | 1776.0 |
| 11022091 | SOLARFLEX®-X H1Z2Z2-K BLACK 1 x 185 mm² | black | 24.0 - 25.0 | 350 kcmil | 1776.0 |
| 11022096 | SOLARFLEX®-X H1Z2Z2-K BLUE 1 x 240 mm² | blue | 26.6 - 27.8 | 450 kcmil | 2304.0 |
| 11022095 | SOLARFLEX®-X H1Z2Z2-K RED 1 x 240 mm² | red | 26.6 - 27.8 | 450 kcmil | 2304.0 |
| 11022094 | SOLARFLEX®-X H1Z2Z2-K BLACK 1 x 240 mm² | black | 26.6 - 27.8 | 450 kcmil | 2304.0 |
