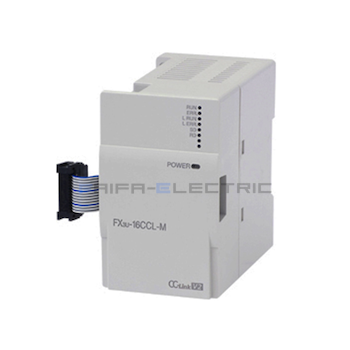

PLC FX Series, FX3U CC-Link Master Module

รายละเอียดสินค้า

CC-Link

Model		Master station function	Remote/slave function	Distance	Applicable FX PLC
					FX 3S	FX 3G	FX 3U	FX 3GC	FX 3UC
	FX3U-16CCL-M*1 CC-Link master block (Master station)	○	×	1,200 m maximum	×	○ Max. 1 unit	*4 ○ Max. 1 unit	*2 ○ Max. 1 unit	*2 *3 ○ Max. 1 unit
	FX2N-32CCL CC-Link Interface block (Remote device station)	×	○	1,200 m maximum	×	○	○	*2 ○	*2 ○
	FX3U-64CCL CC-Link Interface block (Intelligent device station)	×	○	1,200 m maximum	×	○ Max. 1 unit	○ Max. 1 unit	*2 ○ Max. 1 unit	*2 *3 ○ Max. 1 unit

*1: The FX3U-16CCL-M, FX2N-16CCL-M cannot be used at the same time with the FX2N-32ASI-M.
The FX3U-16CCL-M cannot be used at the same time with the FX2N-16CCL-M.
FX3U-16CCL-M and FX2N-16CCL-M cannot be used together.
[Remote I/O station]
　Maximum 8 stations can be connected (1 station occupies 32 I/O points of the PLC)
[Total of remote device stations + intelligent device stations]
　Maximum 8 stations can be connected (However, the total number of RX/RY points is 256 or less)

*2: When connecting to FX3GC，FX3UC, FX2NC-CNV-IF or FX3UC-1PS-5V is required.
*3: FX3UC supported from version 2.20 or later.
*4: FX3U supported from version 2.20 or later.
