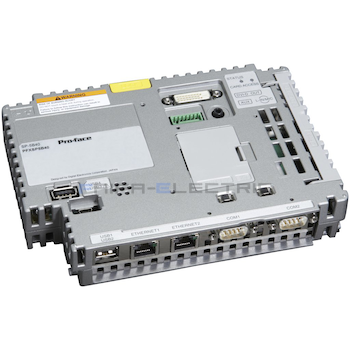

PFXSP5B10F0C : Power Box for SP5000 (Coated)

PFXSP5B10F0C

แบรนด์ : Pro-face สินค้า HMI ซีรีย์ : SP5000 Series

สอบถามสินค้า

อัตราค่าจัดส่ง

จำนวน / Quantity

รายละเอียดสินค้า

Standard product information

Family

HMI

Series

SP5000 Series

Size

Box (Power)

Model

PFXSP5B10

Global Code

PFXSP5B10

Product Features

Box Module High-speed processing (Power Box)

Repair Status

✔ (Maintenance service is available, able to be maintained.)

Electrical specifications

Rated input voltage

12 Vdc (Supply from Display Module or DC Power Supply Adapter for Box Module "PFXZCDADEXP1")

Power consumption

Max. 25 W
When power is not supplied to external devices: 12.5 W or less*1

Noise immunity

Noise Voltage : 1,000 Vp-p
Pulse Duration : 1 µs
Rise Time : 1 ns
(via noise simulator)

1Power consumption for Box Module only

Environmental specifications

International safety standards

Surrounding air temperature

0 to 60 °C [32 to 140 °F]

Storage temperature

-20 to +60 °C [-4 to 140 °F]

Ambient humidity

10 to 90 % RH (Wet bulb temperature: 39 °C [102.2 °F] max. - no condensation)

Storage humidity

10 to 90 % RH (Wet bulb temperature: 39 °C [102.2 °F] max. - no condensation)

Dust

0.1 mg/m3 (10-7 oz/ft3) or less (non-conductive levels)

Pollution degree

For use in Pollution Degree 2 environment

Corrosive gases

Free of corrosive gases

Air pressure (altitude range)

800 to 1,114 hPa (2,000 m [6,561 ft.] above sea level or less)

Vibration resistance

IEC/EN 61131-2 compliant
5 to 9 Hz single amplitude 3.5 mm [0.14 in.]
9 to 150 Hz fixed acceleration: 9.8 m/s2
X, Y, Z directions for 10 cycles (approx. 100 min.)

Concussion resistance

IEC/EN 61131-2 compliant 147 m/s2, X, Y, Z directions for 3 times

Electrostatic discharge immunity

Contact Discharge Method: 6 kV
Air Discharge Method: 8 kV
(IEC/EN61000-4-2 Level 3)

Memory

Application memory

When using GP-Pro EX:
- Media: SD Card
- Screen Area: 64MB *Use the screen area when the user font area's capacity is exceeded - for example, when an image font or a picture font is used.
- User Font Area: 8MB
- Logic Program Area: 132KB (Equivalent to 15,000 steps) *Up to 60,000 steps can be converted in software. However, this reduces application memory capacity (for screen data) by 1 MB.
- Free Space: None

Removable System: Yes

Backup memory

When using GP-Pro EX:
- Screen Area: NVRAM 320KB
- Variable Area: NVRAM 64KB

Battery: None*2

2SP5000 Series can retain NVRAM (backup memory) and RTC (clock data) without any batteries. But, when no power is supplied for 100 days or more, it's necessary to additionally mount this option item to retain RTC (clock data).

Interface specifications

Serial (COM1)

Asynchronous Transmission: RS-232C / 422 / 485, Data Length: 7 or 8 bits, Stop Bit: 1 or 2 bits, Parity: None, Even or Odd, Data Transmission Speed: 2,400 (1,200) to 115,200 bps, Connector: D-Sub 9 pin (plug)

Serial (COM2)

Asynchronous Transmission: RS-232C / 422 / 485, Data Length: 7 or 8 bits, Stop Bit: 1 or 2 bits, Parity: None, Even or Odd, Data Transmission Speed: 2,400 (1,200) to 115,200 bps, 187,500 bps (MPI), Connector: D-Sub 9 pin (plug)

USB (Type A)

Conforms to USB 2.0 (Type A) x 2
Power supply voltage: 5 Vdc ±5 %
Output Current: 500 mA/port
Communication distance: 5 m [16.4 ft.]*3

USB (mini-B)

Conforms to USB 2.0 (mini-B) x 1, Communication Distance: 5 m [16.4 ft] or less

Ethernet

IEEE802.3i / IEEE802.3u / IEEE802.3ab, 10BASE-T / 100BASE-TX / 1000BASE-T, Connector: Modular jack (RJ-45) x 2

SD card

SD Card Slot (System) x 1
SD Card Slot (Storage) x 1

Expansion unit

Fieldbus Unit x 1

Sound output

Speaker Output: 300mW or more (Rated Load: 8Ω, Frequency: 1kHz), LINE Output: 1.4Vp-p (Rated load: 10kΩ), Connector: 2-piece terminal block (AUX) x 1

AUX output

Alarm Output or Buzzer Output x 1
Rated Voltage: 24 Vdc, Rated Current: 50 mA or less
Connector: 2-piece terminal block (AUX) x 1

3When using the Display Module with the Power Box, you can connect only one of each type of USB device, such as one USB flash drive, one transfer cable, or one barcode reader. If you connect multiple devices that are the same type, only the first device will work.

Structural specifications

Cooling method

Natural air circulation

External dimensions

W188 x H131 x D35 mm [W7.40 x H5.16 x D1.38 in.]

Weight

0.9 kg [1.98 lb] or less*4

4Box module only.

Dimensions

External dimensions

ข้อมูลสินค้า

SP5000 Series Lineup / Specifications

Module Configuration

Premium Display	Advanced Display	Open Box	Power Box	Standard Box
Industry's top-class display with high display quality and versatile functions	Sophisticated display with high display quality	Enable to use Windows Applications via HMI	Reliable real-time OS installed in HMI High performance & Extended HMI	Reliable real-time OS installed in HMI High performance HMI
SP-5800WC, SP-5700WC, SP-5700TP, SP-5660TP, SP-5600TP, SP-5500TP	SP-5600TA, SP-5600WA, SP-5500WA, SP-5400WA	SP-5B41 (End of Sale: Apr 30, 2025) SP-5B411 SP-5B412	SP-5B10	SP-5B00
Specifications about Display Module		Specifications about Box Module

Display Module

Display Type	Product Name	Model No.	Display Size	Display Colors	Touch Panel Type	Front USB	Brightness Sensor	Auto Scaling	Details
Premium	SP-5800WC ^*1	PFXSP5800WCD	19" Wide (FWXGA)	16 million	Projected Capacitive (multi-touch)	Yes	Yes	Yes	Datasheet （PDF）
	SP-5700WC ^*1	PFXSP5700WCD	15" Wide (FWXGA)		Projected Capacitive (multi-touch)
	SP-5700TP	PFXSP5700TPD	15" (XGA)		Analog Resistive Film (multi-touch)
	SP-5660TP ^*2	PFXSP5660TPD	12" (XGA)
	SP-5600TP	PFXSP5600TPD	12" (XGA)
	SP-5500TP	PFXSP5500TPD	10" (SVGA)
Advanced	SP-5600TA	PFXSP5600TAD	12" (XGA)	262,144	Analog Resistive Film	No	No	No
	SP-5600WA	PFXSP5600WAD	12" Wide (WXGA)
	SP-5500WA	PFXSP5500WAD	10" Wide (WXGA)
	SP-5400WA	PFXSP5400WAD	7" Wide (WVGA)

*1SP-5800WC, SP-5700WC and SP-5600TA are not compatible with SP-5B40 (End of Sale: Mar. 30, 2018).

*2SP-5660TP is not compatible with SP-5B10 (Power Box) and SP-5B00 (Standard Box).

Box Module

Box Type		Product Name	Model No.	Windows Application	Expansion Unit	Sound Output	AUX Output	Details
Open	WES 7	SP-5B41 (End of Sale: Apr 30, 2025)	PFXSP5B41*	Yes	Yes	Yes	Yes	Datasheet （PDF）
	Windows 10 (HMI Runtime not inclueded)	SP-5B411
	Windows 10 (HMI Runtime inclueded)	SP-5B412
Power		SP-5B10 ^*3	PFXSP5B10	-
Standard		SP-5B00 ^*3	PFXSP5B00	-	-	-	-

*3SP-5B10 (Power Box) and SP-5B00 (Standard Box) are not compatible with SP-5660TP.

Display Module x Box Module

Screen Size	Product Name	Bright- ness Sensor/ Auto Scaling/ Front USB/ Multi- touch	Win- dows Apps	Video/ Sound	Remov- able System	CFast (Stor- age)	SD (Stor- age)	USB Type A	USB mini B	SIO	Ether -net	Rated Voltage	Details
19" Wide (FWXGA)	SP-5800WC + SP-5B411 / SP-5B412	Yes	Yes	Yes	Yes	x 1	x 1	x 4	x 2	x 2	x 2	12 to 24 Vdc	Display/ Box
	SP-5800WC + SP-5B10	Yes	-	-	Yes	-	x 1	x 3	x 2	x 2	x 2	12 to 24 Vdc	Display/ Box
	SP-5800WC + SP-5B00	Yes	-	-	-	-	x 1	x 3	x 2	x 2	x 2	12 to 24 Vdc	Display/ Box
15" Wide (FWXGA)	SP-5700WC + SP-5B411 / SP-5B412	Yes	Yes	Yes	Yes	x 1	x 1	x 4	x 2	x 2	x 2	12 to 24 Vdc	Display/ Box
	SP-5700WC + SP-5B10	Yes	-	-	Yes	-	x 1	x 3	x 2	x 2	x 2	12 to 24 Vdc	Display/ Box
	SP-5700WC + SP-5B00	Yes	-	-	-	-	x 1	x 3	x 2	x 2	x 2	12 to 24 Vdc	Display/ Box
15" (XGA)	SP-5700TP + SP-5B411 / SP-5B412	Yes	Yes	Yes	Yes	x 1	x 1	x 4	x 2	x 2	x 2	12 to 24 Vdc	Display/ Box
	SP-5700TP + SP-5B10	Yes	-	-	Yes	-	x 1	x 3	x 2	x 2	x 2	12 to 24 Vdc	Display/ Box
	SP-5700TP + SP-5B411 / SP-5B412	Yes	-	-	-	-	x 1	x 3	x 2	x 2	x 2	12 to 24 Vdc	Display/ Box
12" (XGA) Wireless LAN Model	SP-5660TP + SP-5B411 / SP-5B412	Yes	Yes	Yes	Yes	x 1	x 1	x 4	x 2	x 2	x 2	12 to 24 Vdc	Display/ Box
12" (XGA)	SP-5600TP + SP-5B411 / SP-5B412	Yes	Yes	Yes	Yes	x 1	x 1	x 4	x 2	x 2	x 2	12 to 24 Vdc	Display/ Box
	SP-5600TP + SP-5B10	Yes	-	-	Yes	-	x 1	x 3	x 2	x 2	x 2	12 to 24 Vdc	Display/ Box
	SP-5600TP + SP-5B00	Yes	-	-	-	-	x 1	x 3	x 2	x 2	x 2	12 to 24 Vdc	Display/ Box
12" (XGA)	SP-5600TA + SP-5B411 / SP-5B412	-	Yes	Yes	Yes	x 1	x 1	x 3	x 1	x 2	x 2	12 to 24 Vdc	Display/ Box
	SP-5600TA + SP-5B10	-	-	-	Yes	-	x 1	x 2	x 1	x 2	x 2	12 to 24 Vdc	Display/ Box
	SP-5600TA + SP-5B00	-	-	-	-	-	x 1	x 2	x 1	x 2	x 2	12 to 24 Vdc	Display/ Box
12" Wide (WXGA)	SP-5600WA + SP-5B411 / SP-5B412	-	Yes	Yes	Yes	x 1	x 1	x 3	x 1	x 2	x 2	12 to 24 Vdc	Display/ Box
	SP-5600WA + SP-5B10	-	-	-	Yes	-	x 1	x 2	x 1	x 2	x 2	12 to 24 Vdc	Display/ Box
	SP-5600WA + SP-5B00	-	-	-	-	-	x 1	x 2	x 1	x 2	x 2	12 to 24 Vdc	Display/ Box
10" (SVGA)	SP-5500TP + SP-5B411 / SP-5B412	Yes	Yes	Yes	Yes	x 1	x 1	x 4	x 2	x 2	x 2	12 to 24 Vdc	Display/ Box
	SP-5500TP + SP-5B10	Yes	-	-	Yes	-	x 1	x 3	x 2	x 2	x 2	12 to 24 Vdc	Display/ Box
	SP-5500TP + SP-5B00	Yes	-	-	-	-	x 1	x 3	x 2	x 2	x 2	12 to 24 Vdc	Display/ Box
10" Wide (WXGA)	SP-5500WA + SP-5B41	-	Yes	Yes	Yes	x 1	x 1	x 3	x 1	x 2	x 2	12 to 24 Vdc	Display/ Box
	SP-5500WA + SP-5B10	-	-	-	Yes	-	x 1	x 2	x 1	x 2	x 2	12 to 24 Vdc	Display/ Box
	SP-5500WA + SP-5B00	-	-	-	-	-	x 1	x 2	x 1	x 2	x 2	12 to 24 Vdc	Display/ Box
7" Wide (WVGA)	SP-5400WA + SP-5B411 / SP-5B412	-	Yes	Yes	Yes	x 1	x 1	x 3	x 1	x 2	x 2	12 to 24 Vdc	Display/ Box
	SP-5400WA + SP-5B10	-	-	-	Yes	-	x 1	x 2	x 1	x 2	x 2	12 to 24 Vdc	Display/ Box
	SP-5400WA + SP-5B00	-	-	-	-	-	x 1	x 2	x 1	x 2	x 2	12 to 24 Vdc	Display/ Box
