รายละเอียดสินค้า

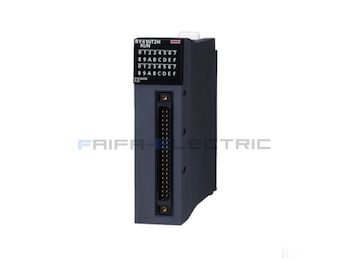

PLC iQ-R Series; High Speed Transistor (sink) output module, 32 pointข้อมูลสินค้า
MELSEC iQ-R series เป็น PLC ที่มีแพลตฟอร์มการควบคุมที่โดดเด่น พร้อมด้วยการประมวลผลที่รวดเร็ว การซิงโครไนซ์โมดูลและเครือข่าย จากการออกแบบขั้นสูง ทำให้ PLC รุ่นดังกล่าว ช่วยพัฒนาประสิทธิภาพการผลิตและการทำงานของเครื่องได้อย่างยอดเยี่ยม
ภายใน MELSEC iQ-R Series ประกอบด้วยโมดูลที่ผู้ใช้งานต่างคุ้นเคยกันดี ตั้งแต่โมดูล CPU, Base unit, Power supply, I/O module หรือ Analog I/O module แต่ยังมีอีกหลายๆ โมดูลที่น่าใจ ซึ่งในวันนี้ขอนำเสนอ โมดูล Motion, Simple motion, Positioning, High-speed counter และโมดูลแยกช่องสัญญาณอินพุตพัลส์ (Multiple pulse input functions embedded) ของ MELSEC iQ-R Series เป็นชุดโมดูลอัจฉริยะที่ออกแบบมาเพื่อตอบสนองต่อการควบคุมที่รวดเร็วและแม่นยำสูงภายในการทำงานของโรงงานอุตสาหกรรมอัตโนมัติ
Programmable controller CPU module
The CPU modules are the heart of the control system performing variety control tasks. Different CPUs with
program capacity from 10K to 1200K steps are available based on the system requirement. Equipped with various
internal functions such as web server and database, contributing to productivity improvement.
Embedded network
CC-Link IE embedded programmable controller CPU module.
Dual Ethernet ports on the network side can be used as a gateway. The Ethernet port on the CPU side is used as
an Ethernet communications port
Product List
■ CPU modules
|
Type
|
Model
|
Outline
|
|
Programmable controller CPU
Motion CPU
|
Program capacity, 10K steps; basic operation processing speed (LD instruction), 31.36 ns
|
|
|
Program capacity, 15K steps; basic operation processing speed (LD instruction), 31.36 ns
|
||
|
Program capacity, 20K steps; basic operation processing speed (LD instruction), 3.92 ns
|
||
|
Program capacity, 40K steps; basic operation processing speed (LD instruction), 0.98 ns
|
||
|
Program capacity, 80K steps; basic operation processing speed (LD instruction), 0.98 ns
|
||
|
Program capacity, 160K steps; basic operation processing speed (LD instruction), 0.98 ns
|
||
|
Program capacity, 320K steps; basic operation processing speed (LD instruction), 0.98 ns
|
||
|
Program capacity, 1200K steps; basic operation processing speed (LD instruction), 0.98 ns
|
||
|
CC-Link IE embedded; program capacity, 40K steps; basic operation processing speed (LD instruction), 0.98 ns
|
||
|
CC-Link IE embedded; program capacity, 80K steps; basic operation processing speed (LD instruction), 0.98 ns
|
||
|
CC-Link IE embedded; program capacity, 160K steps; basic operation processing speed (LD instruction), 0.98 ns
|
||
|
CC-Link IE embedded; program capacity, 320K steps; basic operation processing speed (LD instruction), 0.98 ns
|
||
|
CC-Link IE embedded; program capacity, 1200K steps; basic operation processing speed (LD instruction), 0.98 ns
|
||
|
Up to 16-axis control; operation cycle, ≤0.222 ms; SSCNET ³/H connectivity
|
||
|
Up to 32-axis control; operation cycle, ≤0.222 ms; SSCNET ³/H connectivity
|
||
|
Up to 64-axis control; operation cycle, ≤0.222 ms; SSCNET ³/H connectivity
|
||
|
Safety CPU
|
Program capacity, 80K steps (40K steps for safety programs); basic operation processing speed (LD instruction), 0.98 ns
|
|
|
Program capacity, 160K steps (40K steps for safety programs); basic operation processing speed (LD instruction), 0.98 ns
|
||
|
Program capacity, 320K steps (40K steps for safety programs); basic operation processing speed (LD instruction), 0.98 ns
|
||
|
Program capacity, 1200K steps (40K steps for safety programs); basic operation processing speed (LD instruction), 0.98 ns
|
||
|
Process CPU
|
Program capacity, 80K steps; basic operation processing speed (LD instruction), 0.98 ns
|
|
|
Program capacity, 160K steps; basic operation processing speed (LD instruction), 0.98 ns
|
||
|
Program capacity, 320K steps; basic operation processing speed (LD instruction), 0.98 ns
|
||
|
Program capacity, 1200K steps; basic operation processing speed (LD instruction), 0.98 ns
|
||
|
SIL2 process CPU
|
Program capacity, 80K steps (40K steps for safety programs); basic operation processing speed (LD instruction), 0.98 ns
|
|
|
Program capacity, 160K steps (40K steps for safety programs); basic operation processing speed (LD instruction), 0.98 ns
|
||
|
Program capacity, 320K steps (40K steps for safety programs); basic operation processing speed (LD instruction), 0.98 ns
|
||
|
Program capacity, 1200K steps (40K steps for safety programs); basic operation processing speed (LD instruction), 0.98 ns
|
||
|
Redundant function module
|
By combining with a process CPU or SIL2 process CPU, a redundant control system can be realized.
|
|
|
C Controller
|
Endian format, little endian; OS, VxWorks® Version 6.9
|
|
|
SD memory card, 2G bytes
|
||
|
SDHC memory card, 4G bytes
|
||
|
SDHC memory card, 8G bytes
|
||
|
SDHC memory card, 16G bytes
|
||
|
1M bytes
|
||
|
2M bytes
|
||
|
2M bytes, ECC type
|
||
|
4M bytes
|
||
|
8M bytes
|
||
|
8M bytes
|
||
|
16M bytes
|
||
|
Retain file register and latch device/label memory data without using a battery.
|
||
|
Battery
|
Replacement battery
|
|
|
Replacement large-capacity battery
|
||
|
Large-capacity battery with holder for mounting CPU
|
||
|
Long term backup battery for clock data
|
■ Base unit
|
Type
|
Model | Outline |
|
3 slots, for MELSEC iQ-R Series modules
|
||
|
Main base
|
5 slots, for MELSEC iQ-R Series modules
|
|
|
8 slots, for MELSEC iQ-R Series modules
|
||
|
12 slots, for MELSEC iQ-R Series modules
|
||
|
Redundant power supply main base
|
10 slots, for MELSEC iQ-R Series modules, redundant system (remote I/O)
|
|
|
Extended temperature range main base
|
10 slots, for MELSEC iQ-R Series modules
|
|
|
Extended temperature range redundant power supply main base
|
8 slots, for MELSEC iQ-R Series modules, redundant system (remote I/O)
|
|
|
Extension base
|
5 slots, for MELSEC iQ-R Series modules
|
|
|
8 slots, for MELSEC iQ-R Series modules
|
||
|
12 slots, for MELSEC iQ-R Series modules
|
||
|
Redundant power supply extension base
|
10 slots, for MELSEC iQ-R Series modules, redundant system (remote I/O)
|
|
|
Redundant extension base
|
8 slots, for MELSEC iQ-R Series modules, redundant system (local I/O)
|
|
|
Extended temperature range extension base
|
10 slots, for MELSEC iQ-R Series modules
|
|
|
Extended temperature range redundant power supply extension base
|
8 slots, for MELSEC iQ-R Series modules, redundant system (remote I/O)
|
|
|
Extended temperature range redundant extension base
|
6 slots, for MELSEC iQ-R Series modules, redundant system (local I/O)
|
|
|
RQ extension base
|
5 slots, for MELSEC-Q Series modules
|
|
|
8 slots, for MELSEC-Q Series modules
|
||
|
12 slots, for MELSEC-Q Series modules
|
||
|
Extension cable
|
0.6 m cable for extension and RQ extension base units
|
|
|
1.2 m cable for extension and RQ extension base units
|
||
|
3 m cable for extension and RQ extension base units
|
||
|
5 m cable for extension and RQ extension base units
|
||
|
10 m cable for extension and RQ extension base units
|
||
|
DIN rail mounting adapter
|
For main and extension base units
|
|
|
For RQ68B/RQ612B
|
||
|
For RQ65B
|
||
|
For RQ extension base units (with vibration-proofing bracket sets)
|
||
|
Blank cover
|
For I/O slots of main and extension base units
|
|
|
For I/O slots of RQ extension base units
|
■ Power supply module
|
Type
|
Model
|
Outline
|
|
Power supply
|
AC power supply; input, 100…240 V AC; output, 5 V DC/6.5 A
|
|
|
AC power supply; input, 100…240 V AC; output, 5 V DC/3.5 A, 24 V DC/0.6 A
|
||
|
AC power supply; input, 100…240 V AC; output, 5 V DC/9 A
|
||
|
DC power supply; input, 24 V DC; output, 5 V DC/6.5 A
|
||
|
DC power supply; input, 24 V DC; output, 5 V DC/6.5 A, Redundant power supply function support
|
||
|
AC power supply; input, 100…240 V AC; output, 5 V DC/9 A, Redundant power supply function support
|
|
Type
|
Model
|
Outline
|
|
Input
|
AC input, 8 points: 100…240 V AC (50/60 Hz)
|
|
|
AC input, 16 points: 100…120 V AC (50/60 Hz), Spring-clamp terminal block
|
||
|
AC input, 16 points: 100…120 V AC (50/60 Hz)
|
||
|
DC input, 16 points: 24 V DC, 7.0 mA, Spring-clamp terminal block
|
||
|
DC input, 16 points: 24 V DC, 7.0 mA
|
||
|
DC input, 32 points: 24 V DC, 4.0 mA, Spring-clamp terminal block
|
||
|
DC input, 32 points: 24 V DC, 4.0 mA
|
||
|
DC input, 64 points: 24 V DC, 4.0 mA
|
||
|
DC input, 16 points: 5 V DC, 1.7 mA; 12 V DC, 4.8 mA
|
||
|
DC input, 32 points: 5 V DC, 1.7 mA; 12 V DC, 4.8 mA
|
||
|
DC input, 64 points: 5 V DC, 1.7 mA; 12 V DC, 4.8 mA
|
||
|
High-speed input
|
Positive common type DC input, 16 points: 24 V DC, 6.0 mA; minimum response time 5 μs
|
|
|
Negative common type DC input, 16 points: 24 V DC, 6.0 mA; minimum response time 5 μs
|
||
|
Positive/negative common type DC input, 32 points: 24 V DC, 6.0 mA; minimum response time 1 μs
|
||
|
Positive/negative common type DC input, 32 points: 5 V DC, 6.0 mA; minimum response time 1 μs
|
||
|
Input
(with diagnostic functions)
|
Negative common type DC input, 16 points: 24 V DC, 6.0 mA
|
|
|
Output
|
Relay output, 8 points: 24 V DC/2 A, 240 V AC/2 A
|
|
|
Relay output, 16 points: 24 V DC/2 A, 240 V AC/2 A, Spring-clamp terminal block
|
||
|
Relay output, 16 points: 24 V DC/2 A, 240 V AC/2 A
|
||
|
Triac output, 16 points: 100…240 V AC/0.6 A
|
||
|
Transistor (sink) output, 16 points: 12…24 V DC, 0.5 A, Spring-clamp terminal block
|
||
|
Transistor (sink) output, 16 points: 12…24 V DC, 0.5 A
|
||
|
Transistor (sink) output, 32 points: 12…24 V DC, 0.2 A, Spring-clamp terminal block
|
||
|
Transistor (sink) output, 32 points: 12…24 V DC, 0.2 A
|
||
|
Transistor (sink) output, 64 points: 12…24 V DC, 0.2 A
|
||
|
Transistor (source) output, 16 points: 12…24 V DC, 0.5 A, Spring-clamp terminal block
|
||
|
Transistor (source) output, 16 points: 12…24 V DC, 0.5 A
|
||
|
Transistor (source) output, 32 points: 12…24 V DC, 0.1 A, Spring-clamp terminal block
|
||
|
Transistor (source) output, 32 points: 12…24 V DC, 0.1 A
|
||
|
Transistor (source) output, 64 points: 12…24 V DC, 0.1 A
|
||
|
High-speed output Output
(with diagnostic functions)
|
Transistor (sink) output, 32 points: 5…24 V DC, 0.2 A; minimum response time 2 μs
|
|
|
Transistor (source) output, 32 points: 5…24 V DC, 0.2 A; minimum response time 2 μs
|
||
|
Transistor (source) output, 16 points: 24 V DC, 0.5 A
|
||
|
I/O combined
|
DC input, 32 points: 24 V DC, 4.0 mA
Transistor (sink) output, 32 points: 12…24 V DC, 0.2 A
|
■ Analog modules
|
Type
|
Model
|
Outline
|
|
4 channels for voltage/current inputs
–10…10 V DC, –32000…32000; 0…20 mA DC, 0…32000; 80 μs/CH
|
||
|
4 channels for voltage/current inputs
–10…10 V DC, –32000…32000; 0…20 mA DC, 0…32000; 1 μs/CH
|
||
|
8 channels for voltage inputs
–10…10 V DC, –32000…32000; 80 μs/CH
|
||
|
Analog input
|
8 channels for current inputs
0…20 mA DC, 0…32000; 80 µs/CH
|
|
|
8 channels for current inputs
4…20 mA DC, 0…32000; 80 ms/8 CH, HART® communication
|
||
|
6 channels for current inputs, channel isolated
4…20 mA DC (2-wire transmitter is connected)/0…32000, 0…20 mA DC/0…32000 10 ms/CH
|
||
|
8 channels for voltage/current input, channel isolated
–10…10 V DC, –32000…32000, 0…20 mA DC/0…32000, 10 ms/CH
|
||
|
16 channels for voltage/current input, channel isolated
–10…10 V DC, –32000…32000, 0…20 mA DC/0…32000, 10 ms/CH
|
||
|
Temperature input
|
Thermocouple (B, R, S, K, E, J, T, N), 8 channels for input, channel isolated, 30 ms/CH
|
|
|
RTD (Pt100, JPt100, Ni100, Pt50), 8 channels for input, channel isolated, 10 ms/CH
|
||
|
Temperature control
|
Thermocouple (B, R, S, K, E, J, T, N, U, L, PL², W5Re/W26Re), 4 channels for input (2 channels can also be used for RTD input), spring-clamp terminal block type
|
|
|
Thermocouple (B, R, S, K, E, J, T, N, U, L, PL², W5Re/W26Re), 4 channels for input (2 channels can also be used for RTD input)
|
||
|
RTD (Pt100, JPt100), 4 channels for input, spring-clamp terminal block type
|
||
|
RTD (Pt100, JPt100), 4 channels for input
|
||
|
Thermocouple (B, R, S, K, E, J, T, N, U, L, PL², W5Re/W26Re), 4 channels for input (2 channels can also be used for RTD input), heater disconnection detection
|
||
|
RTD (Pt100, JPt100), 4 channels for input, heater disconnection detection
|
||
|
4 channels for voltage/current outputs
–32000…32000, –10…10 V DC; 0…32000, 0…20 mA DC; 80 µs/CH
|
||
|
4 channels for voltage/current outputs
–32000…32000, –10…10 V DC; 0…32000, 0…20 mA DC; 1 μs/CH
|
||
|
Analog output
|
8 channels for voltage outputs
–32000…32000, –10…10 V DC; 80 µs/CH
|
|
|
8 channels for current outputs 0…32000, 0…20 mA DC; 80 µs/CH
|
||
|
8 channels for voltage/current output, channel isolated
–32000…32000, –12…12 V DC, 0…32000, 0…20 mA DC, 1 ms/CH
|
||
|
16 channels for voltage/current output, channel isolated
–32000…32000, –12…12 V DC, 0…32000, 0…20 mA DC, 1 ms/CH
|
||
|
SIL2 analog control output
|
Output, 16 points; 24 V DC, 0.5 A
|
|
Type
|
Model
|
Outline
|
|
|
Motion module
Simple motion
|
Max. number of control axes 4 CC-Link IE TSN-compatible
|
||
|
Max. number of control axes 8 CC-Link IE TSN-compatible
|
|||
|
Max. number of control axes 16 CC-Link IE TSN-compatible
|
|||
|
Max. number of control axes 32 CC-Link IE TSN-compatible
|
|||
|
Max. number of control axes 64 CC-Link IE TSN-compatible
|
|||
|
High-performance type, max. number of control axes 128 CC-Link IE TSN-compatible
|
|||
|
High-performance type, max. number of control axes 256 CC-Link IE TSN-compatible
|
|||
|
4 axes, linear/circular interpolation, advanced synchronous control, CC-Link IE Field network compatible
|
|||
|
8 axes, linear/circular interpolation, advanced synchronous control, CC-Link IE Field network compatible
|
|||
|
16 axes, linear/circular interpolation, advanced synchronous control, CC-Link IE Field network compatible
|
|||
|
32 axes, linear/circular interpolation, advanced synchronous control, CC-Link IE Field network compatible
|
|||
|
2 axes, linear/circular interpolation, advanced synchronous control, SSCNET ³/H compatible
|
|||
|
4 axes, linear/circular interpolation, advanced synchronous control, SSCNET ³/H compatible
|
|||
|
8 axes, linear/circular interpolation, advanced synchronous control, SSCNET ³/H compatible
|
|||
|
16 axes, linear/circular interpolation, advanced synchronous control, SSCNET ³/H compatible
|
|||
|
Positioning
High-speed counter
|
Transistor output, 2 axes; max. output, 200k pulse/s; linear/circular interpolation
|
||
|
Transistor output, 4 axes; max. output, 200k pulse/s; linear/circular/helical interpolation
|
|||
|
Differential driver output, 2 axes; max. output, 5M pulse/s; linear/circular interpolation
|
|||
|
Differential driver output, 4 axes; max. output, 5M pulse/s; linear/circular/helical interpolation
|
|||
|
5/12/24 V DC input, 2 channels; max. counting speed, 200k pulse/s; external output, transistor (sink type)
|
|||
|
5/12/24 V DC input, 2 channels; max. counting speed, 200k pulse/s; external output, transistor (source type)
|
|||
|
Differential input, 2 channels; max. counting speed, 8M pulse/s; external output, transistor (sink type)
|
|||
|
Channel isolated pulse input
|
5/12…24 V DC input, 8 channels; channel isolated; max. counting speed, 30k pulse/s
|
||
■ Network modules DB : Co-branded product*1
|
Type
|
Model
|
Outline
|
|
CC-Link IE TSN
|
1 Gbps/100 Mbps, master/local station
|
|
|
Ethernet (built-in CC-Link IE)
|
1 Gbps/100 Mbps/10 Mbps, 2 ports
Multi-network connectivity (Ethernet/CC-Link IE)
|
|
|
CC-Link IE Control CC-Link IE Field
|
1 Gbps, fiber-optic cable, control/normal station (standard type)
|
|
|
1 Gbps, fiber-optic cable, control/normal station (with external power supply)
|
||
|
1 Gbps, master/local station
|
||
|
CC-Link IE Field Network remote head
|
1 Gbps, remote station
|
|
|
CC-Link
|
Max. 10 Mbps, master/local station, CC-Link Ver.2 supported
|
|
|
AnyWireASLINK
BACnet®
|
DigitalLinkSensor AnyWireASLINK system compatible, master station
|
|
|
BACnet® system compatible, controller/workstation
|
||
|
CANopen®
|
CANopen® system compatible NMT master/NMT slave
|
|
|
PROFINET®
EtherNet/IP™
|
PROFINET® IO Controller
|
|
|
PROFINET® IO Device
|
||
|
EtherNet/IP™ system compatible, scanner
|
||
|
PROFIBUS®-DP
|
PROFIBUS® system compatible, DP master/slave
|
|
|
DeviceNet®
|
DeviceNet® system compatible, master/slave
|
|
|
MELSECNET/H
|
Max. 25 Mbps SI/QSI/H-PCF/broadband H-PCF optical fiber cable control/normal station (PLC to PLC network)
|
|
|
GP-IB interface
Serial communication
|
GP-IB system compatible, controller/device
|
|
|
Max. 230.4 kbps; RS-232, 1 channel; RS-422/485, 1 channel
|
||
|
Max. 230.4 kbps; RS-232, 2 channels
|
||
|
Max. 230.4 kbps; RS-422/485, 2 channels
|
*1. General specifications and product guarantee conditions for co-branded products may vary from those of general MELSEC products. For more information, please refer to the relevant product manuals or contact your local Mitsubishi Electric sales office/representative.
■ Advanced information modules
|
Type
|
Model
|
Outline
|
|
MES Interface
|
Database connection (MX MESInterface-R is required)
|
|
|
OPC UA server
|
Embedded OPC UA server (MX OPC UA Module Configurator-R is required)
|
|
|
Camera recorder module
|
Device and label collection, camera image
|
|
|
Recorder module
|
Device and label collection
|
|
|
High-speed data logger module
|
||
|
High-speed data communication module
|
||
|
C intelligent function module
|
C/C++ program execution, RAM: 128 MB (CW Workbench/Wind River® Workbench 3.3/TimeStorm®/Visual Studio® are required for programming, setting and monitoring is done using GX Works3)
|
|
|
C/C++ program execution, RAM: 1 GB (CW Workbench/Wind River® Workbench 3.3/TimeStorm®/Visual Studio® are required for programming, setting and monitoring is done using GX Works3)
|
*2. For information on how to obtain the software, please contact your local Mitsubishi Electric sales office or representative.
■ Technology modules
|
Type
|
Model
|
Outline
|
|
|
Flexible high-speed I/O control
|
Input, 12 points (5/24 V DC/differential); max counting speed, 8M pulse/s (differential)
Output, 14 points (5…24 V DC: 8 points, differential: 6 points); max. output, 8M pulse/s (differential)
|
||
|
Energy measuring module
|
Energy measurement, 1 channel; data refresh cycle, 10…10000 ms (setting available in 10 ms increments)
|
||
|
Type
|
Model
|
Outline
|
|
MELSOFT iQ Works
|
SW2DND-IQWK-E
(DVD-ROM edition)
|
• System Management Software: MELSOFT Navigator
• Motion Programming Software: MELSOFT MT Works2
• HMI Programming Software: MELSOFT GT Works3
• Inverter Setup Software: MELSOFT FR Configurator2
• Servo setup software: MELSOFT MR Configurator2
• C Controller setting and monitoring tool: MELSOFT CW Configurator
• MITSUBISHI ELECTRIC FA Library
|
|
MELSOFT GX Works3
|
SW1DND-GXW3-E
(DVD-ROM edition)
|
• MITSUBISHI ELECTRIC FA Library
|
*1. For detailed information about supported modules, refer to the manuals of the relevant software package.
*3. RT ToolBox3 mini (simplified version) will be installed if iQ Works product ID is used. When RT ToolBox3 (with simulation function) is required, please purchase RT ToolBox3 product ID.
|
Type
|
Model
|
Outline
|
|
CW Workbench
|
Engineering tool for C Controller module
|
|
|
Additional license for R12CCPU-V, RD55UP06-V
|
||
|
Update license for R12CCPU-V, RD55UP06-V
|
||
|
CW-Sim
|
VxWorks® simulation environment for CW Workbench, additional license
|
|
|
VxWorks® simulation environment for CW Workbench, standalone type
|
||
|
MELSOFT CW Configurator
|
Setting and monitoring tool for C Controller
|
|
|
MX MESInterface-R
|
MES Interface function configuration tool
|
|
|
MX OPC UA Module Configurator-R
|
OPC UA server module configuration tool
|
|
|
PX Developer monitor tool
|
Monitoring tool for process control
|
|
Model
|
Outline
|
|
|
Soldering type
|
||
|
40-pin connector
|
Crimp-contact type
|
|
|
Insulation-displacement (IDC) type
|
||
|
Soldering type (cable protrusion: straight or diagonal 45° angle)
|
||
|
Spring-clamp terminal block
|
For 18-point screw terminal block type, 0.3…1.5 mm2 (22…16 AWG)
|
|
|
Connector/terminal block conversion module
|
For positive common input modules and sink/source output modules (standard type)
|
|
|
For positive common input modules and sink/source output modules (2-wire type)
|
||
|
For positive common input modules (3-wire type)
|
||
|
Connector/terminal block conversion module cable
|
For A6TBXY36, A6TBXY54, and A6TBX70 (positive common/sink/source type), 0.5 m
|
|
|
For A6TBXY36, A6TBXY54, and A6TBX70 (positive common/sink/source type), 1 m
|
||
|
For A6TBXY36, A6TBXY54, and A6TBX70 (positive common/sink/source type), 2 m
|
||
|
For A6TBXY36, A6TBXY54, and A6TBX70 (positive common/sink/source type), 3 m
|
||
|
For A6TBXY36, A6TBXY54, and A6TBX70 (positive common/sink/source type), 5 m
|
||
|
Relay terminal module
|
For 40-pin connector 24 V DC transistor output modules (sink type)
|
|
|
Relay terminal module cable
|
For A6TE2-16SRN, (sink type) 0.6 m
|
|
|
For A6TE2-16SRN, (sink type) 1 m
|
||
|
For A6TE2-16SRN, (sink type) 3 m
|
||
|
For A6TE2-16SRN, (sink type) 5 m
|
||
|
For A6TE2-16SRN, (sink type) 10 m
|
สินค้าแน่ะนำ
F2-40BL Mitsubishi แบตเตอรี่ ลิเธียม PLC Lithium Battery for PLC
F2-40BL
PLC iQ-R Series; CPU, 40K steps, CC-Link IE
R04ENCPU
FX5;I/O Extension;DC;16 Inputs;16 Relay Outputs
FX5-32ER/DS
FX5U;CPU;DC;16 Inputs;16 Transistor Outputs;3xAnalog;Eth;RS-485;sink
FX5U-32MT/DS
PLC CC-LINK I/O Module; 16 inputs; 16 transistor outputs; e-CON connector; sink
AJ65VBTCE32-32DT
PLC CC-Link optical Spatial repeater and infrared transmission module B-type
AJ65BT-RPI-10B
Plastic Molded Parts for Programmable Controller(H) type FX5U-32MR/ES
FX5U-32Mx /ES/ESS COVER BOTTOM
Plastic Molded Parts for Programmable Controller(H) type FX5U-32MT/ESS
FX5U-32MT /ESS COVER MAIN
Plastic Molded Parts for Programmable Controller(H) type FX5U-32MT/ES
FX5U-32MT /ES COVER MAIN
Plastic Molded Parts for Programmable Controller(H) type FX5U-32MR/ES
FX5U-32MR /ES COVER MAIN
PLC CPU Module; iQ-F; AC; 36 Inputs 24 V DC; 24 Relay Outputs
FX5S-60MR/ES
