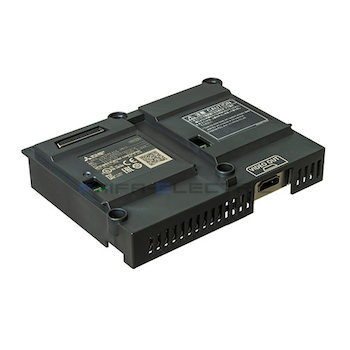

GT27-VHOUT, GOT2000 Series Digital Video Output Unit
GT27-VHOUT
อัตราค่าจัดส่ง
รายละเอียดสินค้า
HMI Option Module, HDMI Output, 1 Channel for GT27 (Excluding GT2705-VTBD)ข้อมูลสินค้า
GT27 model
| Model | Screen size | Display section Display color |
Panel color | Power | Remarks | |
|---|---|---|---|---|---|---|
| GT2715 | GT2715-XTBA | 15" XGA | TFT color 65536 colors |
Black | 100 to 240 V AC | Multimedia & Video/RGB compatible Multi-touch compatible |
| GT2715-XTBD | 24 V DC | |||||
| GT2712 | GT2712-STBA | 12.1" SVGA | Black | 100 to 240 V AC | ||
| GT2712-STBD | 24 V DC | |||||
| GT2712-STWA | White | 100 to 240 V AC | ||||
| GT2712-STWD *1 | 24 V DC | |||||
| GT2710 | GT2710-STBA | 10.4" SVGA | Black | 100 to 240 V AC | ||
| GT2710-STBD | 24 V DC | |||||
| GT2710-VTBA | 10.4" VGA | 100 to 240 V AC | ||||
| GT2710-VTBD | 24 V DC | |||||
| GT2710-VTWA | White | 100 to 240 V AC | ||||
| GT2710-VTWD *1 | 24 V DC | |||||
| GT2708 | GT2708-STBA | 8.4" SVGA | Black | 100 to 240 V AC | ||
| GT2708-STBD | 24 V DC | |||||
| GT2708-VTBA | 8.4" VGA | 100 to 240 V AC | ||||
| GT2708-VTBD | 24 V DC | |||||
| GT2705 | GT2705-VTBD | 5.7" VGA | Black | 24 V DC | Multi-touch compatible | |
- *1 To comply with the ATEX directive and KCs regulation, protective sheet (GT25-□□PSCC-UC) and special fitting (GT25-□□FIT-EXS) in the "Options" list are required separately. Communication units and option units cannot be used. When using these units, GOT does not conform to the standards. For the details, please refer to the Technical Bulletin
"GOT2000 Series in Compliance with the ATEX Directive and KCs Certification Requirements (GOT-A-0101-B) " (PDF).
- * For the status of conforming to various standards and laws (CE, ATEX, UL/cUL, Class I Division 2, EAC, KC, KCs, and maritime certifications [ABS/BV/DNV/LR/NK/RINA]), please refer to the "Standards and approved products".
GT25 model
| Model | Screen size | Display section Display color |
Panel color | Power | Remarks | |
|---|---|---|---|---|---|---|
| GT2512 | GT2512-STBA | 12.1" SVGA | TFT color 65536 colors |
Black | 100 to 240 V AC | - |
| GT2512-STBD | 24 V DC | |||||
| GT2512F-STNA | - | 100 to 240 V AC | Open frame model | |||
| GT2512F-STND | 24 V DC | |||||
| GT2510 | GT2510-VTBA | 10.4" VGA | Black | 100 to 240 V AC | - | |
| GT2510-VTBD | 24 V DC | |||||
| GT2510-VTWA | White | 100 to 240 V AC | ||||
| GT2510-VTWD | 24 V DC | |||||
| GT2510F-VTNA | - | 100 to 240 V AC | Open frame model | |||
| GT2510F-VTND | 24 V DC | |||||
| GT2508 | GT2508-VTBA | 8.4" VGA | Black | 100 to 240 V AC | - | |
| GT2508-VTBD | 24 V DC | |||||
| GT2508-VTWA | White | 100 to 240 V AC | ||||
| GT2508-VTWD | 24 V DC | |||||
| GT2508F-VTNA | - | 100 to 240 V AC | Open frame model | |||
| GT2508F-VTND | 24 V DC | |||||
| GT2505 | GT2505-VTBD | 5.7" VGA | Black | 24 V DC | - | |
- *1 To comply with the ATEX directive and KCs regulation, protective sheet (GT25-□□PSCC-UC) and special fitting (GT25-□□FIT-EXS) in the "Options" list are required separately. (Only protective sheet is required for GT2508-VTWD.) Communication units and option units cannot be used. When using these units, GOT does not conform to the standards. For the details, please refer to the Technical Bulletin
"GOT2000 Series in Compliance with the ATEX Directive and KCs Certification Requirements (GOT-A-0101-B) " (PDF).
- * For the status of conforming to various standards and laws (CE, ATEX, UL/cUL, Class I Division 2, EAC, KC, KCs, and maritime certifications [ABS/BV/DNV/LR/NK/RINA]), please refer to the "Standards and approved
GT25 wide model
| Model | Screen size | Display section Display color |
Panel color | Power | Remarks | |
|---|---|---|---|---|---|---|
| GT2512 | GT2512-WXTBD [NEW] | 12.1" WXGA | TFT color 65536 colors |
Black | 24 V DC | Wide model |
| GT2512-WXTSD [NEW] | Silver *1 | |||||
| GT2510 | GT2510-WXTBD | 10.1" WXGA | Black | |||
| GT2510-WXTSD | Silver *1 | |||||
| GT2507 | GT2507-WTBD | 7" WVGA | Black | |||
| GT2507-WTSD | Silver *1 | |||||
- *1 The lower part of the panel including the USB environmental protection cover is black.
- * For the status of conforming to various standards and laws (CE, ATEX, UL/cUL, Class I Division 2, EAC, KC, KCs, and maritime certifications [ABS/BV/DNV/LR/NK/RINA]), please refer to the "
GT25 Handy GOT
| Model | Screen size | Display section Display color |
Panel color | Power | Remarks | |
|---|---|---|---|---|---|---|
| GT2506 | GT2506HS-VTBD | 6.5" VGA | TFT color 65536 colors |
Black | 24 V DC | Handy GOT |
| GT2505 | GT2505HS-VTBD | 5.7" VGA | 24 V DC | |||
- * For the status of conforming to various standards and laws (CE, ATEX, UL/cUL, Class I Division 2, EAC, KC, KCs, and maritime certifications [ABS/BV/DNV/LR/NK/RINA]), please refer to the "Standards and approved products".
GT25 rugged model
| Model | Screen size | Display section Display color |
Panel color | Power | Remarks | |
|---|---|---|---|---|---|---|
| GT2507 | GT2507T-WTSD | 7" WVGA | TFT color 65536 colors |
Silver | 24 V DC | Rugged model |
- * For the status of conforming to various standards and laws (CE, ATEX, UL/cUL, Class I Division 2, EAC, KC, KCs, and maritime certifications [ABS/BV/DNV/LR/NK/RINA]), please refer to the "Standards and approved products".
GT23 model
| Model | Screen size | Display section Display color |
Panel color | Power | Remarks | |
|---|---|---|---|---|---|---|
| GT2310 | GT2310-VTBA [September 30, 2023 to be discontinued] |
10.4" VGA | TFT color 65536 colors |
Black | 100 to 240 V AC | - |
| GT2310-VTBD [September 30, 2023 to be discontinued] |
24 V DC | |||||
| GT2308 | GT2308-VTBA [September 30, 2023 to be discontinued] |
8.4" VGA | Black | 100 to 240 V AC | - | |
| GT2308-VTBD [September 30, 2023 to be discontinued] |
24 V DC | |||||
- * For the status of conforming to various standards and laws (CE, ATEX, UL/cUL, Class I Division 2, EAC, KC, KCs, and maritime certifications [ABS/BV/DNV/LR/NK/RINA]), please refer to the "Standards and approved products".
GT21 wide model
| Model | Screen size | Display section Display color |
Panel color | Power | Remarks | |
|---|---|---|---|---|---|---|
| GT2107 | GT2107-WTBD | 7" WVGA | TFT color 65536 colors |
Black | 24 V DC | Wide model |
| GT2107-WTSD | Silver *1 | |||||
- *1 The lower part of the panel including the USB environmental protection cover is black.
- * For the status of conforming to various standards and laws (CE, ATEX, UL/cUL, Class I Division 2, EAC, KC, KCs, and maritime certifications [ABS/BV/DNV/LR/NK/RINA]), please refer to the "Standards and approved products".
GT21 model
| Model | Screen size | Display section Display color |
Panel color | Power | Remarks | |
|---|---|---|---|---|---|---|
| GT2104 | GT2104-RTBD | 4.3" [480×272 dots] |
TFT color 65536 colors |
Black | 24 V DC | Ethernet, RS-422/485, RS-232 |
| GT2103 | GT2103-PMBD | 3.8" [320×128 dots] |
TFT Monochrome (black/white) 32 shade grayscale 5-color LED (white, green, pink, orange, red) |
Black | 24 V DC | Ethernet, RS-422/485 |
| GT2103-PMBDS | 24 V DC | RS-232, RS-422/485 | ||||
| GT2103-PMBDS2 | 24 V DC | RS-232 × 2 channels | ||||
| GT2103-PMBLS | 5 V DC | RS-422 (FXCPU connection only) | ||||
- * For the status of conforming to various standards and laws (CE, ATEX, UL/cUL, Class I Division 2, EAC, KC, KCs, and maritime certifications [ABS/BV/DNV/LR/NK/RINA]), please refer to the "Standards and approved products".
