EDR-120-48
EDR-120-48
EDR-120-48
EDR-120-48

EDR-120-48, DIN Rail Power Supply, 89%, 48V, 2.5A, 120W, Adjustable

EDR-120-48

Switching Power Supply
อัตราค่าจัดส่ง

รายละเอียดสินค้า

EDR-120-48, DIN Rail Power Supply, 89%, 48V, 2.5A, 120W, Adjustable

ข้อมูลสินค้า

EDR Series

AC-DC Industrial DIN rail power supply; 75~150W,Output 12~48V; metal case

EDR-150-24 MEAN WELL


EDR-75-24 : 75W Din Rail Single O/P 24V 3.2A Mean Well
EDR-120-48 : 120W Din Rail Single O/P 48V 2.5A Mean Well
EDR-75-12 : DIN Rail 75W O/P 12V 6.3A Mean Well
EDR-120-24 : 120W Din Rail Single O/P 24V 5A Mean Well
EDR-120-12 : 120W Din Rail Single O/P 12V 10A Mean Well
EDR-75-48 : 75W Din Rail Single O/P 48V 1.5A Mean Well
EDR-150-24 : 150W Din Rail Single O/P 24V 6.5A Mean Well



EDR-150-24 MEAN WELL

EDR-120 Series

DIN Rail Power Supplies by MEAN WELL

EDR-150-24 MEAN WELL

EDR-150 Series

DIN Rail Power Supplies by MEAN WELL

EDR-150-24 MEAN WELL

EDR-75 Series

DIN Rail Power Supplies by MEAN WELL

Wattage 75 75 75
Input Voltage 90 - 264VAC 127-370 VDC (DC input operation possible by connecting AC/L(+), AC/N(-)) 90 - 264VAC 127-370 VDC (DC input operation possible by connecting AC/L(+), AC/N(-)) 90 - 264VAC 127-370 VDC (DC input operation possible by connecting AC/L(+), AC/N(-))
Output Current 0 - 6.3 3.2 1.6
Output Voltage 12 24 48
Output Voltage Options Single Single Single
DC output adjustment 12-14VDC 24-28VDC 48-55V
Dimensions 32x125.2x102 32x125.2x102 32x125.2x102
Working Temperature -20~+60°C (refer to output derating curve)
Safety Standards UL508, TUV EN60950-1 approved
EMC Standards Complience to EN55022 (CISPR22), EN61204-3 Class B, EN61000-3-2,-3 Complience to EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-2 (EN50082-2), EN61204-3, Heavy industry level, criteria A



Wattage 120 120 120
Input Voltage 90~264VAC 90~264VAC 90~264VAC
Output Current 10A 5A 2.5A
Output Voltage 12V 24V 48V
Output Voltage Options 12~14V 24~28V 48~55V
Dimensions 40*125.2*113.5mm 40*125.2*113.5mm 40*125.2*113.5mm
Working Temperature -20~65°C
Safety Standards UL508, TUV EN62368-1, EAC TP TC 004, BSMI CNS14336-1approved;(meet EN60204-1)
EMC Standards Compliance to EN55032 (CISPR32) Class A, EN6...-3-2,-3, EAC TP TC 020, CNS13438 Class A

  EDR-150-24
Wattage 150
Input Voltage 90-264VAC
Output Current 6.5A
Output Voltage 24
Output Voltage Options Single
DC output adjustment 24-28V
Dimensions 40x 125.2x 113.5
Working Temperature -20-+60°C
Safety Standards UL508, TUV EN60950-1 approved; (meet EN60204-1)
EMC Standards Compliance to EN55032 (CISPR32) Class A, EN61000-3-2,Class A EN61000-3-2, Class A (<80% Load) EN61000-3-3 Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-2 (EN50082-2), Heavy industry level, criteria A



สินค้าแน่ะนำ

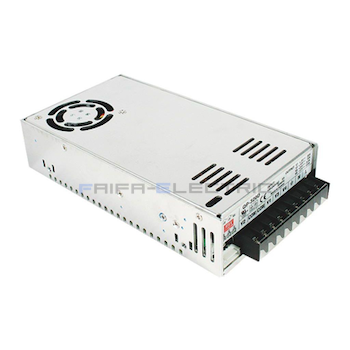

QP-230D
