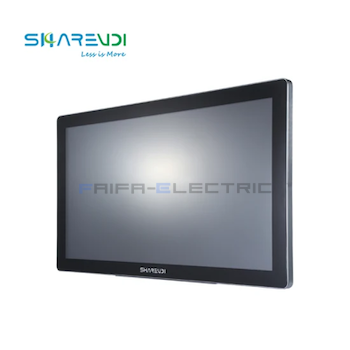

15.6" Industrial PanelPCwith Intel® Core i3/i5/i7 Processor
Features
- 15.6’’ LED display with 10-point touch screen
- Industrial rugged design with IP-65 protection
- Intel core i3/i5/i7 processor
- 2 Ethernet/2 RS232&RS485/4USB ports
- Support wide voltage 12- 64V power supply
- Support 4G LTE module,mini PCIE / M.2 expansion
- Installation methods VESA / Stand / Embedded
- Support WIN10/WIN11,Windows IoT,Linux OS
Introduction
A15 is a Fanless rugged designed panel PC with 15.6 inch HD capacitive touch screen.The housing adopt full IP65 rating panel for front and back protection against dust&water,and with multiple installation methods available,includes VESA Mounting,Embedded and stand. A10 comes with 2 Ethernet, 2-4 Serial RS232/RS485s, 2-6 USB ports and 12V/24/48V power supply, which makes it ideal for industrial automation,EMS,KIOSK,Self-Service terminal etc.
Specifications
|
Part No. |
|
A15-5500 |
|
System |
CPU |
Intel®Core® I7-5500U(Optional:Intel Core I3/I5 processor) |
|
Frequency |
2.3GHz~2.9GHz |
|
|
Cache |
3MB Intel Smart Cache |
|
|
Memory |
2*SO-DIMMslot(supportsingle-channel 1600/1333MHz DDR3L/1.35V internal memory ，max support 16GB) |
|
|
Storage |
1*M.2 M-Key 2280 SATA SSD 1*mSATA3.0 interface |
|
|
Network |
1000Mbps self-adaption RTL 8111H |
|
|
I/O |
2~4x RS232/RS485(Upgradable) 2~6 x USB(Upgradable) 1xHDMI 2 x RJ45 Gigabit LAN 1 x VGA |
|
|
Extenable Port |
2 x COM; 1 x Phoenix terminal(Support 12-36V Power Supply) |
|
|
Graphics |
Intel®HD Graphics 5500 |
|
|
Physical Characteristics |
Dimensions |
391x 276 x 51 mm |
|
Weight(Net)OS |
4.2kg |
|
|
OSSupport |
Support |
Windows (expect for XP) and Linux |
|
PowerConsumption |
Working Voltage |
DC 12V ~ 5A |
|
TDP |
15W |
|
|
LCD |
Display Type |
LCD Module, a-Si TFT-LCD |
|
Max. Resolution |
1920x 1080p |
|
|
Viewing Angle |
89 (left), 89 (right), 89(up), 89 (down) |
|
|
Luminance (cd/m2) |
350 |
|
|
Contrast Ratio |
1000:1 |
|
|
Aspect Ratio |
16:9 |
|
|
Touchscreen |
Touch Type |
Capacitive Touch |
|
Multi-touch |
Supports up to 10 points |
|
|
Touch Accuracy |
2-2.5mm |
|
|
Response Time |
< 10ms |
|
|
Environment |
Operating Temperature |
0 ~ 60°C |
|
Storage Temperature |
-20 ~ 75 °C |
|
|
Relative Humidity |
0 ~ 95% (No Condensation) |
|
|
Certification |
CE, FCC, ROHS, ISO |
|
|
Front Panel Protection |
IP65 |
