1606-XLS240E

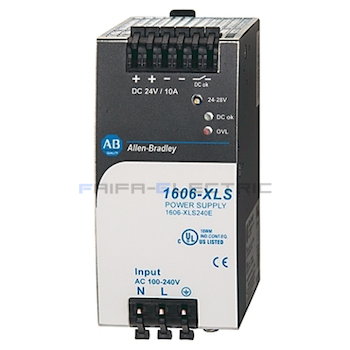

Allen-Bradley 1606-XLS240E Power Supply, Performance, 240W, 24 - 28VDC, 1-Phase

1606-XLS240E

Switching Power Supply
อัตราค่าจัดส่ง

รายละเอียดสินค้า

Technical Specifications

Electrical

Nominal value output voltage 1 24 V
Secondary voltage adjustable Yes
Power output 240 W
Voltage type of supply voltage AC/DC
Rated supply voltage at DC 110 V
Derating 6 W/°C
DC OK relay contact Yes
Input inrush current limiter Active
Output voltage 24...28V DC
Power factor 0.92 typical
Operational range 88...188V DC
Reserve power (typ. 4 s) 15 A, 24V DC
Rated output current 9 A, 28V DC
External input fuse, min B-6 A or C-4 A
Power losses 16.7 W typical
Sub group Performance family
Hold-up time 27 ms
Efficiency 93.5% typical
Input inrush current 4 A/7 A
Input voltage 100...240V @ AC, 47...63 Hz
Rated input current 2.8 A, 100V AC
Special feature Active PFC, Class 1 division 2, semi F47, 9) ABS/GL/RINA (marine)
Output voltage stabilized Yes
Rail mounting possible Yes
Stabilized Yes

Mechanical

Height 124 mm
Depth 117 mm
Direct mounting possible No
Width 60 mm
Degree of protection (IP) IP20
Type of electric connection Spring clamp connection
Special functions No special function
MTBF 581 kh (40 °C, SN29500)
Wall mounting possible Yes
Degree of protection (NEMA) Other

Environmental

Ripple and noise, max 50 mV
Operating temperature -25 °C
Lifetime, min 71 kh (+40 °C)
Non-operating temperature range -40 to 85 °C

Construction

Weight 900 g
