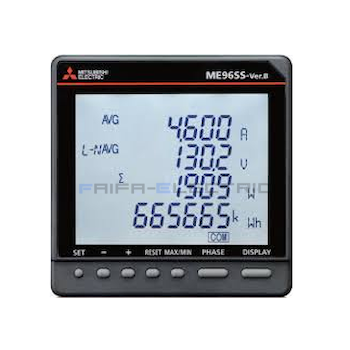

Multi-Measuring Instrument;Standard model;4 digits x 3 lines; 6 digits x 1 lines

ME96SSRB-MB

Power Meter
อัตราค่าจัดส่ง

รายละเอียดสินค้า

Transmission

MODBUS RTU communication
Plug-in module (options)
• Analog/Pulse/Contact output/input
• CC-Link communication
• Digital input/output (for MODBUS RTU communication)
• Backup (on SD card)
• MODBUS TCP communication

Main items measured

A, DA, V = ±0.2%
Hz = ±0.1%
W, var, VA, PF = ±0.5%
VAh = ±2.0%
Wh = class 0.5S (IEC62053-22)
varh = class 1S (IEC62053-24)
Harmonics = 19th-deg (max)
Rolling demand = W, var, VA

ข้อมูลสินค้า


Model name
Transmission/Option specifications
Main measurement items
ME96SSHB-MB
(High-performance model)
MODBUS RTU communication
Plug-in module (options)
• Analog/Pulse/Contact output/input
• CC-Link communication
• Digital input/output (for MODBUS RTU communication)
• Backup (on SD card)
• MODBUS TCP communication
    A, DA, V, Hz = ±0.1% W, var, VA, PF = ±0.2% VAh = ±2.0%
    Wh = class 0.5S (IEC62053-22)
    varh = class 1S (IEC62053-24) Harmonics = 31st-deg (max) Rolling demand = W, var, VA
    ME96SSRB-MB
    (Standard model)
    MODBUS RTU communication
    Plug-in module (options)
    • Analog/Pulse/Contact output/input
    • CC-Link communication
    • Digital input/output (for MODBUS RTU communication)
    • Backup (on SD card)
    • MODBUS TCP communication
      A, DA, V = ±0.2% Hz = ±0.1%
      W, var, VA, PF = ±0.5% VAh = ±2.0%
      Wh = class 0.5S (IEC62053-22)
      varh = class 1S (IEC62053-24) Harmonics = 19th-deg (max) Rolling demand = W, var, VA

      A, DA, V = ±0.5%

      Hz = ±0.2%
      ME96SSEB-MB
      (Economy model)
      MODBUS RTU communication
      W, var, VA, PF = ±0.5% VAh = ±2.0%
      Wh = class 0.5S (IEC62053-22)

      varh = class 1S (IEC62053-24)

      Harmonics = Only total



      Model name
      Analog output
      Pulse/Alarm output
      Contact input
      Contact output
      Transmission function
      Used with
      ME-4210-SS96B
      4
      2
      1
      ME96SSHB-MB ME96SSRB-MB
      ME-0040C-SS96
      4
      CC-Link
      ME-0052-SS96
      5
      2
      ME-0000BU-SS96
      SD CARD
      ME-0000MT-SS96
      MODBUS TCP
      Optional Plug-in Modules
