TC903-3A2L
TC903-3A2L
TC903-3A2L

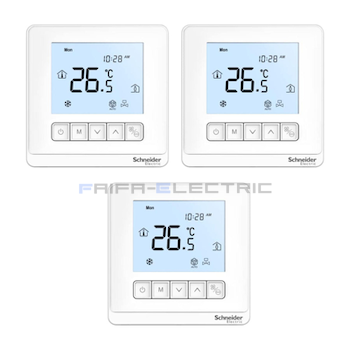

Thermostat, Spacelogic, fan coil on/off, standalone, LCD 5 Button, 2P, 3 fan, 240V, white

TC903-3A2L

อัตราค่าจัดส่ง

รายละเอียดสินค้า

  • Spacelogic TC900 Series fan coil thermostats are optimized for office building, hotel, hospital and residential applications.

  • The thermostats can be used for 2 pipe or 4 pipe application to control HVAC applications.

  • TC900 series products are easy to operate and install, provides a microprocessor based control and large LCD display.

  • Display operation status (cooling, heating, and ventilation), fan speed, room temperature and set-point alongwith other features.

  • Features such as Eco button, sleep mode etc designed to maximise energy savings

  • White glass housing with mechnical button and large LCD display for better visibility

  • Products are designed for standard BS wall box installation

  • TC900 series thermostats are CE, RCM, UKCA, and EAC certified

  • The products and designed for easy installation and operation

  • Standalone thermostat to display and control fan coil based HVAC applications

  • Information Displayed: Ambient room temperature 0 to 50 Deg.C, Time, Day, Temperature alarm, Communication status ok, Current program

  • Measurement Accuracy: +/- 1 Deg.C

Main
Range SpaceLogic
Product name SpaceLogic TC900
Device short name TC903
Product or component type Thermostat
Sensor type 100 kOhm NTC thermistor
Complementary
Device application Fan
Product specific application 2-pipe system
[Us] rated supply voltage 90...240 V AC 50/60 Hz
Network frequency 50 Hz
60 Hz
Max power consumption in W 1 W
Communication port protocol -
Function available Setpoint adjustment
Fan control
Mode selection
Economiser
Disable functions
Alarm
Low temperature protection
Colour White
Housing colour White
Control type Mechanical, for thermostat
2 positions ON-OFF button, for actuator
3 speed control relay, for fan
display type Backlit LCD screen
information displayed Ambient room temperature 0 to 50 °C
Time
Day
Temperature alarm
Communication status ok
Current program
Measurement accuracy Temperature: +/- 1 °C,
Output voltage 240 V AC 5 A for relay
240 V AC 2 A for load
Connections - terminals Screw terminal (back) - 2 cable(s) 1.5 mm²
Screw terminal (back) - 1 cable(s) 2.5 mm²
Width 86 mm
Depth 40 mm
height 86 mm
Market segment Small buildings
Hotel
Healthcare
Residential
Environment
Temperature setting range 5…35 °C
Relative humidity 5…95 %
Ambient air temperature for operation 0…50 °C
Standards EN/IEC 60730-1
EN/IEC 60730-2-9
Product certifications CE
IP degree of protection IP20
Pollution degree 2
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 5.5 cm
Package 1 Width 10.5 cm
Package 1 Length 12.3 cm
Package 1 Weight 220.0 g
Unit Type of Package 2 S03
Number of Units in Package 2 36
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 9.42 kg
Unit Type of Package 3 P12
Number of Units in Package 3 864
Package 3 Height 105.0 cm
Package 3 Width 80.0 cm
Package 3 Length 120.0 cm
Package 3 Weight 241.08 kg

ข้อมูลสินค้า

สินค้าแน่ะนำ

TC903-3A2L
Thermostat, Spacelogic, fan coil on/off, standalone, LCD 5 Button, 2P, 3 fan, 240V, white TC903-3A2L

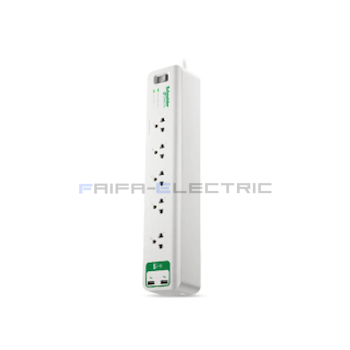

PMS53-TH
