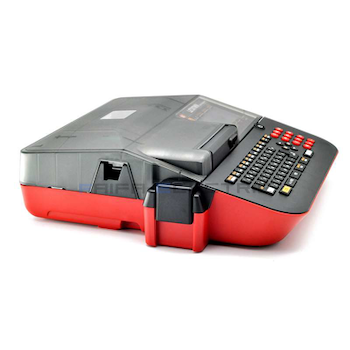

เครื่องพิมพ์ปลอกสายไฟ LM-550A2B/PC Rechargeable Battery model
LM-550A2B/PC
อัตราค่าจัดส่ง
รายละเอียดสินค้า
|
Dimensions
|
3.7”(H) x 11.61”(W) x 11.54”(L) mm
|
|
Weight
|
5.3 lbs
|
|
Printing Method
|
Thermal Transfer Method (300dpi)
|
|
Display
|
LCD Dot Matrix: 64×160 pixel (Backlit)
|
|
Printing Speed
|
40 mm / sec (Standard) 20mm / sec
(Low-temperature Mode) |
|
Maximum Printing Length
|
Tube: 100m; Tape: 5m
By multiple copy printing, maximum 30 copies up to – Tube: 100m; Tape: 7m |
|
Maximum Output
|
5000 Characters / File Characters
|
|
Character Size
|
1.3, 2, 3, 4, 6 mm Height
|
|
Usable Tube
|
Ø1.5 to 8 mm (PVC Tube)
Ø2 to 6.5 mm (Heat Shrink Tube) (For Grip Tube φ1.5 – 2.0mm tubes, the dedicated attachment is required.) |
|
Usable Tape
|
Width 5, 9, 12 mm (MAX Genuine Tape)
|
|
Tube Cutting Method
|
Auto Half Cut, Manual Full Cut
|
|
Internal Memory
|
250,000 characters (Maximum 50 files)
|
|
External Memory
|
USB Memory
|
|
Interface
|
USB 2.0 Full Speed
|
|
Power Supply
|
DC12V, 4.2A Use only specified AC Adapter
(100V – 240V) / 4 AA batteries |
|
Power Consumption
|
Max 40W
|
|
Operating Environment
|
10 to 35°C
|
ข้อมูลสินค้า
 |
LM-550A2 is an advanced printing solution that makes wire marking faster and easier.The LETATWIN is a high speed portable printing machine that supports many different print materials. Enhanced by Max Company's custom designed software (LETATWIN PC EDITOR) the LM-550A2 system provides a wide range of data entry possiblities. Connect to a computer and print directly to the machine, or save marker data to the machine's large internal memory and take it with you to your site. The durable, shock-resistant rubber key board provides also provides peace of mind when taking this printer to your job site. |
PRINTER SPECIFICATIONS
| Product Name | LM-550A2 |
|---|---|
| Dimensions | 295mm(W) x 293mm(D) X 94mm (H) |
| Weight | 2.3kg |
| Printing Technology | Thermal Transfer Printer (300 dpi) |
| Color Display | LCD dot matrix : 64x160 pixel (backlit) |
| Printing Speed | 40mm/s (Standard) 20mm/s(low temperature mode) |
| Maximum Printing Length | Ferrule (Tube):20m, Tape: 5m when printing multiple copies up to 30 Ferrule (Tube): 100m, Tape: 7m |
| Maximum output characters | 5,000 characters per file |
| Character Size (Heights) | 1.3, 2, 3, 4, 6mm |
| Suppoted Tube Sizes | ⌀1.5mm ~ 8.0mm (PVC tube) (for ⌀ 1.5~2.0mm tubes, the dedicated attachment (standard acessory) is required 2.0mm~6.5mm (Heat Shrink tube) |
| Supported Tape sizes | Width 5, 9, 12mm (Max genuine tape) |
| Ferrule (PVC Tube) Cutting Method | Auto half-cut, manual full-cut |
| Internal Memory | 250,000 characters (Maximum 50 files) |
| External Memory | USB memory |
| Interface | USB 2.0 full speed |
| Power Supply | DC12V, 3.0A (only use 100V~200V adapter included in package) |
| Power Consumption | Max 36W |
| Operating Environment | 10℃ to 35℃ |
