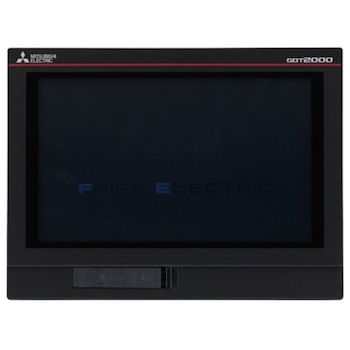

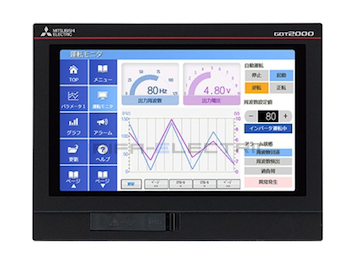

Mitsubishi GT21 Series GOT2000 Touch Screen HMI 7 in LCD 800 x 480pixels Black
GT2107-WTBD
อัตราค่าจัดส่ง
รายละเอียดสินค้า
Expands possibilities of GT21 models
Compact body with basic functions and high resolution LCD.
The GOT wide model satisfies your needs in various applications.
Feature
The highest resolution screen in the GT21 models, with various built-in interfaces
The GOT2000 wide models are available in a choice of silver and black. In addition to the high resolution display, 65536 colors of LCD improves quality of screen display.
The first GT21 model with the USB host enables you to connect a USB mouse and keyboard, or transfer data using a USB memory.In addition, Ethernet printers can be used.
- High resolution WVGA:
800 × 480 dots
- Ethernet, USB host (USB-A)
equipped as standard
- Support VNC server
function
- Support outline font and
antialiasing
| Item | Specifications |
|---|---|
| GT2107-WTBD GT2107-WTSD |
|
| Display | 7" widescreen, TFT color LCD, 65536 colors |
| Resolution | WVGA 800 × 480 dots |
| Backlight | White LED |
| User memory | Memory for storage (ROM): 15 MB |
| Standard interface | Ethernet, RS-232, RS-422/485 USB host (USB-A): 1 channel (USB 1.1 (Full-Speed 12 Mbps)) USB device (USB Mini-B): 1 channel (USB 1.1 (Full-Speed 12 Mbps)) SD memory card interface |
| Model name | GT2107-WTBD |
| Overview | 7” Wide, WVGA, TFT color LCD 65536 colors, Panel color: Black, Power supply voltage: 24 V DC |
| Conformance standard | UL cUL CE(EMC) CE(RoHS) KC |
ข้อมูลสินค้า
GT27 model
| Model | Screen size | Display section Display color |
Panel color | Power | Remarks | |
|---|---|---|---|---|---|---|
| GT2715 | GT2715-XTBA | 15" XGA | TFT color 65536 colors |
Black | 100 to 240 V AC | Multimedia & Video/RGB compatible Multi-touch compatible |
| GT2715-XTBD | 24 V DC | |||||
| GT2712 | GT2712-STBA | 12.1" SVGA | Black | 100 to 240 V AC | ||
| GT2712-STBD | 24 V DC | |||||
| GT2712-STWA | White | 100 to 240 V AC | ||||
| GT2712-STWD *1 | 24 V DC | |||||
| GT2710 | GT2710-STBA | 10.4" SVGA | Black | 100 to 240 V AC | ||
| GT2710-STBD | 24 V DC | |||||
| GT2710-VTBA | 10.4" VGA | 100 to 240 V AC | ||||
| GT2710-VTBD | 24 V DC | |||||
| GT2710-VTWA | White | 100 to 240 V AC | ||||
| GT2710-VTWD *1 | 24 V DC | |||||
| GT2708 | GT2708-STBA | 8.4" SVGA | Black | 100 to 240 V AC | ||
| GT2708-STBD | 24 V DC | |||||
| GT2708-VTBA | 8.4" VGA | 100 to 240 V AC | ||||
| GT2708-VTBD | 24 V DC | |||||
| GT2705 | GT2705-VTBD | 5.7" VGA | Black | 24 V DC | Multi-touch compatible | |
- *1 To comply with the ATEX directive and KCs regulation, protective sheet (GT25-□□PSCC-UC) and special fitting (GT25-□□FIT-EXS) in the "Options" list are required separately. Communication units and option units cannot be used. When using these units, GOT does not conform to the standards. For the details, please refer to the Technical Bulletin
"GOT2000 Series in Compliance with the ATEX Directive and KCs Certification Requirements (GOT-A-0101-B) " (PDF).
- * For the status of conforming to various standards and laws (CE, ATEX, UL/cUL, Class I Division 2, EAC, KC, KCs, and maritime certifications [ABS/BV/DNV/LR/NK/RINA]), please refer to the "Standards and approved products".
GT25 model
| Model | Screen size | Display section Display color |
Panel color | Power | Remarks | |
|---|---|---|---|---|---|---|
| GT2512 | GT2512-STBA | 12.1" SVGA | TFT color 65536 colors |
Black | 100 to 240 V AC | - |
| GT2512-STBD | 24 V DC | |||||
| GT2512F-STNA | - | 100 to 240 V AC | Open frame model | |||
| GT2512F-STND | 24 V DC | |||||
| GT2510 | GT2510-VTBA | 10.4" VGA | Black | 100 to 240 V AC | - | |
| GT2510-VTBD | 24 V DC | |||||
| GT2510-VTWA | White | 100 to 240 V AC | ||||
| GT2510-VTWD | 24 V DC | |||||
| GT2510F-VTNA | - | 100 to 240 V AC | Open frame model | |||
| GT2510F-VTND | 24 V DC | |||||
| GT2508 | GT2508-VTBA | 8.4" VGA | Black | 100 to 240 V AC | - | |
| GT2508-VTBD | 24 V DC | |||||
| GT2508-VTWA | White | 100 to 240 V AC | ||||
| GT2508-VTWD | 24 V DC | |||||
| GT2508F-VTNA | - | 100 to 240 V AC | Open frame model | |||
| GT2508F-VTND | 24 V DC | |||||
| GT2505 | GT2505-VTBD | 5.7" VGA | Black | 24 V DC | - | |
- *1 To comply with the ATEX directive and KCs regulation, protective sheet (GT25-□□PSCC-UC) and special fitting (GT25-□□FIT-EXS) in the "Options" list are required separately. (Only protective sheet is required for GT2508-VTWD.) Communication units and option units cannot be used. When using these units, GOT does not conform to the standards. For the details, please refer to the Technical Bulletin
"GOT2000 Series in Compliance with the ATEX Directive and KCs Certification Requirements (GOT-A-0101-B) " (PDF).
- * For the status of conforming to various standards and laws (CE, ATEX, UL/cUL, Class I Division 2, EAC, KC, KCs, and maritime certifications [ABS/BV/DNV/LR/NK/RINA]), please refer to the "Standards and approved
GT25 wide model
| Model | Screen size | Display section Display color |
Panel color | Power | Remarks | |
|---|---|---|---|---|---|---|
| GT2512 | GT2512-WXTBD [NEW] | 12.1" WXGA | TFT color 65536 colors |
Black | 24 V DC | Wide model |
| GT2512-WXTSD [NEW] | Silver *1 | |||||
| GT2510 | GT2510-WXTBD | 10.1" WXGA | Black | |||
| GT2510-WXTSD | Silver *1 | |||||
| GT2507 | GT2507-WTBD | 7" WVGA | Black | |||
| GT2507-WTSD | Silver *1 | |||||
- *1 The lower part of the panel including the USB environmental protection cover is black.
- * For the status of conforming to various standards and laws (CE, ATEX, UL/cUL, Class I Division 2, EAC, KC, KCs, and maritime certifications [ABS/BV/DNV/LR/NK/RINA]), please refer to the "
GT25 Handy GOT
| Model | Screen size | Display section Display color |
Panel color | Power | Remarks | |
|---|---|---|---|---|---|---|
| GT2506 | GT2506HS-VTBD | 6.5" VGA | TFT color 65536 colors |
Black | 24 V DC | Handy GOT |
| GT2505 | GT2505HS-VTBD | 5.7" VGA | 24 V DC | |||
- * For the status of conforming to various standards and laws (CE, ATEX, UL/cUL, Class I Division 2, EAC, KC, KCs, and maritime certifications [ABS/BV/DNV/LR/NK/RINA]), please refer to the "Standards and approved products".
GT25 rugged model
| Model | Screen size | Display section Display color |
Panel color | Power | Remarks | |
|---|---|---|---|---|---|---|
| GT2507 | GT2507T-WTSD | 7" WVGA | TFT color 65536 colors |
Silver | 24 V DC | Rugged model |
- * For the status of conforming to various standards and laws (CE, ATEX, UL/cUL, Class I Division 2, EAC, KC, KCs, and maritime certifications [ABS/BV/DNV/LR/NK/RINA]), please refer to the "Standards and approved products".
GT23 model
| Model | Screen size | Display section Display color |
Panel color | Power | Remarks | |
|---|---|---|---|---|---|---|
| GT2310 | GT2310-VTBA [September 30, 2023 to be discontinued] |
10.4" VGA | TFT color 65536 colors |
Black | 100 to 240 V AC | - |
| GT2310-VTBD [September 30, 2023 to be discontinued] |
24 V DC | |||||
| GT2308 | GT2308-VTBA [September 30, 2023 to be discontinued] |
8.4" VGA | Black | 100 to 240 V AC | - | |
| GT2308-VTBD [September 30, 2023 to be discontinued] |
24 V DC | |||||
- * For the status of conforming to various standards and laws (CE, ATEX, UL/cUL, Class I Division 2, EAC, KC, KCs, and maritime certifications [ABS/BV/DNV/LR/NK/RINA]), please refer to the "Standards and approved products".
GT21 wide model
| Model | Screen size | Display section Display color |
Panel color | Power | Remarks | |
|---|---|---|---|---|---|---|
| GT2107 | GT2107-WTBD | 7" WVGA | TFT color 65536 colors |
Black | 24 V DC | Wide model |
| GT2107-WTSD | Silver *1 | |||||
- *1 The lower part of the panel including the USB environmental protection cover is black.
- * For the status of conforming to various standards and laws (CE, ATEX, UL/cUL, Class I Division 2, EAC, KC, KCs, and maritime certifications [ABS/BV/DNV/LR/NK/RINA]), please refer to the "Standards and approved products".
GT21 model
| Model | Screen size | Display section Display color |
Panel color | Power | Remarks | |
|---|---|---|---|---|---|---|
| GT2104 | GT2104-RTBD | 4.3" [480×272 dots] |
TFT color 65536 colors |
Black | 24 V DC | Ethernet, RS-422/485, RS-232 |
| GT2103 | GT2103-PMBD | 3.8" [320×128 dots] |
TFT Monochrome (black/white) 32 shade grayscale 5-color LED (white, green, pink, orange, red) |
Black | 24 V DC | Ethernet, RS-422/485 |
| GT2103-PMBDS | 24 V DC | RS-232, RS-422/485 | ||||
| GT2103-PMBDS2 | 24 V DC | RS-232 × 2 channels | ||||
| GT2103-PMBLS | 5 V DC | RS-422 (FXCPU connection only) | ||||
- * For the status of conforming to various standards and laws (CE, ATEX, UL/cUL, Class I Division 2, EAC, KC, KCs, and maritime certifications [ABS/BV/DNV/LR/NK/RINA]), please refer to the "Standards and approved products".
