0 XB2BT842C Emergency stop, Easy Harmony XB2, metal, red, mushroom 40mm, 22mm, push-pull, 1NC

คุณไม่มีสินค้าในตะกร้า โปรดเลือกหยิบสินค้าที่ต้องการซื้อลงตะกร้า

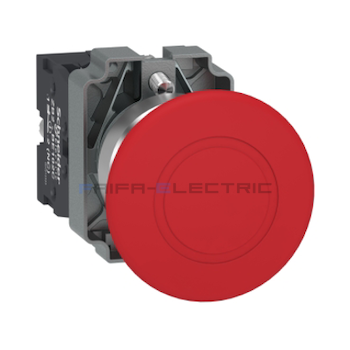

Emergency stop, Easy Harmony XB2, metal, red, mushroom 40mm, 22mm, push-pull, 1NC

XB2BT842C

แบรนด์ :

สอบถามสินค้า

อัตราค่าจัดส่ง

จำนวน / Quantity

รายละเอียดสินค้า

Main
Range of product	Easy Harmony XB2
Product or component type	Complete emergency stop push-button
Device presentation	Complete product
Device short name	XB2
Bezel material	Chromium plated metal
Fixing collar material	Zamak
Mounting diameter	22.5 mm
Head type	Mushroom
Sale per indivisible quantity	1

Main

Range of product

Easy Harmony XB2

Product or component type

Complete emergency stop push-button

Device presentation

Complete product

Device short name

XB2

Bezel material

Chromium plated metal

Fixing collar material

Zamak

Mounting diameter

22.5 mm

Head type

Mushroom

Sale per indivisible quantity

Complementary
Operating position	Any position
Device mounting	Fixing hole - diameter: 22.5 mm
Fixing center	>= 30 x 40 mm (1...6 mm thick panel) - thickness: 1…6 mm
Fixing mode	Fixing screw beneath head recommended torque: 0.8 N.m Fixing screw beneath head recommended torque: 1.0 N.m
Shape of signaling unit head	Round
Type of operator	push-pull
Reset	Push-pull
Operator profile	Red mushroom Ø 40 mm, unmarked
Terminals description ISO n°1	(11-12)NC
Cap/operator or lens colour	Red
Product compatibility	ZB2..C
Contacts type and composition	1 NC
Contact operation	Slow-break
Contacts usage	Standard contacts
Positive opening	With NC contact conforming to IEC 60947-5-1 appendix K
Operating travel	2.0 mm (NC changing electrical state) 4.6 mm (total travel)
Mechanical durability	300000 cycles
Connections - terminals	Screw clamp terminal, <= 2 x 1.5 mm² with and without cable ends Screw clamp terminal, <= 1 x 2.5 mm² with and without cable ends Screw clamp terminal, >= 1 x 0.5 mm² with and without cable ends Faston terminals, connection size: 6.3 mm
Tightening torque	0.8…1.0 N.m
Shape of screw head	Cross compatible with Philips no 1 screwdriver Cross compatible with pozidriv No 1 screwdriver Slotted compatible with flat Ø 4 mm screwdriver Slotted compatible with flat Ø 5.5 mm screwdriver
Contacts material	Silver alloy (Ag/Ni)
Short-circuit protection	10 A gL fuse type gG conforming to IEC 60947-5-1
[Ith] conventional free air thermal current	10 A conforming to IEC 60947-5-1
[Ui] rated insulation voltage	600 V (pollution degree 3) conforming to IEC 60947-1
[Uimp] rated impulse withstand voltage	6 kV conforming to IEC 60947-1
[Ie] rated operational current	3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1
Electrical durability	1000000 cycles, AC-15, 3 A at 240 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.27 A at 250 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
Electrical reliability	Λ < 10exp(-6) at 5 V, 1 mA in clean environment conforming to IEC 60947-5-4 Λ < 10exp(-8) at 17 V, 5 mA in clean environment conforming to IEC 60947-5-4
Height	40 mm
Width	40 mm
Depth	73.5 mm
Net weight	0.108 kg
customizable	No
Type of operator	Trigger action Mechanical latching

Complementary

Operating position

Any position

Device mounting

Fixing hole - diameter: 22.5 mm

Fixing center

>= 30 x 40 mm (1...6 mm thick panel) - thickness: 1…6 mm

Fixing mode

Fixing screw beneath head recommended torque: 0.8 N.m
Fixing screw beneath head recommended torque: 1.0 N.m

Shape of signaling unit head

Round

Type of operator

push-pull

Reset

Push-pull

Operator profile

Red mushroom Ø 40 mm, unmarked

Terminals description ISO n°1

(11-12)NC

Cap/operator or lens colour

Red

Product compatibility

ZB2..C

Contacts type and composition

1 NC

Contact operation

Slow-break

Contacts usage

Standard contacts

Positive opening

With NC contact conforming to IEC 60947-5-1 appendix K

Operating travel

2.0 mm (NC changing electrical state)
4.6 mm (total travel)

Mechanical durability

300000 cycles

Connections - terminals

Screw clamp terminal, <= 2 x 1.5 mm² with and without cable ends
Screw clamp terminal, <= 1 x 2.5 mm² with and without cable ends
Screw clamp terminal, >= 1 x 0.5 mm² with and without cable ends
Faston terminals, connection size: 6.3 mm

Tightening torque

0.8…1.0 N.m

Shape of screw head

Cross compatible with Philips no 1 screwdriver
Cross compatible with pozidriv No 1 screwdriver
Slotted compatible with flat Ø 4 mm screwdriver
Slotted compatible with flat Ø 5.5 mm screwdriver

Contacts material

Silver alloy (Ag/Ni)

Short-circuit protection

10 A gL fuse type gG conforming to IEC 60947-5-1

[Ith] conventional free air thermal current

10 A conforming to IEC 60947-5-1

[Ui] rated insulation voltage

600 V (pollution degree 3) conforming to IEC 60947-1

[Uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947-1

[Ie] rated operational current

3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1
0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1

Electrical durability

1000000 cycles, AC-15, 3 A at 240 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
1000000 cycles, DC-13, 0.27 A at 250 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C

Electrical reliability

Λ < 10exp(-6) at 5 V, 1 mA in clean environment conforming to IEC 60947-5-4
Λ < 10exp(-8) at 17 V, 5 mA in clean environment conforming to IEC 60947-5-4

Height

40 mm

Width

40 mm

Depth

73.5 mm

Net weight

0.108 kg

customizable

Type of operator

Trigger action
Mechanical latching

Environment
Protective treatment	TC/TH
Ambient air temperature for storage	-40…70 °C
Ambient air temperature for operation	-25…70 °C
Overvoltage category	Class I conforming to IEC 60536
Standards	IEC 60947-5-1 IEC 60947-5-4 IEC 60947-1 IEC 60947-5-5 GB/T 14048.1 GB/T 14048.5 GB/T 14048.14
Product certifications	CE CCC
Marking	Unmarked
IP degree of protection	IP65
IK degree of protection	IK06
Vibration resistance	5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
Shock resistance	30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Environment

Protective treatment

TC/TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-25…70 °C

Overvoltage category

Class I conforming to IEC 60536

Standards

IEC 60947-5-1
IEC 60947-5-4
IEC 60947-1
IEC 60947-5-5
GB/T 14048.1
GB/T 14048.5
GB/T 14048.14

Product certifications

CE
CCC

Marking

Unmarked

IP degree of protection

IP65

IK degree of protection

IK06

Vibration resistance

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	5.000 cm
Package 1 Width	7.500 cm
Package 1 Length	7.500 cm
Package 1 Weight	120.000 g
Unit Type of Package 2	S02
Number of Units in Package 2	30
Package 2 Height	15.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	4.075 kg

Packing Units

Unit Type of Package 1

PCE

Number of Units in Package 1

Package 1 Height

5.000 cm

Package 1 Width

7.500 cm

Package 1 Length

7.500 cm

Package 1 Weight

120.000 g
